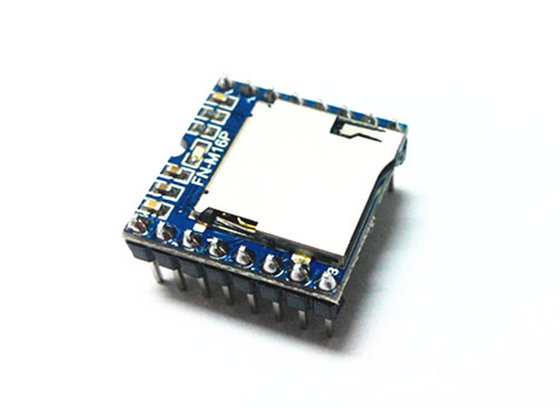

Mini Embedded MP3 Sound Module FN-M16P

Add to Basket Share to :

Supply Ability10,000 units per month
PortShenzhen
Delivery Lead Time5-15 days

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Flyron Technology Co., Ltd.
Membership Free member
Registration Date2015.03.24
Country/RegionChina
CityShenzhen
Contact Kevin Xu(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Kevin Xu

Flyron Technology Co., Ltd.

* Buying Product

Category : Other Consumer Electronics

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Model Number FN-M16P
- Place of Origin China
- Related Keywords mp3 sound module, mp3 module, mp3 audio modue, mp3 voice module

Description by Manufacturer

FN-M16P is a small and low price MP3 module with an simplified output directly to the speaker. The module can be used as a stand alone module with attached battery, speaker and push buttons or used in combination with an Arduino UNO or any other with RX/TX capabilities.

Features

1.Supports MP3 and WAV decoding.
2.Supports FAT16 and FAT32 file system.
3.24-bit DAC output and supports dynamic range 90dB and SNR 85dB.
4.Supports AD key control mode and UART RS232 serial control mode.
5.Supports maximum 32GB micro SD card and 32GB USB flash drive.
6.Supports maximum 3000 audio files under the root directory of the storage device.
7.Supports maximum 99 folders, and each folder can stores 255 audio files.
8.Supports inter-cut advertisements.
9.Supports random playback.
10.Built-in a 3 watts amplifier that can direct drive a 3 watts speaker.
11.30 levels adjustable volume, and 6 levels adjustable EQ.

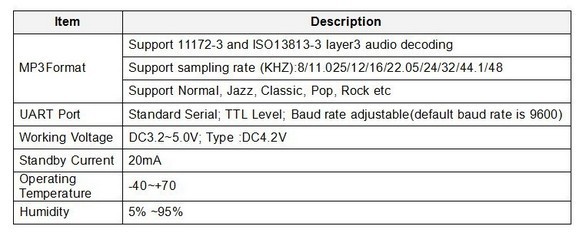

Technical Paremeters

Applications

1.Car navigation voice broadcast;

2.Road transport inspectors, toll stations voice prompts;

3.Railway station, bus safety inspection voice prompts;

4.Electricity, communications, financial business hall voice prompts;

5.Vehicle into and out of the channel verify that the voice prompts;

6.Public security border control channel voice prompts;

7.Multi-channel voice alarm or equipment operating guide voice;

8.Electric tourist car safe driving voice notices;

9.Electromechanical equipment failure alarm;

10.Fire alarm voice prompts;

11.Automatic broadcast equipment, regular broadcast;

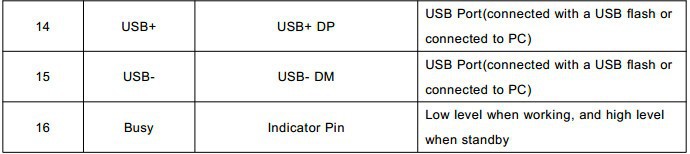

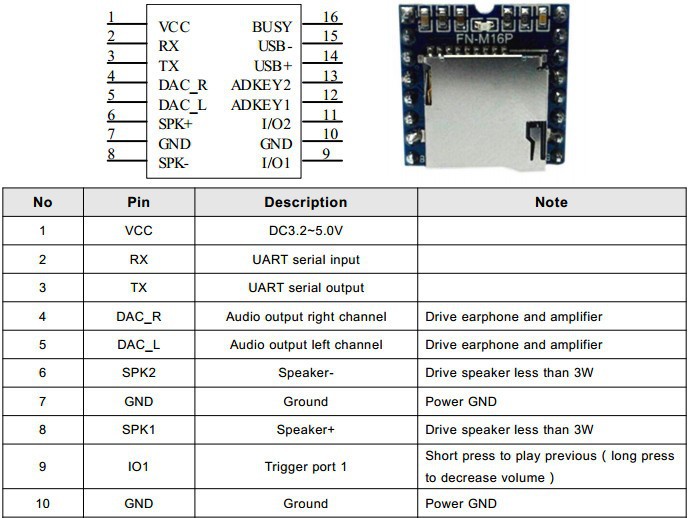

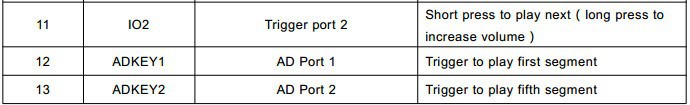

Pin Configuration

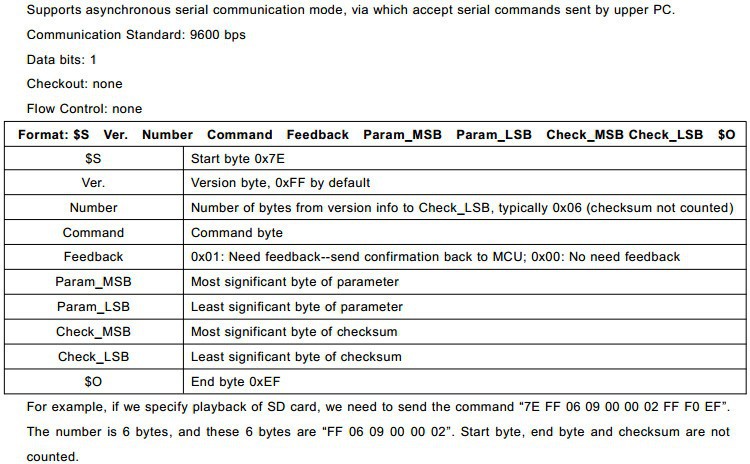

Serial Mode

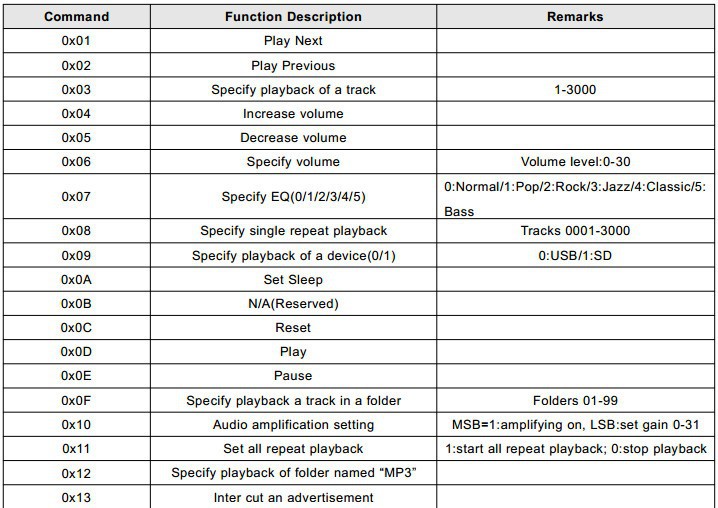

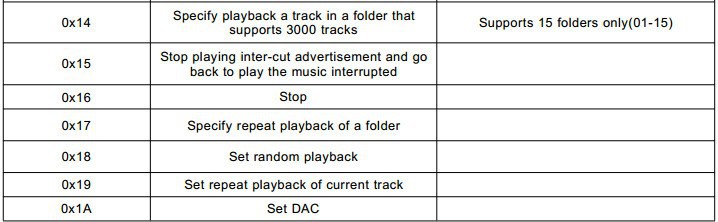

1). Serial Control Commands

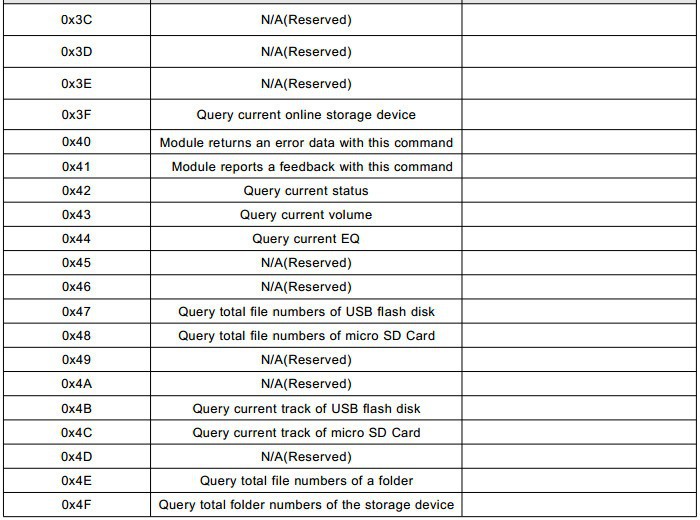

2). Serial Query Commands

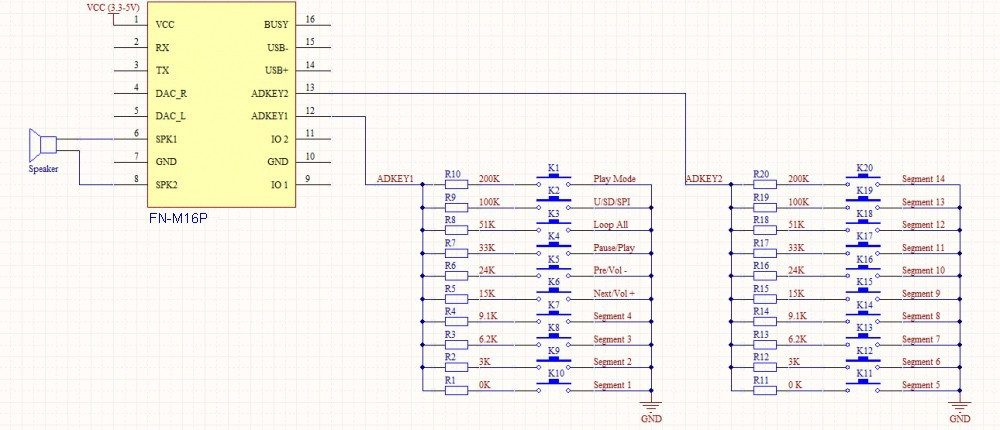

AD Key Mode

We use the AD module keys, instead of the traditional method of matrix keyboard connection, it is to take advantage of increasingly powerful MCU AD functionality, Our module default configuration 2 AD port, 20 key resistance distribution.

Refer Digram

1000px-Adkey_control(1)

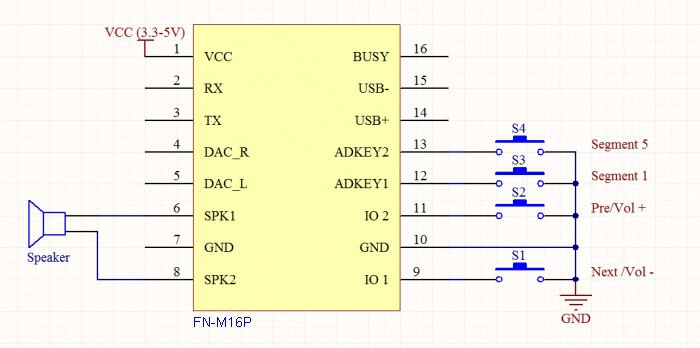

I/O Mode

Here comes the most simple way to use this module.

Refer Diagram

700px-Speaker2(1)

Note: Short press is for Preious/Next, and long press is for Vol-/Vol+

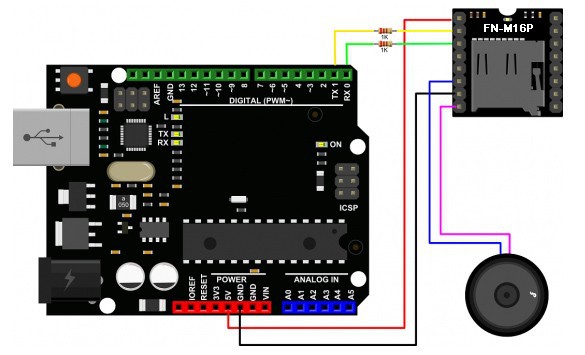

Connection Diagram with Arduino

Note: For simple use, the upper diagram is okay, but it would be better and more stable if you attach a 1K resistor to the TX pin.

Price

Price Condition FOB

Packaging & Shipping

- Packingstandard packing
- Delivery Lead Time5-15 days
- Minimum Order100
- Supply Ability10,000 units per month
- Delivery PortShenzhen

Product Image
