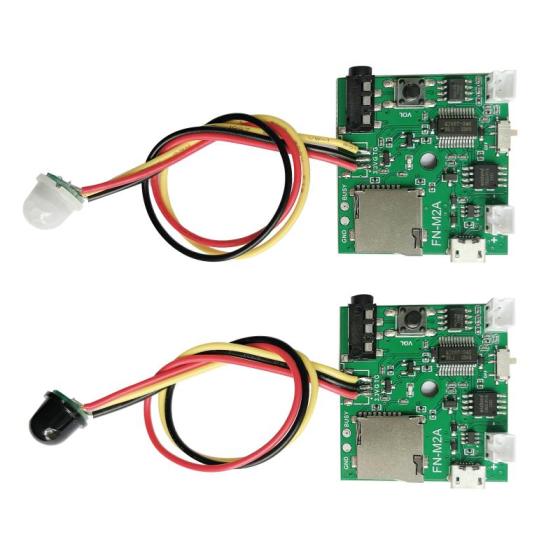

FN-M2A PIR Motion Sesnor Audio Player Module Talking Motion Sensor Module PCBA

Add to Basket Share to :

Supply Ability10000 pcs/month
Delivery Lead Time5-15 days
Payment Terms 3

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Flyron Technology Co., Ltd.
Membership Free member
Registration Date2015.03.24
Country/RegionChina
CityShenzhen
Contact Kevin Xu(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Kevin Xu

Flyron Technology Co., Ltd.

* Buying Product

Category : Other Consumer Electronics

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Flyrontech
- Model Number FN-M2A
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color Green
- Related Keywords motion activated audio player, motion sensor audio player

Description by Manufacturer

Features
1. Adopts a PIR motion sensor that can detect max. 3.5 meters distance.
2. When it detects a moving human body, the device automatically plays back a sound message.
3. Built-in 4MBytes flash memory and supports max. 32GB micro SD card as well.
4. Supports to store multiple audio files on the memory, and if there are multiple audio files it plays next track in order after each activation from the PIR.
5. Load audio files onto the flash memory through the micro USB port, which is connected with a computer.
6. The on-board flash memory or micro SD card works as a USB flash drive on computer.
7. Built-in 3 watts class D mono audio amplifier, and able to directly drive a 1-3 watts (4-8 ohms) speaker.
8. Adjustable 6-level volume through pressing the volume button repeatedly.
9. Equipped with a 3.5mm audio jack that is able to be connected with an external amplifier or active speaker.
10. Busy signal output available that is able to work with a relay to control other external equipment like LED light,motor, etc.
11. Design with low power consumption and suitable to supply power using a 3.7V rechargeable lithium battery or 3 x AA / 3 x AAA alkaline batteries.
12. Supports to supply power directly through the micro USB port as well using an phone charger (5V 1A power adapter).
13. Equipped with charging circuits and it is possible to charge the attached lithium battery through the micro USB port.
14. The length of the wire between the board and the PIR sensor is 18cm.
15. PCB size: 40mm x 37mm

Technical Parameters
1. Working voltage: 3.7-5V DC
2. Working current: ≤200mA
3. Standby current: ≤30uA
4. Power Consumption: ≤3W
5. On-board flash memory size: 4MBytes
6. Audio format: MP3 or WAV
7. Distance of PIR detection: ≤3.5 meters
8. Detection angle: 120 degrees

Introduction of Main Parts

Notes
1. When the device is playing a sound, the Busy port outputs a signal in high level 3.3V.
2. When the device is powered with a phone charger (5V 1A power adapter) through the micro USB port, the ON/OFF switch is ineffective.
