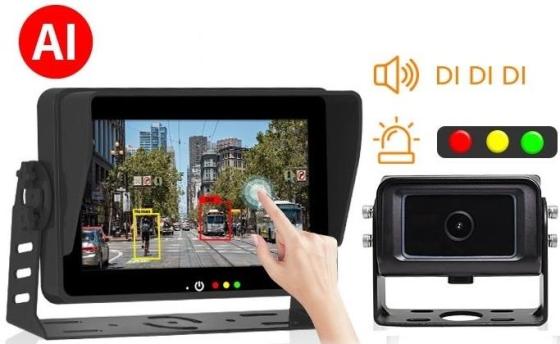

7 Inch AI Hybrid Quad Touch Screen DVR Monitor & Camera System

Add to Basket Share to :

Payment Terms 1

Inquire Now

* Send an Inquiry to this supplier.
* Date last updated : 2025.10.07

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name HS Moolsan Co., Ltd.
Membership TradeVerify
Registration Date2007.12.02
Country/RegionKorea
CityBucheon-city
Contact Wonklee(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name Tancredi
- Model Number HS-7M(AI)
- Place of Origin Korea
- Supply Type OEM Service
- Condition New
- Related Keywords Reversing Aid, AI Camera, Touch Screen Monitor, DVR Monitor, AI Monitor

Description by Manufacturer

Features

- HD Touch Monitor

- 7-inch Touch Monitor : Supports four video inputs, IPS display for true color

representation and fast response times

- Functions : Supports real-time recording and playback functions, with

screen brightness that automatically adjusts according to ambient light

- Hardware : Automotive-grade industrial DSP with built-in sound and light

safety warnings

- Operation : Fully touch-operated graphical menu for simple and easy use

- Voltage Protection : DC 8~32V wide range working voltage, load dump pulse voltage protection, external power supply polarity reverse protection, and constant current and voltage protection for LEDs to prevent misuse and ensure product longevity

Specification

DESCRIPTION	HS-7M(AI) HD Touchscreen Monitor
Color LCD Display	7- inch IPS Screen
Resolution	1,024 x (RGB) x 600 pixels
Video Input	4 Channels
Video Signal Input	CVBS / AHD720P / 1080P
Display Mode	1 / 2 / 3 / 4 – screen split
Color Format	PAL / NTSC (AUTO)
OSD Menu Function	Mirror / normal settings, reverse delay time, trigger priority, multi-language support
Sound and Light Indicator	●Red (danger), ●Yellow (reminder), ●Green (safe)
Brightness	Automatically adjusts based on ambient light
Brightness	600cd / m²
Contrast Ratio	800 : 1
Recording Function	Real-time recording (2GB per hour per channel)
Recording File Format	AVI
Recording Duration	Supports 16 - 512GB TF cards
Vibration Class	GB/T 2423.56-2018 standard (random 5G vibration)
Connector Socket	18 – core waterproof interface
Power Source	DC 11 ~32V
Surge and Load Protection	ISO167520-2 standard (24V system Us=174V, Si-4Ω, td=350ms)
Operating Temperature	-20° C to +70° C / -4F° to +158F°
Storage Temperature	-30° C to +80° C / -22F° to +176F°C
Dimensions (W x H x D)	210 x 143 x 84 mm
Weight	450 g

Features

- AI Human Shape Analysis Camera

- Intelligent Recognition: Based on cloud-based intelligent recognition algorithms,

it can learn and recognize specific human body movements.

- Application : Can accurately recognize humans in complex environments, primarily used for monitoring restricted areas for unauthorized entry or specific

body movements in designated areas, and sending warning signals to the relevant monitoring system.

- Image Distance Measurement : 2 meters (customizable within 0-5 meters).

- Hardware Specifications : 100° wide-angle, automotive-grade DSP, 2 million

high-definition pixels, IP69K waterproof rating, cold-resistant and waterproof signal tail cable

Connecting Cable

- Material : 4-core phosphor bronze aviation plug with dual-shielded connection

cable for good anti-interference

- Features : Low impedance, minimal signal transmission attenuation,

double injection-molded aviation plug tail cable for excellent tensile and

swing resistance

Specification

Description	M-200(AI) AI Camera
Image Sensor	1/2.9" Color C-MOS
Effective Pixels	1920(H) x 1080(V)
Horizontal Resolution	1080P
Detection Targets	Pedestrians/non-motorized vehicles
Viewing Angle	100°
Alert Zones	1-4 levels ( customizable)
Image Ranging	0-5 meters (customizable)
Alarm I/O	High level ( customizable)
Night Vision Mode	Full color star
S/N Ratio	48dB or more (AGC OFF)
Video Output	AHD 1080P
Waterproof	IP69K (Aluminum Die cast case)
Housing Material	Aluminum alloy
Vibration Resistance	5G (GB-T2423056-2006)
Body Interface	4-core aviation connector
Power Input Range	DC12V±10%
Operating Temperature	-20℃ ~ 60℃
Storage Temperature	-30℃ ~ 70℃
Weight	350g
Dimension	74(W) x 64(H) x 56(D)mm

Product Image

7 Inch AI Hybrid Quad Touch Screen DVR Monitor & Camera System

7 Inch AI Hybrid Quad Touch Screen DVR Monitor & Camera System 2

7 Inch AI Hybrid Quad Touch Screen DVR Monitor & Camera System 3

7 Inch AI Hybrid Quad Touch Screen DVR Monitor & Camera System 4

7 Inch AI Hybrid Quad Touch Screen DVR Monitor & Camera System 5
