API 13 5/8" 10000PSI Ram BOP Ram Block for FZ35-70

Add to Basket Share to :

Price

US$ 100 ~ 500

Min Order Quantity10 Piece
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Dongying Lake Petroleum Technology Co.,Ltd
Membership Free member
Registration Date2018.10.27
Country/RegionChina
CityDongying
Contact Grace Qi(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Grace Qi

Dongying Lake Petroleum Technology Co.,Ltd

* Buying Product

Category : Other Manufacturing & Processing Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Place of Origin China
- Related Keywords Ram BOP, BOP Ram, FZ35-70, 13 5/8 10000PSI

Description by Manufacturer

API 13 5/8" 10000PSI Ram BOP Ram Block for FZ35-70

Product Description

Brief Introduction

1.The pressure-bearing components are forged, so it has better strength and impact toughness;

2.Floating sealing is applied to the cylinder cover and the open/close of the cover is realized by hydraulic power, so it is quick and convenient for changing rams;

3.The auxiliary oil cylinder affords a smaller volume with same function; double ram Cameron U BOP

4.The ram rubber has massive storage volume, and it adopts self-contained sealing;

5.The standard configuration includes a manual locking device, which ensures the ram is closed tightly in case there is a hydraulic pressure loss;

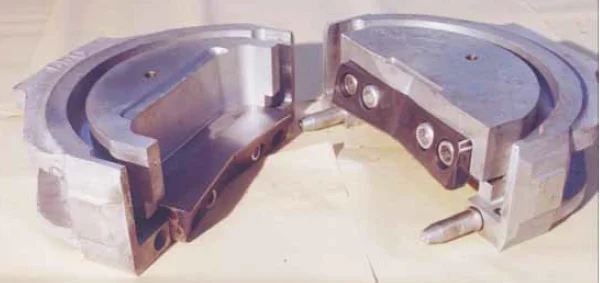

6.Both the manual and hydraulic locking device and the auxiliary oil cylinder can be installed flexibly into different positions according to customers' requirements, and the installation positions can be changed easily. API FZ35-70 Shear Ram Assembly Ram Block and Top Seal and Face Sealshear ram 1.png

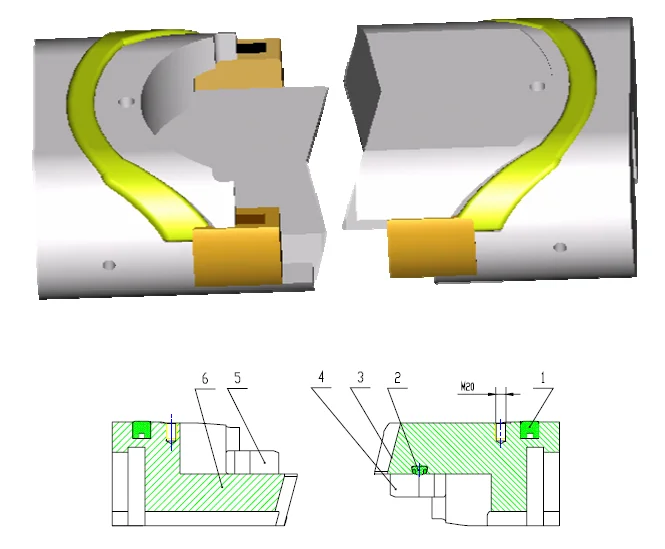

API FZ35-70 Shear Ram Assembly Ram Block and Top Seal and Face Sealshear ram.png

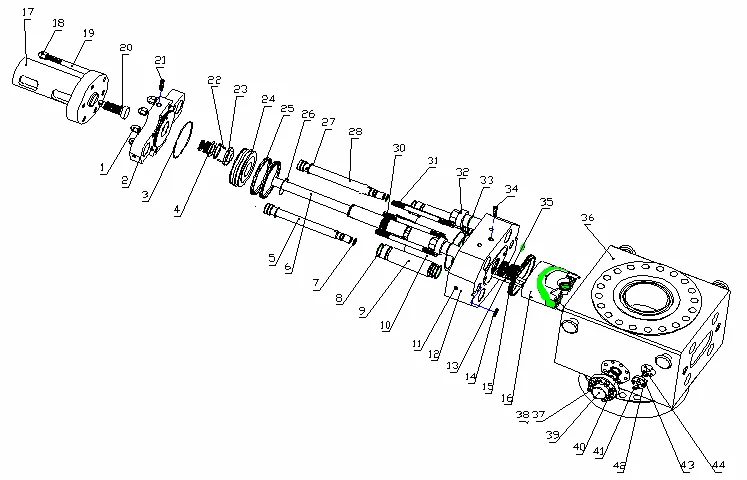

API FZ35-70 Shear Ram Assembly Ram Block and Top Seal and Face SealFZ35-70 BOP parts.png

Specifications of LWP, LWS, SL/SLX Ram BOP

Bore (inches)	7-1/16		11		13-5/8						20-3/4	21-1/4
Bore (inches)	5,000	10,000	3,000	5,000	3,000	5,000	10,000	3,000	5,000	10,000	3,000	2,000
Working Pressure (psi)	58-1/4	79	60	79-1/8	72-5/8	89-1/4	122-3/4	130-1/4	130-1/4	128-3/4	127-1/2	127-1/2
Length (inches)	21-1/2	30	21-1/2	23-1/16	25-15/16	28-3/4	38-9/16	40-3/4	40-3/4	43-1/16	41-1/4	40-7/8
Width (inches)	15	22-7/8	11-1/8	14-1/2	14-1/2	19-1/2	23-1/2	17-1/4	17-1/4	28	23-1/8	23-1/8
Height (inches), Single, Stud x Stud	26-3/4	36-5/8	22	29-1/2	29-3/8	33	40-7/8	34	34	46	49-1/4	44-7/16
Height (inches), Double, Stud x Stud	1,385	5,550	1,170	2,870	2,116	4,150	11,100	8,400	8,800	13,200	7,448	7,285
Weight (lbs), Single, Stud x Stud	2,504	9,900	2,200	5,750	4,096	7,725	20,560	15,350	15,620	23,400	14,615	14,455
Weight (ls), Double, Stud x Stud	1.18	2.34	0.68	2.27	1.45	2.62	7.0	4.46	4.46	10.52	4.46	4.46
Gallons to Open	1.45	2.72	0.77	2.58	1.74	2.98	9.45	5.44	5.44	10.58	5.07	5.07
Gallons to Close	5.45:1	7.11:1	4.5:1	5.57:1	5.45:1	5.57:1	7.11:1	5.54:1	5.54:1	7.11:1	5.57:1	5.57:1

Specification of Type U Style Ram BOP

Bore (inches)	7-1/16		11				13-5/8				20-3/4	21-1/4
Working Pressure (psi)	5,000	10,000	3,000	5,000	10,000	15,000	3,000	5,000	10,000	15,000	3,000	2,000
Length (inches)	74	74	95.25	96.25	96.25	124	112.13	112.13	114.13	139.00	143.69	143.69
Width (inches)	20.25	20.63	25.13	25.13	25.75	32	29.25	29.25	30.25	39.50	39.52	39.52
Height (inches), Single, Flange x Flange	27.50	30.56	29.06	34.31	35.69	44.81	31.31	33.81	41.69	53.69	40.56	37.9
Height (inches), Double, Flange x Flange	44.19	48.63	49.25	54.50	55.88	69.75	53.38	55.88	66.63	81.75	66.13	62.75
Weight (lbs), Single, Flange x Flange	2,800	3,550	5,300	5,600	6,400	10,300	7,200	7,700	10,300	23,700	13,650	13,250
Weight (lbs), Double, Flange x Flange	5,200	6,400	9,900	10,200	11,300	18,400	14,300	14,800	18,400	43,250	25,550	25,150
Locking Screw Turns (Each End)	18	18	27	27	27	32	32	32	32	45	46	46
Gallons to Open	1.3	1.3	3.4	3.4	3.4	5.7	5.5	5.5	5.5	10.4	8.1	9.0
Gallons to Close	1.3	1.3	3.5	3.5	3.5	5.8	5.8	5.8	5.8	10.6	8.7	8.7
Closing Ratio	6.9:1	6.9:1	7.3:1	7.3:1	7.3:1	9.8:1	7.0:1	7.0:1	7.0:1	10.6:1	7.0:1	7.0:1

Any inquiries, freely contact me:

Skype: julia0402zcy Wechat: juliazcy; Mobile: 0086 18661596896

Photo View

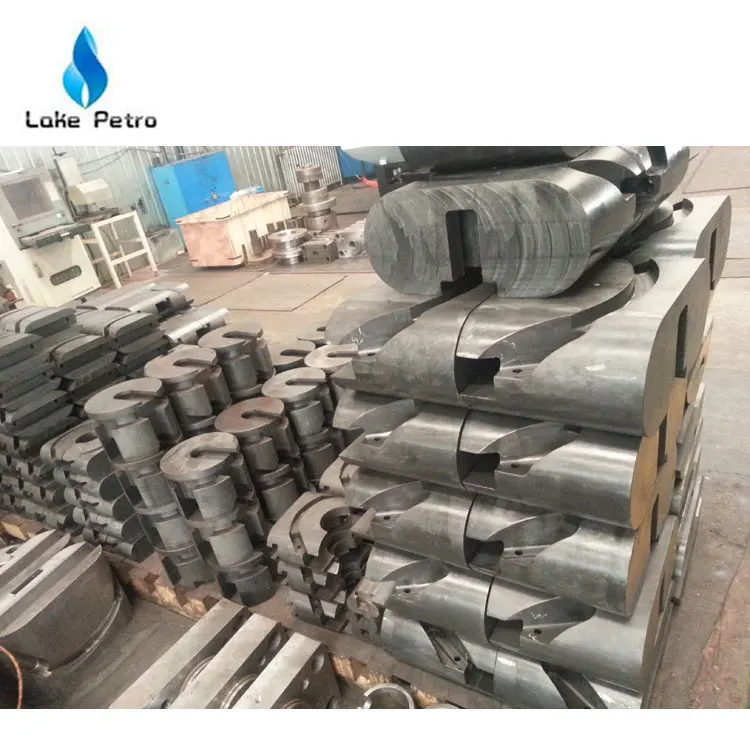

API FZ35-70 Shear Ram Assembly Ram Block and Top Seal and Face SealAPI 16A Shear Ram BOP Ram Assemblyshear-ram.jpg
