Pipe Threading Lathe Machine for Oil Field

Add to Basket Share to :

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Dongying Lake Petroleum Technology Co.,Ltd
Membership Free member
Registration Date2018.10.27
Country/RegionChina
CityDongying
Contact Grace Qi(Ms.)

Report Item

Your report on Product(s), Selling Lead(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Grace Qi

Dongying Lake Petroleum Technology Co.,Ltd

* Buying Product

Category : Other Manufacturing & Processing Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Place of Origin China
- Related Keywords Lathe, Lathe Machine, Pipe Threading Lathe Machine

Description by Manufacturer

SPECIFICATION OF LATHE MACHINE
ITEMS		UNIT	Q1319B Pipe Lathe
Capacity	Swing over bed	mm	Φ630/800
	Swing over cross slide	mm	Φ340/540
	Distance between centers	mm	1500/3000
	Pipe threading range	mm	Φ50-193
	Width of bed way	mm	550
	Max. load capacity	T	3
Spindle	Spindle bore	mm	Φ200
	Spindle speed steps	-	FWD. 12/REV. 6
	Spindle speed range	rpm	24-300/38-384
	Chuck size	mm	Φ520
	Chuck type	-	4-jaw manual
Turret	Turret type	-	Manual 4 position
	Tool shank size	mm	32x32
	Turret travel	mm	200
Carriage	X axis feed grade/range	mm/r	22/0.02-0.45
	Z axis feed grade/range	mm/r	26/0.07-1.33
	X axis rapid traverse speed	mm/min	2300
	Z axis rapid traverse speed	mm/min	4000
	X axis travel	mm	320
	Z axis travel	mm	1310/2810
Tailstock	Tailstock quill diameter	mm	Φ100
	Tailstock quill taper	-	MT#5
	Tailstock quill travel	mm	250
Motors	Main spindle motor	kW	7.5
	Rapid traverse motor	kW	0.3
	Coolant pump motor	kW	0.125
Thread	Metric thread grade/range	mm	2024/1/14
	Inch thread grade/range	T.P.I.	1940/2/28
	Module thread grade/range	mm	-
	DP thread grade/range	D.P.	-
Dimensions	Width x Height	mm	1360×1555
Dimensions	Length	mm	3657/5157
Weight	Net weight	T	4.2/5.05

Pictures

Product Image

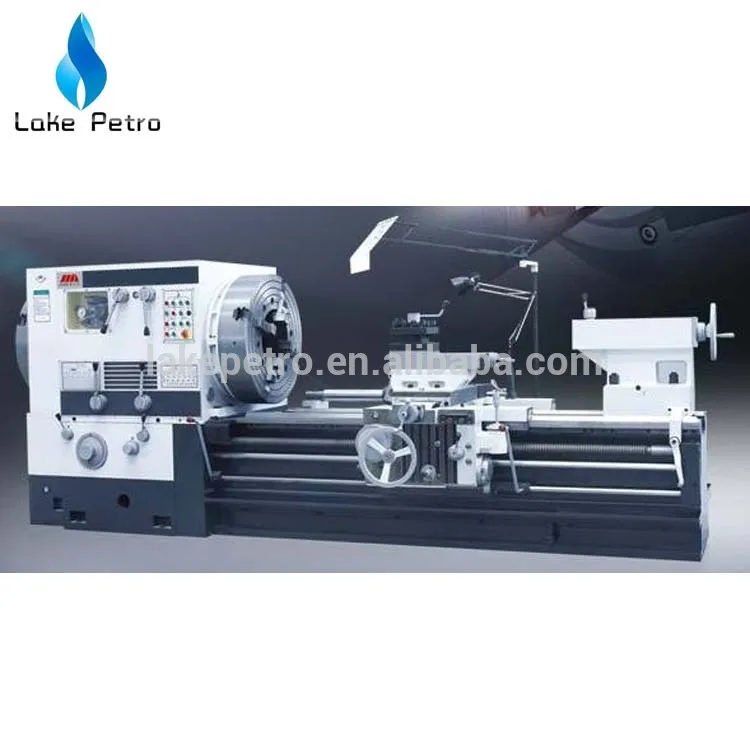

Pipe Threading Lathe Machine for Oil Field
