API Certificated Clamps Drilling Rig Spare Parts for Polished Rod

Add to Basket Share to :

Price

US$ 1 ~ 10

Min Order Quantity10 Set
Supply Ability20000per year
PortTianjin Or Shanghai
Delivery Lead Time15Days
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Puyang Zhongshi Group Co., Ltd
Membership Free member
Registration Date2023.05.12
Country/RegionChina
CityPuyang
Contact Chris Guan(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Contact Supplier

* From

Mr.Chris Guan

* Buying Product

Category : Mining Machinery Parts

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Zhongshi
- Model Number API 10D
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color Customised
- Material: Stainless steel
- Use: Well Drilling
- After-sales Service Provided: Online technical support
- Machine Type: Drilling Equipment
- Related Keywords clamps, API, well tool, drilling equipment, downhole tools

Description by Manufacturer

Products Descripition:

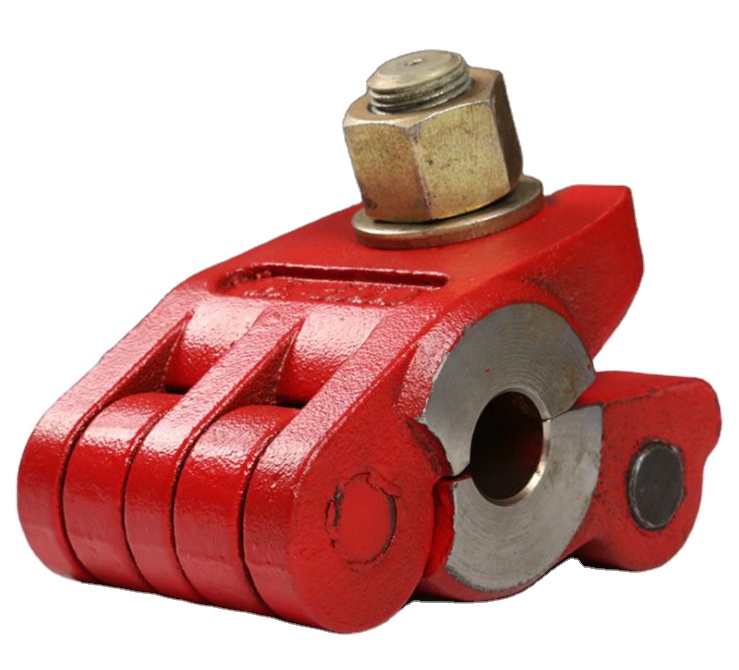

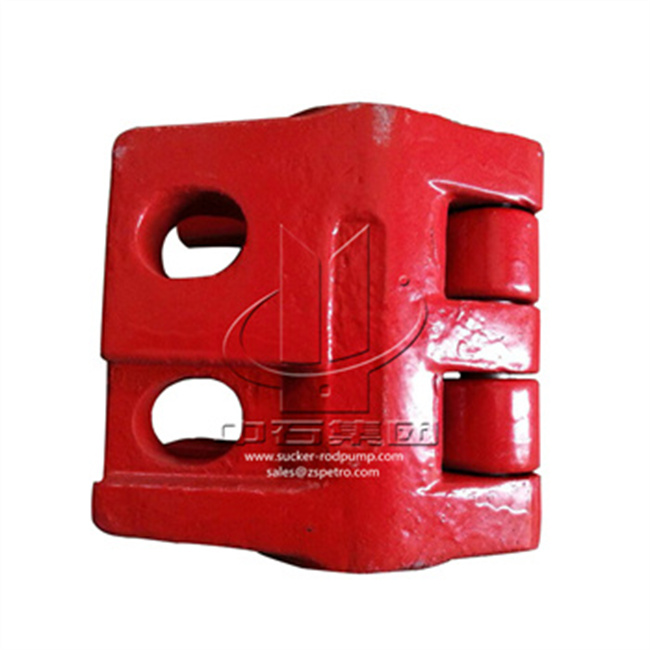

The polished rod clamp is of butterfly structure, it is fixed on the polished rod as retaining device for the rope hanger. It makes the pumping unit horsehead connected with polished rod through rod eye lifting device, and then the polished rod append and support the load of sucker rod string. The polished rod clamp is an important part connecting oil pump and sucker rod, it is required not only reliable, have a certain capacity, but also can not cause damage for sucker rod.

1. Chemical Composition

To meet the requirements of this specification, polished rod manufactured from any AISI or equivalent specification recommended cast iron or carbon steel as follows.
a) ASTM A536 ductile iron 65-45-12, or equivalent international series number.
b) Carbon Steel; aisi1015 to 1045 or AISI 1515 to 1545, or equivalent international series number.

2. Mechanical Properties

Tie allowable hardness range for polished rod clamps is between 190 and 300 HB

3. Maximum Load Rating

Each polished rod clamp design has a stated maximum load rating. The maximum rated load is no more than 75% of the minimum load to initial slippage when a new polished rod clamp which has successfully completed validation testing per in accordance with this specification.

4. Specification

WL12000 single bolt	Polished Rod Diameter	Working load	Tightening Torque	Weight
	22mm	78.5KN	3200N.m	5.6Kg
	25mm	100KN		5.5Kg
	25.4mm (1in)	100KN		5.5Kg
	28.6mm (1 1/8in)	118KN		5.5Kg
WL16000 two bolt	Polished Rod Diameter	Working load	Tightening Torque	Weight





	25.4mm (1 in)	118KN	1545N.m	7.3 Kg
	28mm	157KN		7.2 Kg
	28.6mm (1 1/8in)	157KN		7.2 Kg
	31.8mm (1 1/4in)	157KN		7.1 Kg
	32mm	157KN		7.1 Kg
	38.1mm (1 1/2in)	178KN		9 Kg
WL18100 three bolt	Polished Rod Diameter	Working load	Tightening Torque	Weight







	31.8mm (1 1/4in)	178 KN	1977N.m	10.35Kg
	32mm	178 KN		10.35Kg
	38.1mm (1 1/2in)	178 KN		10.2Kg

Price

Price US$ \ 1 ~ 10 / Set

Packaging & Shipping

- PackingAs suppliers standard or as you required
- Delivery Lead Time15Days
- Minimum Order 10 Set
- Supply Ability20000per year
- Total quantity in Stock301 – 500
- Delivery PortTianjin Or Shanghai
- Shipping Career

Product Image

API Certificated Clamps Drilling Rig Spare Parts for Polished Rod

Clamps Related Products

Download Product Brochure

Zhongshi Catalogue.pdf (5.62 Mb)

Company Profile

About Puyang Zhongshi Group Co., Ltd

Membership Free member
Registration Date2023.05.12
Country/RegionChina
CityPuyang
Contact Chris Guan(Mr.)

Puyang Zhongshi Group Co., Ltd. was founded in 1996, which is the restructured enterprise of Central Plains oilfield branch company of SINOPEC . The company registered capital is 60.83 million yuan, with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff . Oil machinery is our main products, the leading products include pumping unit, subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels, drilling solid control series products and cementing accessories. We had attained ISO 9001 in 1998 and API Certificates in 2002 .
