API Oilfield Well Drilling Casing Guiding Float Collar and Float Shoe for Cementing

Add to Basket Share to :

Price

5 - 19
US$ 42
≥20
US$ 40

Min Order Quantity5 Set
Supply Ability5000 per year
PortTianjin or Shanghai
Delivery Lead Time15days
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Puyang Zhongshi Group Co., Ltd
Membership Free member
Registration Date2023.05.12
Country/RegionChina
CityPuyang
Contact Chris Guan(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Chris Guan

Puyang Zhongshi Group Co., Ltd

* Buying Product

Category : Mining Machinery Parts

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Zhongshi
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color Blue
- Application: Drilling Platform
- Working Pressure: Oil And Water Well Cementing Tools
- Color: 21Mpa-35Mpa
- Specification: Customer Requirements
- FePlace of Origin: 4 1/2"~36"
- Features: Henan
- Related Keywords oilfield equipment, casing collar, float shoe, float collar, cementing

Description by Manufacturer

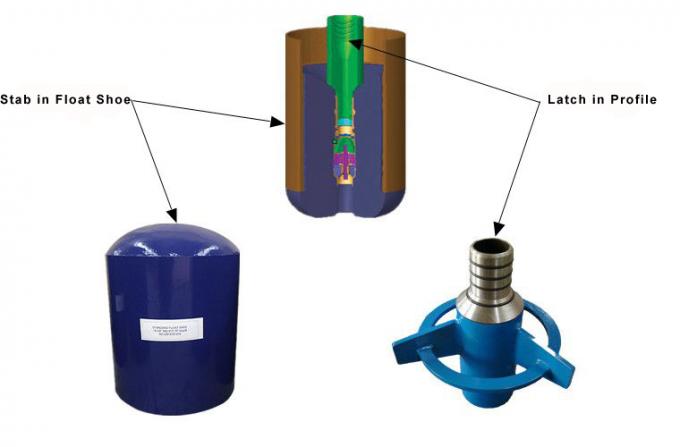

Stab-in Casing Float Collar And Float Shoe API or As required

Stab-In float collar&shoe is an improved method for cementing large diameter casing.With stab-in float collar&shoe, the Drill Pipe is stabbed directly into the Float Shoe or Collar and cement is pumped through the drill pipe until returns reach surface.Cement is then displaced to the bottom of the Drill Pipe a wiper dart can be used. The drill pipe is then picked up, circulated, and pulled out of the hole.

In addition,large plugs must be used to seperate the cement from the mud and have to be drilled out, along with any cement in the casing. The Stab In Float collar&shoe is used for cementing large diameter casings lowered on drill pipe. The string presents special cementing consideration due to high displacement volume of large diameter casing.

Features:

Small diameter inner string off drill pipe is used to displace cement which minimizes displacement volume behind Cement and there by reduces contamination and save time.
Drill out of cement inside large casing is minimized by controlling cement top with displacement fluid in drill pipe And Plunger valve in Stab in Shoe
Improve displacement accuracy — cement mixing and pumping continues until cement returns reach surface
Get better cement quality — the reduced cement/mud interface area and high velocity of flow in the Drill
Pipe Minimize cement contamination while the short pumping time eliminates the need for cement retarders
Reduce cement volume — conventional displacement requires calculation of excess cement factor, whereas with Stab-in methods excess cement need be no greater than the volume of the drill pipe. No large plugs are needed
Reduce net rig time — circulating, pumping, and drill-out times are minimized
Protect casing — cementing pressures are confined to the drill pipe as in a squeeze job
The Stab-in cementing equipment is available in size 4-1/2”-36”
The Stab-in cement Float Shoe & Collar are also available with Double Valve and any combination.

Specification

Specification (in)		O.D. (mm)	Total Length	I.D. (mm)	Min.Dia. (mm)	Connection Type	Working Pressure
Float Collar	5"	141.3	500	110	50	BTC/LTC/BCSG	35
	5 1/2"	153.67	530	112	55	BTC/LTC/BCSG	35
	7"	194.46	586	162.5	77	BTC/LTC/BCSG	35
	9 5/8"	270	720	225	77	BTC/LTC/BCSG	35
	13 3/8"	365	720	319	77	BTC/LTC/BCSG	35
	20"	533.4	720	475	77	BTC/LTC/BCSG	35
Float Shoe	5"	140.3	495	110	50	BTC/LTC/BCSG	35
	5 1/2"	153.67	514	112	55	BTC/LTC/BCSG	35
	7"	194.46	533	162.5	77	BTC/LTC/BCSG	35
	9 5/8"	269.88	550	225	77	BTC/LTC/BCSG	35
	13 3/8"	339.7	550	319	77	BTC/LTC/BCSG	35
	20"	534	652	475	77	BTC/LTC/BCSG	35

Price

Price US$ 40 ~ 42 / Set

Packaging & Shipping

- PackingCustomers Requirement
- Delivery Lead Time15days
- Minimum Order 5 Set
- Supply Ability5000 per year
- Total quantity in Stock701 – 1000
- Delivery PortTianjin or Shanghai
- Shipping Career

Product Image

API Oilfield Well Drilling Casing Guiding Float Collar and Float Shoe for Cementing

Oilfield Equipment Related Products

Download Product Brochure

Zhongshi Catalogue.pdf (5.62 Mb)

Company Profile

About Puyang Zhongshi Group Co., Ltd

Membership Free member
Registration Date2023.05.12
Country/RegionChina
CityPuyang
Contact Chris Guan(Mr.)

Puyang Zhongshi Group Co., Ltd. was founded in 1996, which is the restructured enterprise of Central Plains oilfield branch company of SINOPEC . The company registered capital is 60.83 million yuan, with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff . Oil machinery is our main products, the leading products include pumping unit, subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels, drilling solid control series products and cementing accessories. We had attained ISO 9001 in 1998 and API Certificates in 2002 .
