API Pump Sucker Rod Pipe (Plug-in) for Oilfield Drilling Equipment

Add to Basket Share to :

Price

US$ 485 ~ 500

Min Order Quantity5 Rod
Supply Ability2000per month
PortTianjin Or Shanghai
Delivery Lead Time15days
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Puyang Zhongshi Group Co., Ltd
Membership Free member
Registration Date2023.05.12
Country/RegionChina
CityPuyang
Contact Chris Guan(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name Zhongshi
- Model Number API 11AX Standard
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color Green
- Application Drilling Platform
- Certification API standard oilfield tubing pump
- Core Components Bearing
- Machinery Test Report Pressure vessel
- Related Keywords API, driling equipment, china factory price, cheap price for wholesale, sucker pump

Description by Manufacturer

API standard oilfield tubing pump Product description: In the rod - having pump operation, API standard subsurface sucker rod pump is one quite important downhole oil production equipment. which can be divided into tubing pump and rod pump.

Specification table:

1	2		3	4		5
Type of Pump	Letter Designation
	Metal Plunger Pumps				Soft-Packed Plunger Pumps
	Heavy-Wall Barrel	Thin-Wall Barrel			Heavy-Wall Barrel	Thin-Wall Barrel
Rod Pumps
Stationary Barrel, Top Anchor	RHA	RWA				RSA
Stationary Barrel, Bottom Anchor	RHB	RWB				RSB
Stationary Barrel, Bottom Anchor	RHT	RWT				RST
Tubing Pumps	TH	--			TP	--

operating principle of tubing pumps:The pump barrel assembly directly fixed on a tubing string. the plunger assembly connected on the sucker rod string ,and with the up and down reciprocating motion, so as to realize the production process. Its advantage lies in: in the process of oil production, when the traveling valve and fixed valve side problems arise,valve side can be proposed by the sucker rod, piston and extractor , don’t put the whole pump and tubing string out of the well, reduce the work intensity and the operation cost.

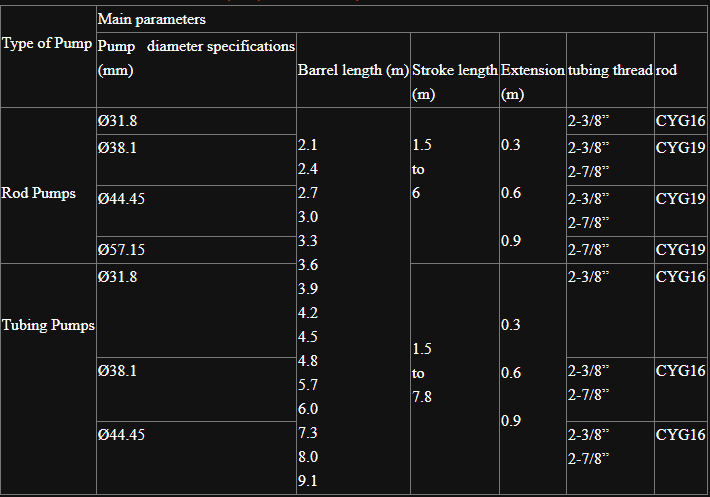

API standard oilfield tubing pump Technical parameters

Main parts process and material:
Pump barrel: plain carbon steel plating (A1), ordinary carbon steel carbonitriding (B1), ordinary carbon steel carburizing (B2), low alloy steel nitride (B5).
Plunger: 1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).
Valve ball and seat: stainless steel (A1), cobalt chromium (B2), tungsten carbide (C1), nickel and carbon compounds (C2), titanium carbide (C3).
Other accessories: plain carbon steel, low alloy steel, stainless steel, brass and other materials.

our successful projects

Price

Price US$ \ 485 ~ 500 / Rod

Packaging & Shipping

- Packingstandard or as clients required
- Delivery Lead Time15days
- Minimum Order 5 Rod
- Supply Ability2000per month
- Total quantity in Stock1001 – 1500
- Delivery PortTianjin Or Shanghai
- Shipping Career

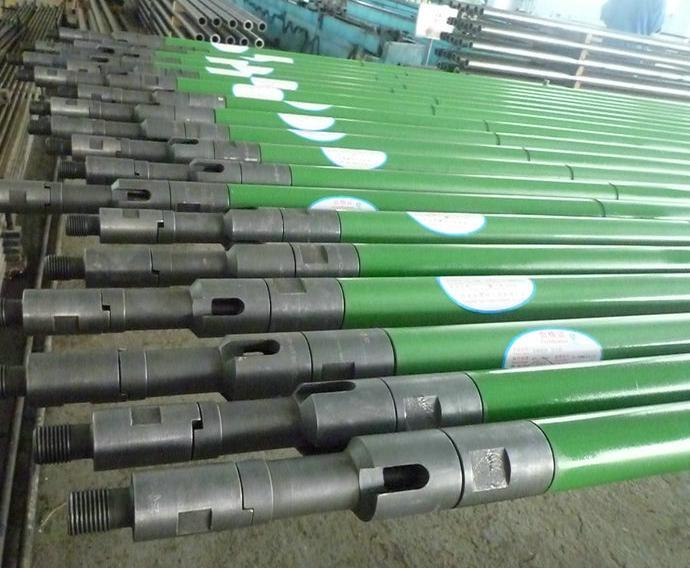

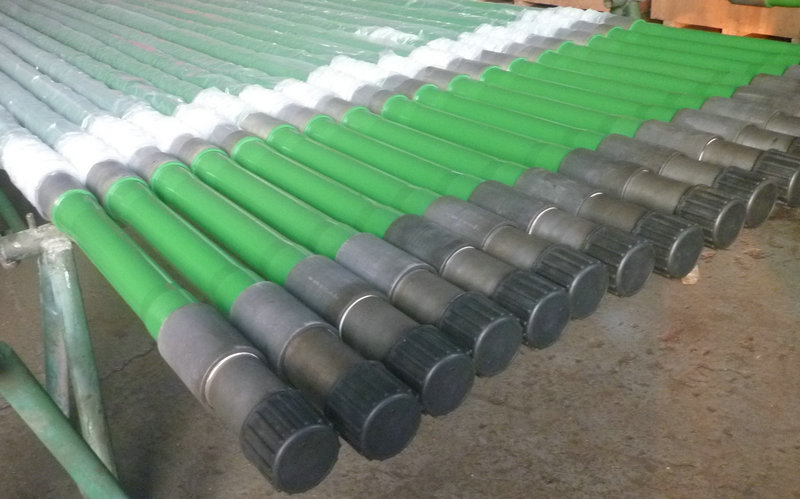

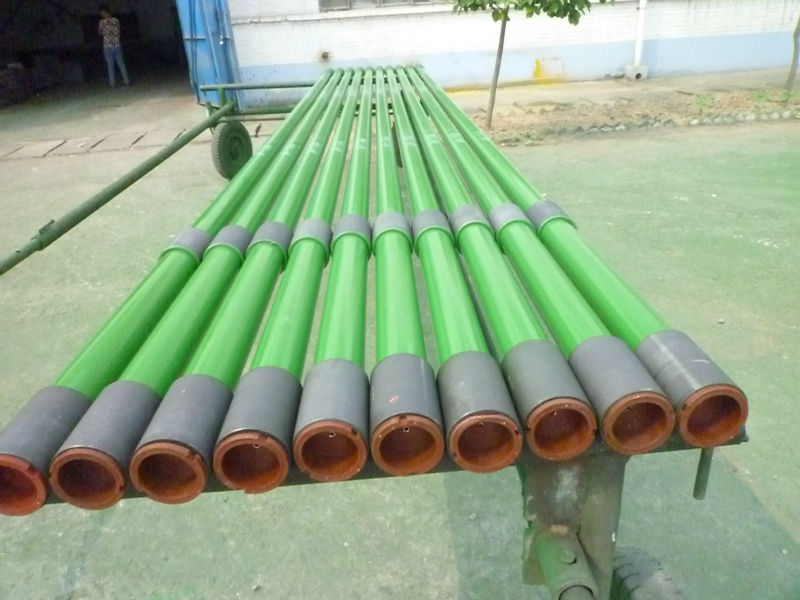

Product Image

API Pump Sucker Rod Pipe (Plug-in) for Oilfield Drilling Equipment

API Related Products

Download Product Brochure

Zhongshi Catalogue.pdf (5.62 Mb)

Company Profile

About Puyang Zhongshi Group Co., Ltd

Membership Free member
Registration Date2023.05.12
Country/RegionChina
CityPuyang
Contact Chris Guan(Mr.)

Puyang Zhongshi Group Co., Ltd. was founded in 1996, which is the restructured enterprise of Central Plains oilfield branch company of SINOPEC . The company registered capital is 60.83 million yuan, with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff . Oil machinery is our main products, the leading products include pumping unit, subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels, drilling solid control series products and cementing accessories. We had attained ISO 9001 in 1998 and API Certificates in 2002 .
