Accurl High Accuracy and Efficiency Fiber Laser Cutting Machine for Special-shaped Pipe Tube Cutting

Add to Basket Share to :

Price

US$ 14200

Min Order Quantity1 Set
PortShanghai
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Accurl CNC Machine Manufactory Co.Ltd
Membership Free member
Registration Date2023.01.17
Country/RegionChina
CityMaanshan
Contact XU SHUYI(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.XU SHUYI

Accurl CNC Machine Manufactory Co.Ltd

* Buying Product

Category : Metal Processing Machinery Parts

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Laser Cutting Machines

Description by Manufacturer

Essential details

Application:: LASER CUTTING

Applicable Material:: MDF, Metal, Crytal

Condition:: New

Laser Type:: Fiber Laser

Cutting Area:: 30-400mm

Cutting Speed:: 10m/s

Graphic Format Supported:: AI, Dst, Dwg, DXF, DXP, LAS

Cutting Thickness:: 100mm

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Control Software:: cypcut controller

Place of Origin:: Anhui, China

Brand Name:: ACCURL

Laser Source Brand:: IPG

Laser Head Brand:: Precitec

Servo Motor Brand:: Yaskawa

Guiderail Brand:: Rexroth

Control System Brand:: Beckhoff

Weight (KG):: 8000 KG

Key Selling Points:: Energy saving

Optical Lens Brand:: Might

Warranty:: 3 years

Applicable Industries:: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Warranty of core components:: 2 years

Core Components:: Pressure vessel, Motor

After-sales Service Provided:: Engineers available to service machinery overseas, Online support, Video technical support

Laser type:: USA IPG Fiber YLS-1500w

Linear guide:: Taiwan HIWIN

Reduction Gears:: French MOTOREDUCER

Transmission:: Taiwan YYC gear and rack

Laser head:: Swiss Raytools auto-following

Table-driven system:: Japanese Yaskawa Servo Motor & Driving System

Total Power consumption:: Accurl Laser Professional Laser Cutting Software

Product name:: Fiber Laser Metal Cutting Machine

Certification:: ce, ISO, Sgs

After Warranty Service:: Video technical support, Online support

Marketing Type:: New Product 2022

Products Description

ACCURL FIBER LASER TUBE CUTTING MACHINE

 ACCURL® Laser tube cutting is specifically designed for businesses that care about high quality profile & tube cutting.full automatic Loading & Unloading requires less effort and time save for the operator.and Can cut column Crossed Lines at the end of branch pipe,and meet centrifugal and non-centrifugal.

 *User friendlyFSCUT 5000 TwinCAT CNC control
 * Unique features:
 * Maximum simultaneous positioning speed: 120m/min.
 * Acceleration speed: 13 m/ s2 (1.2G).
 * CNC and CAM can calculate complex profiled sections
 * Energy efficiency: greatly reduced power consumption.
 * IPG Resonator. Power output from 1000W To 6000W
 * Advanced Swiss RayTools AGcutting head (with air cross blast).
 * φ8-440mm pipe processing range is optional
 * The patented technology of three-chuck and zero-tail material high utilization of raw material.
 * Effective high to low pressure gas exchange system.
 * Automatic time and unit cost calculation function.
 * Network connection from external.
 * Smoke extraction (included in series models).

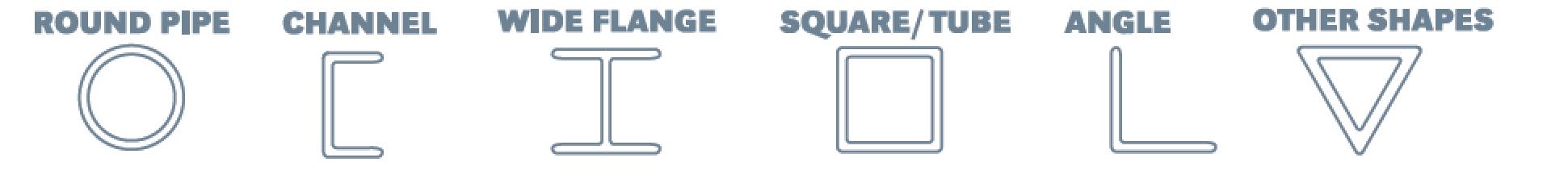

 * The “L” shape of the machine assures total flexibility for processing round, square, rectangle “C” / “H” / “I” channel, and
   angle.

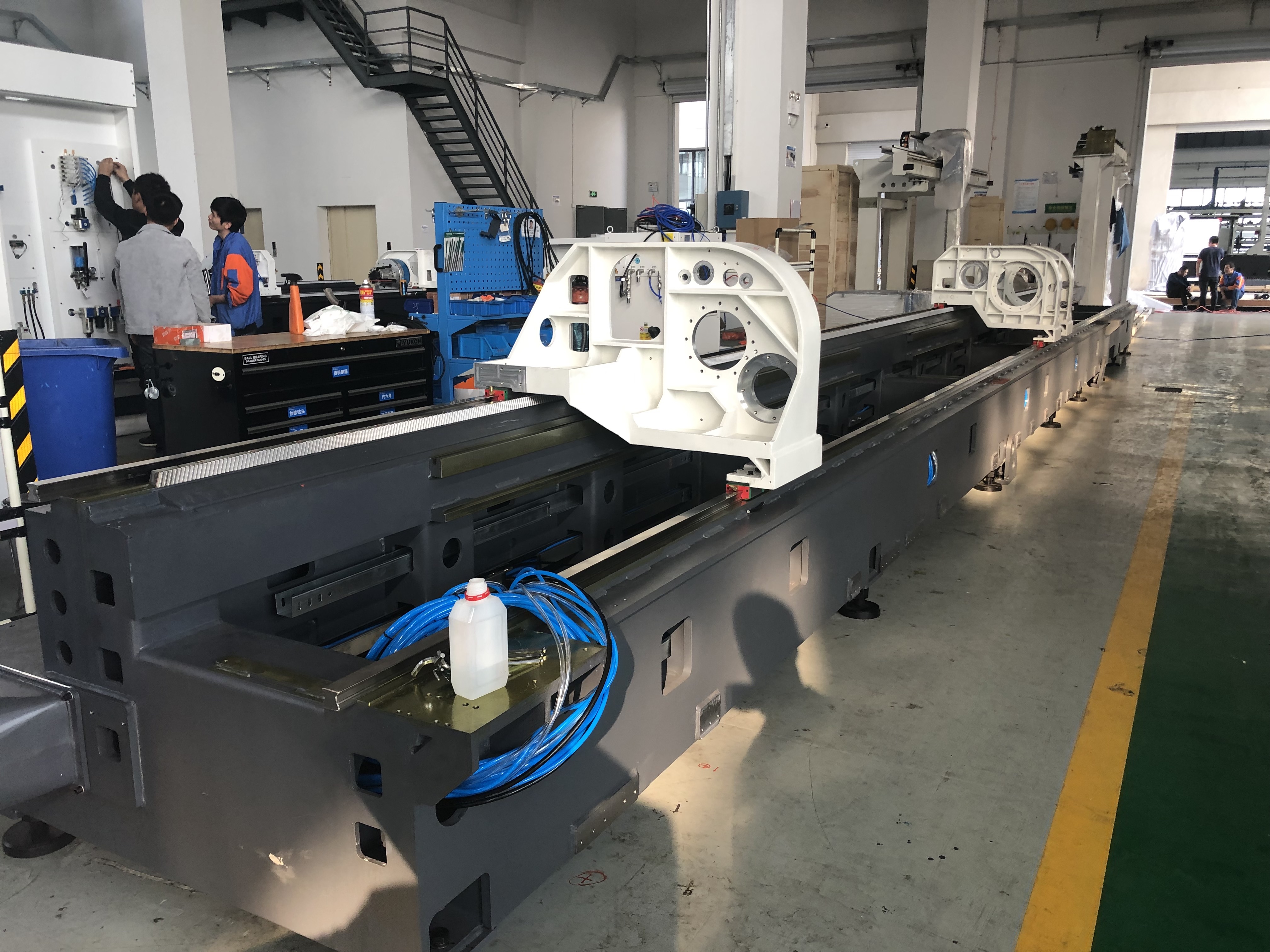

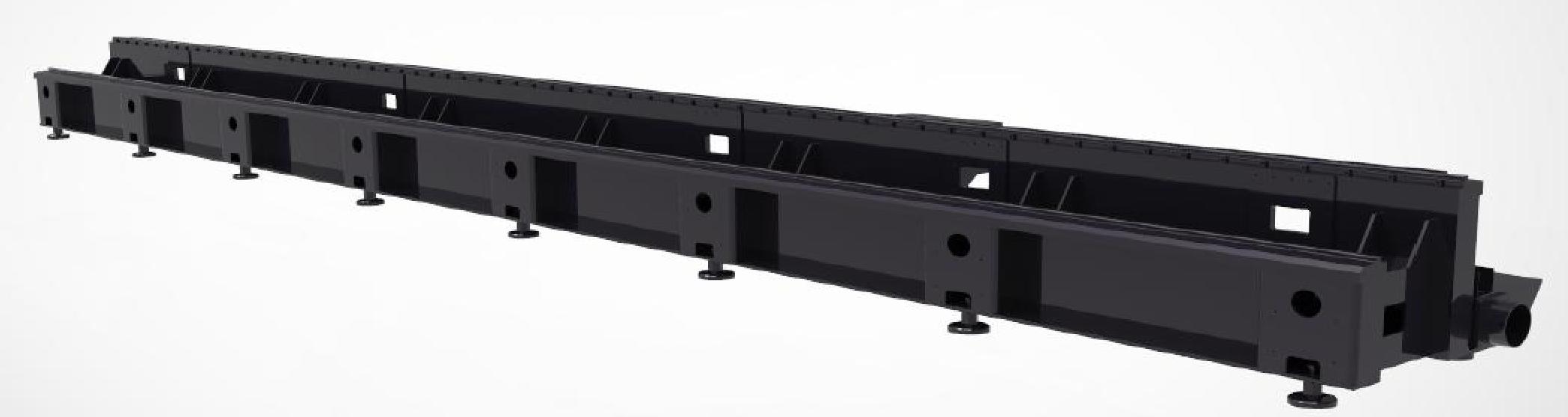

MACHINE BODY

 ACCURL steel frames bed adopts welding
structure, rough machining after annealing, then vibration aging treatment, and then finishing, can completely eliminate the stress of welding and machining,good rigidity, high precision, can maintain long time use without deformation.

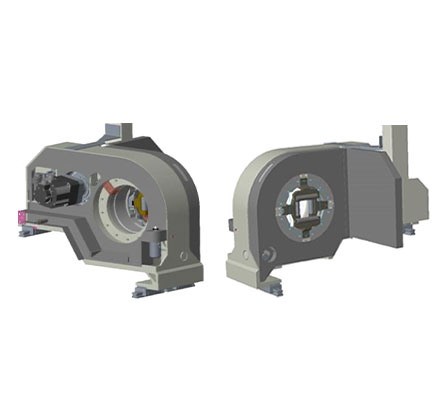

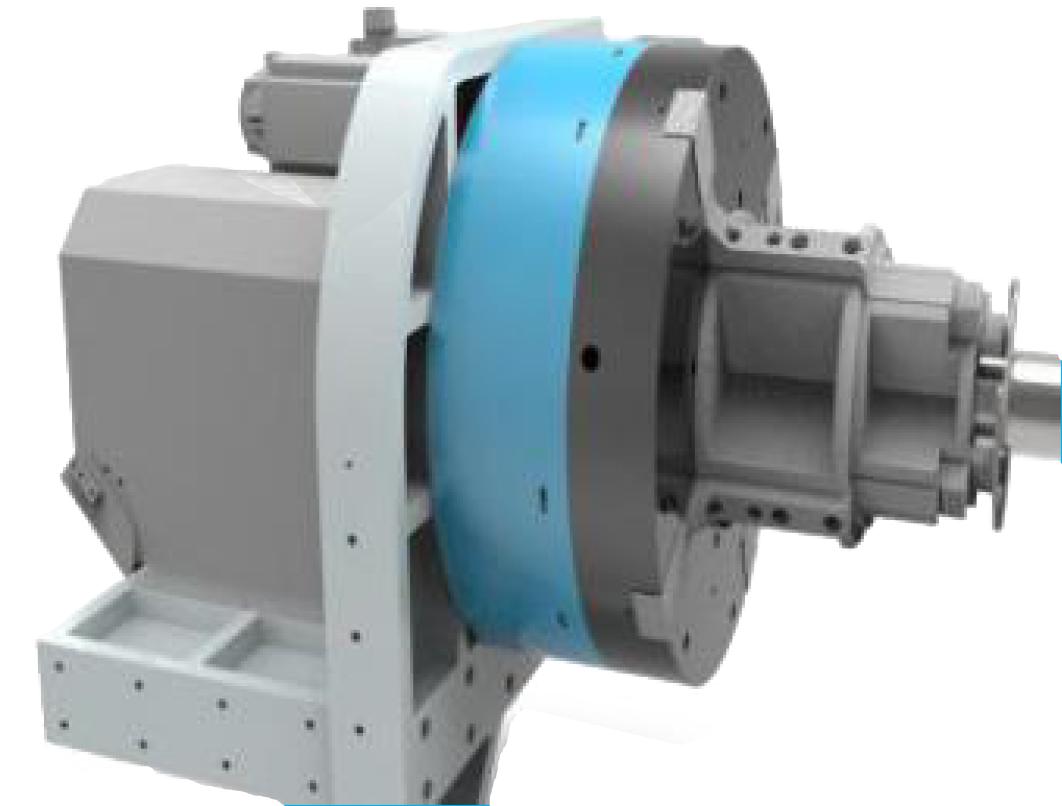

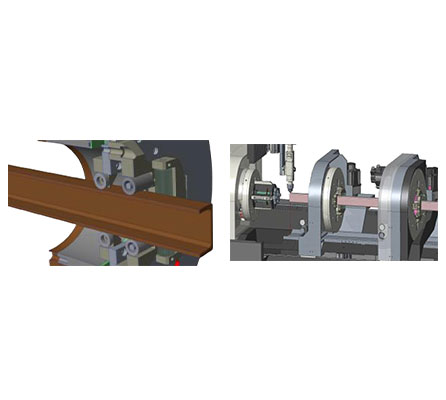

CHUNKS AND CLAWS

Two high quality rotate chuck move with synchronous rotation, which ensure tube holding more steady . It reduce tube vibration to minimum, with solid guarantee for high accuracy in complicate tube figure.Suitable for cutting tube with diameter range from Ø20mm to Ø320mm.

FRONT CHUNKS

The X、Y、Z linear Axis and A、B rotary Axis both adopt imported large torque servo motor, high precision, high speed, large torque, large inertia, stable and durable performance, which ensures the high speed and acceleration of the whole machine.

MEDIUM CHUNKS

The three chuck real-time to maintain the pipe before and afterthree-point clamping positioning, cutting space-time running speed can achieve max stable cutting, relative cutting efficiency to be high.

REAR CHUNKS

Independent research and development of the chuck with good sealing and motion characteristics, can hold square tube, round tube, elliptical tube, flat tube, triangle tube, I-beam and other materials.

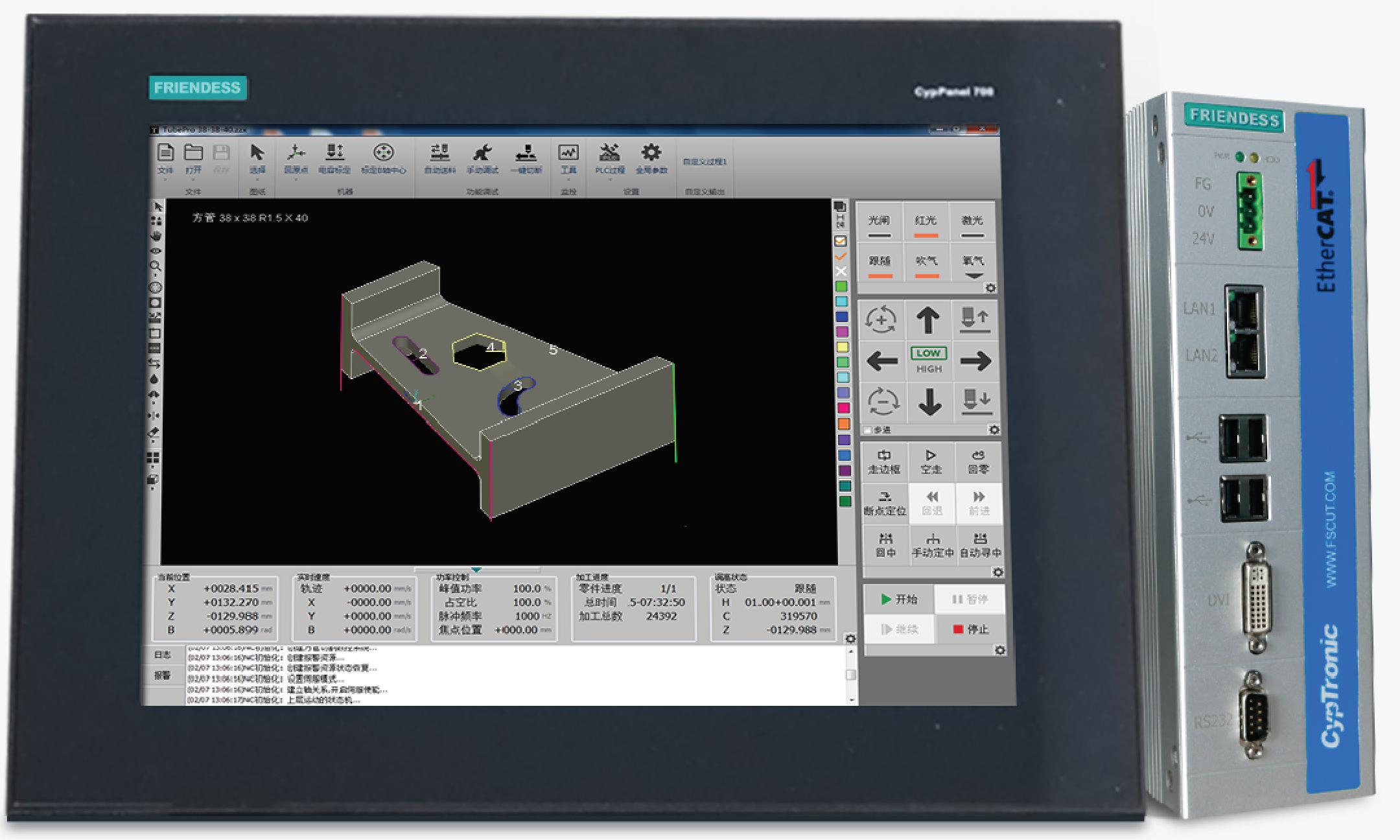

CNC CONTROL SYSTEM

The FSCUT-5000 laser cutting control system of an tube laser cutting control system. Widely used in the field of metal and
nonmetal laser cutting. Because of its outstanding performance in the field of fiber laser cutting, by the vast number of high-end users.

TUBE CUTTING HEAD

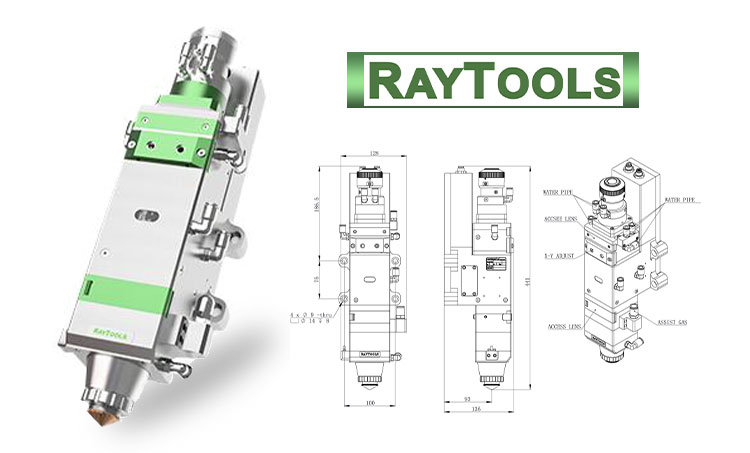

CUTTING HEAD RAYTOOLS

The RAYTOOLS AG comes with the external motor and the built-in drive unit through the linear driver and the focusing lens can automatically change the position in the range of 25mm. The user can set the focus continuously through the program to complete the rapid perpiercing of thick sheets or other different thickness and material sheets.

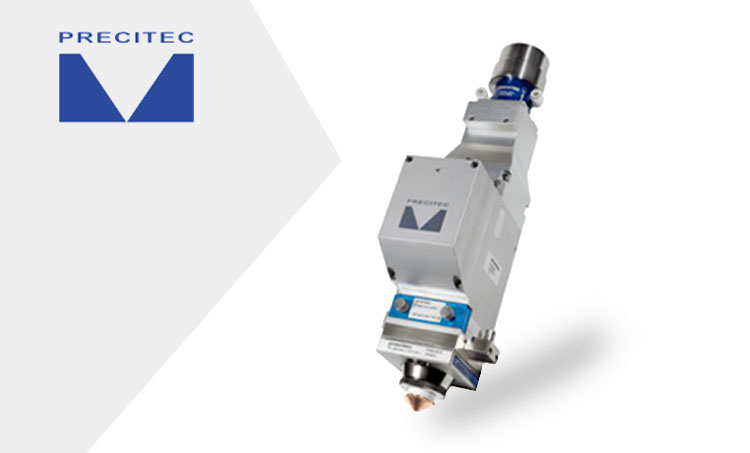

CUTTING HEAD PRECITEC LIGHTCUTTER AUTO FOCUS(OPTIONAL)

The cutting head LightCutter 2.0 is the perfect solution for efficient and cost-effective laser cutting. The new generation of our Light Cutter family is designed for cutting applications in the medium power range up to 4 kW and is characterized by a high cutting quality for all metals - especially mild steel, stainless steel and aluminum.

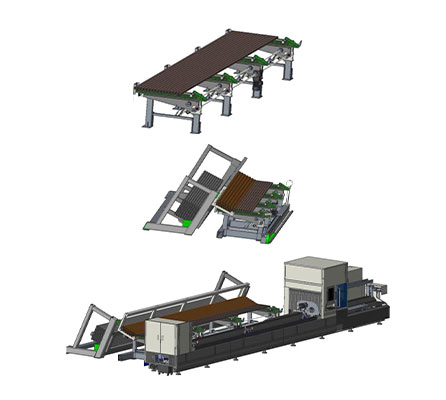

AUTOMATIC LOADING SYSTEM

SEMI-AUTOMATIC LOADING SYSTEM SAT-60

*Transmission module: Place the pipe on the loading belt manually and the belt will transport the pipe forward.
 * Material Misalignment module: The pipe is separated from the root, misplaced to the loading jaws.
 * Loading module: The loading jaws send the pipe to the loading support of the main bed one by one.
 * Loading Size: The size range of loading material is Ø25- Ø120,square pipe 25-120,can load round pipe,single pipe bearing 120Kgs.

AUTOMATIC MECHANICAL LOADING SYSTEM ATL-60

 * Height Limit module: Automatically distinguish the long and short sides of the rectangular tube to ensure that each rectangular tube is laid flat and forward.
 * Material framemodule: The whole bundle of pipes is hoisted and loaded into the material frame.
 * Length measuring module: Flatten the pipe to the length of the pipe and transfer the date to the host.
 * Loading Size: The size range of loading material is φ25-120,square pipe 25-120,can load round pipe,single pipe bearing 120Kgs. The first loading time is less than of equal to 70s,and the subsequent loading time is less than or equal to 20s.

Specification

Equipment System Parameters
Processing format and	Technical parameters	Remarks
Scope of Pipe Processing	Circular Tube ：Ø 10mm- Ø 200mm Square Tube ：□ 10mm-□ 145mm Rectangular Pipe：100*180mm
machining groove angle	Bevel 3D 5-Axis Cutting Head with angle ±60
Max cutting processing length	6100 mm
Y axis travel	460 mm
A, B itinerary	Unlimited rotation
Z axis travel	300 mm
X,Y axis positioning	±0.03 mm/m
X,Y axis repeat	±0.03 mm
X axis Empty Speed	140 m/min
A,B,C-axis Max Speed	120 rpm
Length of blanking	3000≤ mm
Acceleration	1.2G
Max load of single tube	300Kgs
loading length	3200mm-6100mm
Tail length	0≥ mm	To be achieved if the process layout conditions meet the.
Appearance Size	12500mm2500mm2500mm
Power parameters
Supply rated voltage	400V/50HZ,3PH
Total power protection	IP54

Price

Price US$ 14200 / Set

Product Image

Accurl High Accuracy and Efficiency Fiber Laser Cutting Machine for Special-shaped Pipe Tube Cutting

Accurl High Accuracy and Efficiency Fiber Laser Cutting Machine for Special-shaped Pipe Tube Cutting 2

Accurl High Accuracy and Efficiency Fiber Laser Cutting Machine for Special-shaped Pipe Tube Cutting 3

Accurl High Accuracy and Efficiency Fiber Laser Cutting Machine for Special-shaped Pipe Tube Cutting 4

Accurl High Accuracy and Efficiency Fiber Laser Cutting Machine for Special-shaped Pipe Tube Cutting 5

Accurl High Accuracy and Efficiency Fiber Laser Cutting Machine for Special-shaped Pipe Tube Cutting 6
