Accurl in Stock QC12Y Series Hydraulic Pendulum Shear Machine Steel Sheet Cutting

Add to Basket Share to :

Price

US$ 5300

Min Order Quantity1 Set
PortSHANGHAI
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Accurl CNC Machine Manufactory Co.Ltd
Membership Free member
Registration Date2023.01.17
Country/RegionChina
CityMaanshan
Contact XU SHUYI(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.XU SHUYI

Accurl CNC Machine Manufactory Co.Ltd

* Buying Product

Category : Other Metal Processing Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Shearing Machines

Description by Manufacturer

Essential details

Max. Cutting Width (mm):: 4000 mm

Max. Cutting Thickness (mm):: 4 mm

Automatic Level:: Fully Automatic

Shearing Angle:: 2.5

Blade Length (mm):: 4000 mm

Backgauge Travel (mm):: 20 - 750 mm

Throat Depth (mm):: 120 mm

Condition:: New

Brand Name:: AccurL

Power (kW):: 5.5 kW

Weight (KG):: 6500 KG

Place of Origin:: Anhui, China

Voltage:: 220V/380V

Dimension(L*W*H):: 4600*1700*1700mm

Year:: 2022

Warranty:: 3 years

Key Selling Points:: Easy to Operate

Applicable Industries:: Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction works

Marketing Type:: Hot Product 2022

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Warranty of core components:: 2 years

Core Components:: Bearing, Motor, Pump

Type:: Shearing Machines

Rated Power:: 5.5kw

After-sales Service Provided:: Engineers available to service machinery overseas, Online support, Video technical support

Control system:: Accurl Estun E21s NC Control

Cutting thickness:: 4mm(Carbon steel)

Cutting Lenght:: 4000mm

Back Gauge:: 20-750mm

Tubing connector:: EMB form Germany Brand

Weight:: 6500kg

Application:: Industrial Metal Cutting

After Warranty Service:: Video technical support, Online support

Certification:: CE ISO

Products Description

Hydraulic CNC Shearing Machine for Metal Shear Cutting Machine

ACCURL MS7 Hydraulic Swing Beam Shear can cut all kind of metal sheet to maintain the highest production capacity with maximum precision and quality. More than just cutting; NC MS7 is developed by expert engineers of ACCURL reflects innovative technology with all aspects of it.

Standard Equipment:

  Wear resistant blades for Top blade 4 cutting edge and Bottom blade 4 cutting edge.
  Portable foot pedal is eligible for single and automatic cutting.
  ESTUN E21s NC controller System.
  NC controlled motorized backgauge system.
  600 mm motorized back gauge system with 0.1 mm accuracy.
  Front support arms with T slot, ruler and flip stop.
  Squaring arm.
  Scales with metric and inches.
  Cutting line illumination and shadow line.
 Central lubrication system.
 Front finger protection guard appropriate to CE norms, 1 m left side collapsible and switch protected.
 Rear sliding plates.
 Front sliding plates with ball bearings on the table.

Details Images

MACHINE DESIGN

ACCURL Shears features a rigid frame for min deflection under the load. The frame steels are German origin and designed using SOLIDWORKS 3D programming and made with quality steel Improved Q235 using the latest technology.

 Feature: * The machine welding is made by welding plant and welding robots.
 * After the welding,we make stress relief process by vibration system.
 * After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy.
 * Allreference surfaces and connection holes are machined.

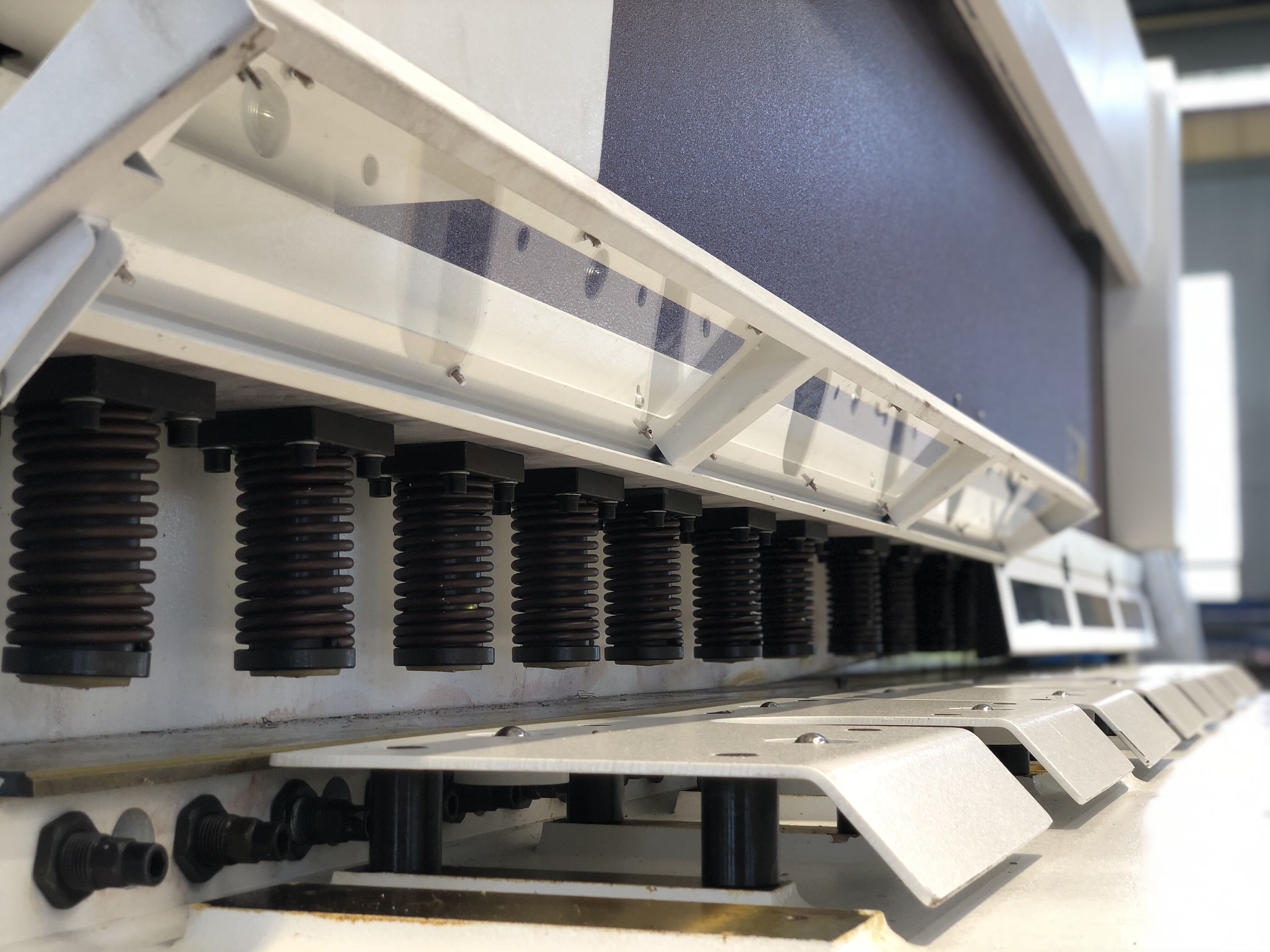

SHEARING PROCESS

Perfect design in every aspect; By choosing the new and improved CNC Swing Beam Shears MS7 Series, you will bring modern-day technology to your company with maximum
safety, high accuracy and unique ease of use.
Blade gap, cutting length are all adjusted based on material selection and thickness automatically.

QUALITY

ACCURL, known as one of the top worldwide manufacturers in the sheet metal industry,
proudly announces its latest shear model to the market,Variable Rake Hydraulic Shears.
The critical parts of the Accurl shearing machine are manufactured in Germany.The carefully selected components come from long-term partners. We rely on our quality and therefore give our shears a 3-year warranty.

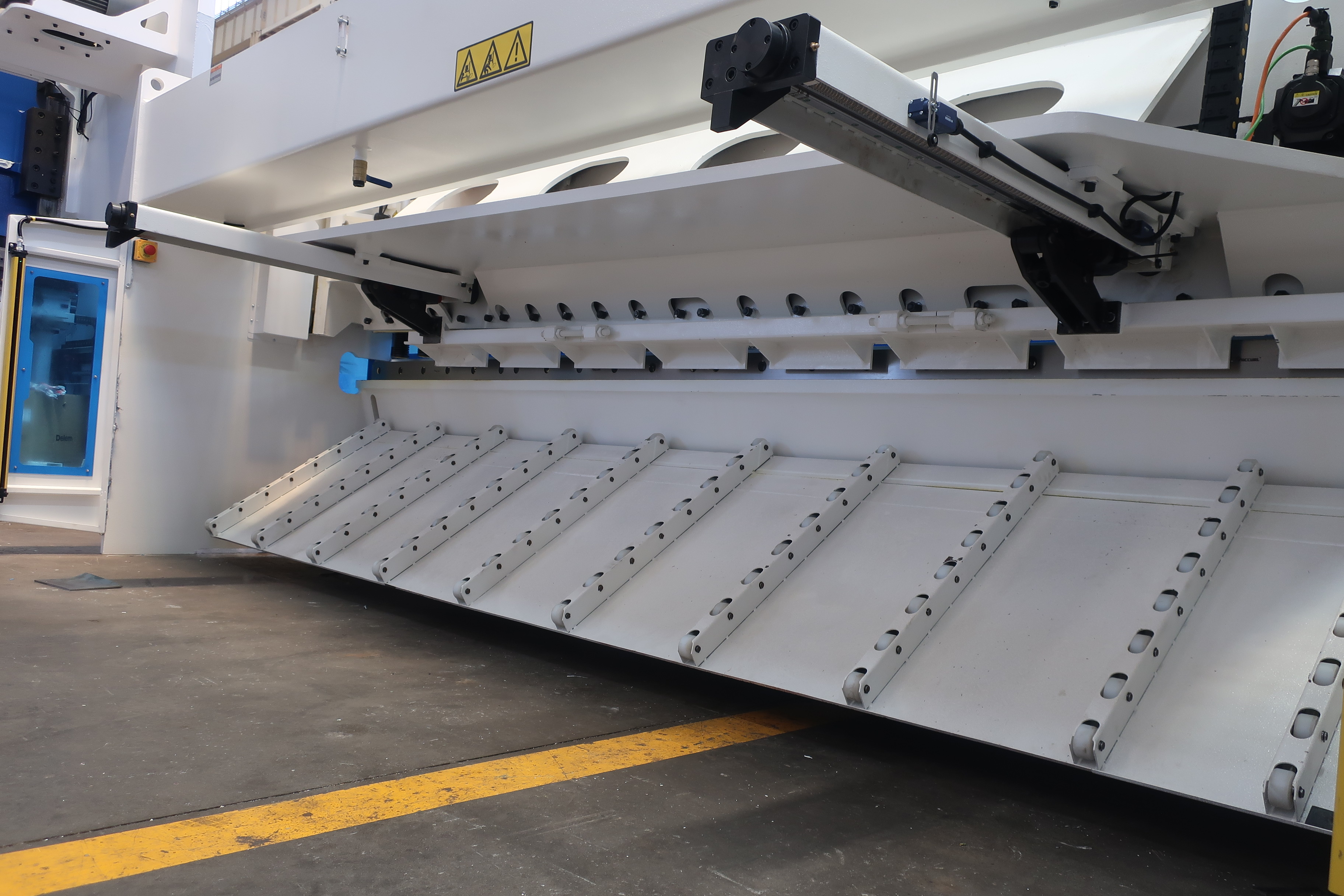

PNEUMATIC SHEET SUPPORT SYSTEM

Monobloc Panel Type support system:
Avoids hanging down the wide and thin sheets via pneumatic table support and provides more precise cuts.

CNC CONTROL UNIT

* 7" widescreen TFT Colour LCD display * Back / front gauge control
 * Panel based housing
 * Retract function
* Cutting angle and gap control
 * Stroke length limitation
 * Manual movement of all axes
 * Force control
* Return to Sender function
* Program memory for 100 programs
* Sheet support system.

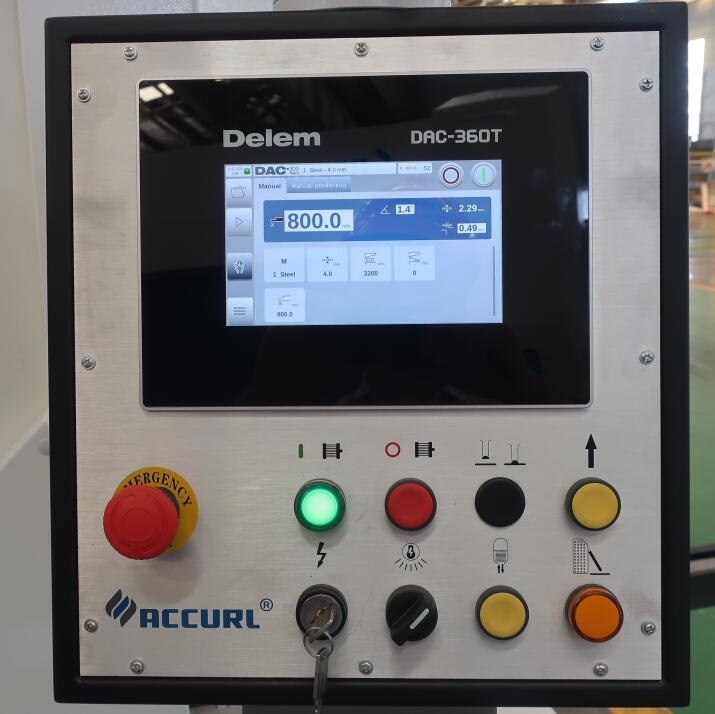

DAC360T CNC Control Unit

ACCURL has chosen the very powerful new generation DELEM DAC360T offers an higher level of efficiency in programming and control of guillotine. The winning MADE in Netherlands design and the high quality of all the construction details, guarantee prestigious performances and long product life.

SPECIFCATIONS

Type	Cut Thickness mm	Cut length mm	Shear Angle Degree	SPM min-1	Back Gauge mm	Throat Depth mm	Main Motor kw
MS7-4×2500	4	2500	1°30'	≥ 22	600	100	5.5
MS7-4×3200	4	3200	1°30'	≥ 18	600	100	7.5
MS7-4×4000	4	4000	1°30'	≥ 12	600	100	7.5
MS7-6×2500	6	2500	1°30'	≥ 16	600	120	7.5
MS7-6×3200	6	3200	1°30'	≥ 12	600	120	7.5
MS7-6×4000	6	4000	1°30'	≥ 10	600	120	7.5
MS7-6×6000	6	6000	1°30'	≥ 7	600	120	11
MS7-8×2500	8	2500	1°30'	≥ 14	600	120	7.5
MS7-8×3200	8	4000	1°30'	≥ 12	600	120	7.5
MS7-8×4000	8	3200	1°30'	≥ 10	600	120	11
MS7-10×3200	10	3200	1°50'	≥ 12	600	120	11
MS7-10×4000	10	6000	1°50'	≥ 6	600	120	18.5
MS7-12×2500	12	2500	2°	≥ 10	800	170	18.5
MS7-12×3200	12	3200	2°	≥ 9	800	170	18.5
MS7-12×4000	12	4000	1°80	≥ 8	800	170	18.5
MS7-12×6000	8	6000	2°	≥ 4	800	320	30
MS7-16×2500	16	2500	2°9'	≥ 9	800	315	18.5
MS7-16×3200	16	3200	2°	≥ 8	800	320	18.5
MS7-16×4000	16	4000	2°	≥ 7	20-1000	320	18.5
MS7-16×6000	16	6000	2°	≥ 4	20-1000	320	22
MS7-20×3200	20	3200	2°30'	≥ 5	1000	320	30
MS7-20×6000	20	6000	2°30'	≥ 4	1000	150	55
MS7-25×2500	25	2500	3°	≥ 5	1000	325	37
MS7-25×3200	25	3200	3°	≥ 5	1000	325	37
MS7-32×2500	32	2500	3°30'	≥ 4	1000	350	45
MS7-32×3200	32	3200	3°30'	≥ 4	1000	350	45

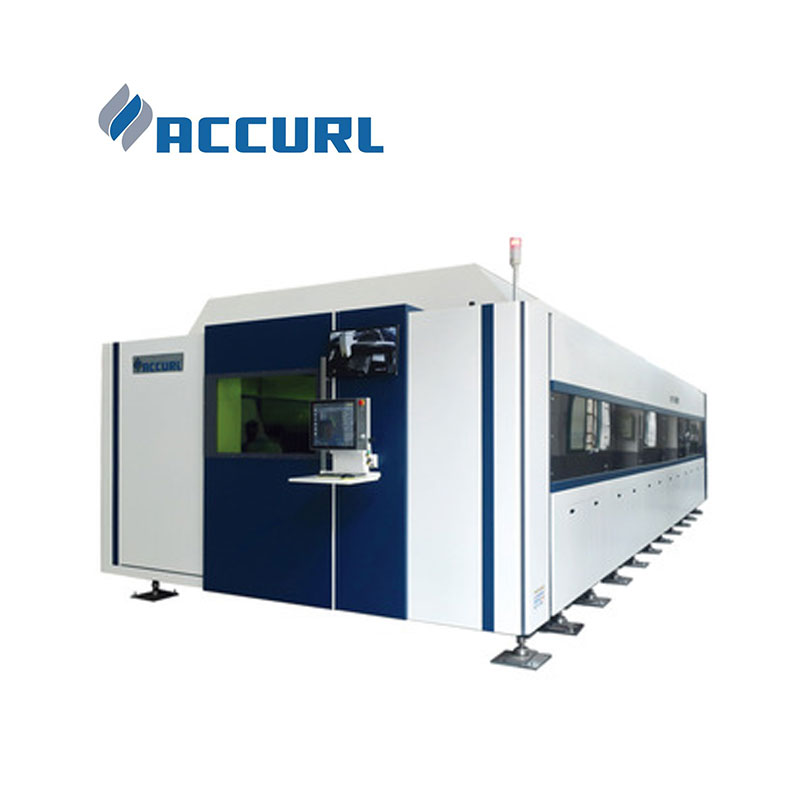

1KW Fiber Laser Cutting Machine

Hydraulic Guillotine Shearing Machine

CNC TURRET PUNCHING MACHINE

Company Profile

Why choose us?

ACCURL is a famous manufacturer of metal sheet equipments in world market. Its Brand ¡°Accurl¡± has been leading brand for many years in the field of international metal sheet equipments. Our group devote ourselves to product development, production and sales.
Our main products are: CNC Press Brake, Shears, Hydraulic press, Laser Cutter and CNC rolling machine these sheet metal processing equipments.we are using advanced technology from German, Japan, and Italy.we can produce large Hydraulic Press and Press Brake more than 16000 ton & 16m.we are with professional R&D team, and we have World-class design and manufacturing capabilities.
