Product Attributes

- Brand Name YGXTDC
- Model Number YGX601KM
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Output Analog Sensor
- Theory Resistance Sensor
- Usage Force sensor
- Related Keywords compression load cell, tension force cells, micro load cell, force sensor

Description by Manufacturer

Compression Load Cell Tension Force Cells Micro Load Cell Force Sensor Weight Sensor

Model: YGX601KM

Features & Applications:
Low deflection tension and compression load cell with metal foil strain gauge technology, made of stainless steel.
Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems

Capacity:1, 2, 5, 10, 20KN

Specification:

Rated output	1.5 ± 10% mV / V
Zero balance	± 2 % F.S.
Non-linearity	≤0.5 % F.S.
Hysteresis	0.1 % F.S.
Repeatability	0.1 % F.S.
Creep (30min)	0.1 % F.S.
Temp. effect on output	0.05 % F.S. / 10ºC
Temp. effect on zero	0.05 % F.S. / 10ºC
Input impedance	385±10Ω
Output impedance	350±5Ω
Insulation	≥5000MΩ/50VDC
Recommended excitation	10 V
Maximum excitation	15 V
Compensated temp range	- 10 ~ 60 ºC
Operation temp range	- 20 ~ 80ºC
Safe overload	150% F.S.
Ultimate overload	200 % F.S.
Cable size	Ø5×1500 mm
Protection class	IP66
Wiring	Red: + Excitation Black: - Excitation Green: + Signal White: - Signal

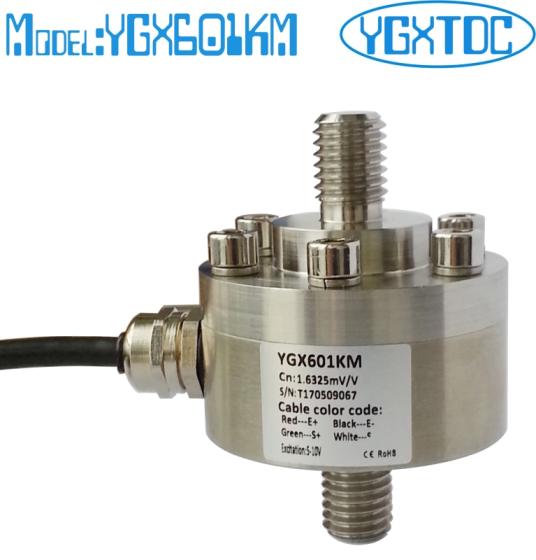

YGX601KM Product Picture

Dimensions

Custom made is available.
We can produce the products according your requirements.

Price

Price US$ 99 / Piece

Packaging & Shipping

- Packing1pc per box
- Delivery Lead Time 30 days for OEM, 7 days for ready goods
- Minimum Order 1 Piece
- Supply Ability1000pcs per months
- Total quantity in Stock1 - 10
- Delivery PortShenzhen
- Shipping Career

Product Image

Compression Load Cell Tension Force Cells Micro Load Cell Force Sensor Weight Sensor
