Product Attributes

- Brand Name Neutral
- Model Number G7 PRO
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color White
- Related Keywords HVAC fan controller

Description by Manufacturer

Overview

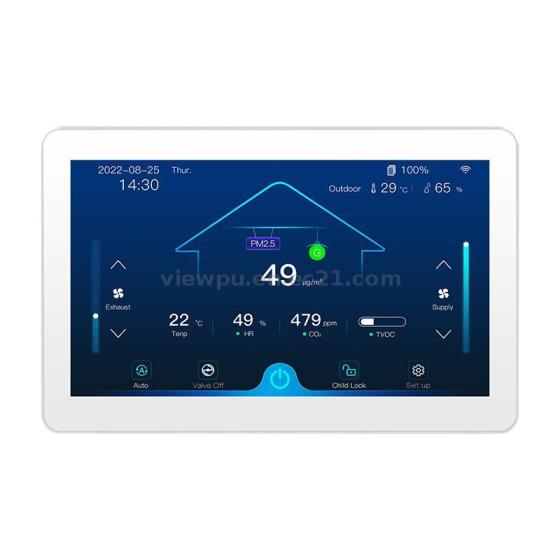

G7 pro fresh air system intelligent controller can monitor indoor temperature and humidity, PM2.5, CO2 (optional), VOC (optional), simulated formaldehyde (optional) and other data in real time; WIFI can be connected (optional); With ModBus RTU (RS485) interface, users can connect to smart home and other background monitoring equipment status through ModBus interface; 0-10V voltage signal controls the start and speed of the fan, It can be widely used in residential, commercial and industrial occasions, and can effectively improve air quality to create a healthy, comfortable, efficient, environment-friendly and energy-saving living and working environment.

Technical parameter:

* Dimension: 185×115mm * Warm-up time: 2 minutes

* Fixing hole distance: 60mm(standard) * Response time: ≤10 seconds

* Wiring terminal: Max 2.5 mm2 wire * Recovery time: ≤30 seconds

* Rated voltage: AC220V, 50/60Hz * Operation temperature: -10℃ --- +50℃

* Standby Power: ≤2.0W * Operating humidity: 5％RH——90％RH(No condensation)

* Control Power: about 200W * Storage temperature: -10℃ --- +60℃

* Output interface: 3 speed fan * Storage humidity: ≤60％RH

* Temperature display range: 0℃— 99℃ *Life: ≥ 3 years

* CO2 display range: 350ppm – 2000ppm (optional) * PM2.5 display range: 1ug/m3——999ug/m3

Certificates

- CE C8233EU011905E

Price

Price US$ 108 / Piece
