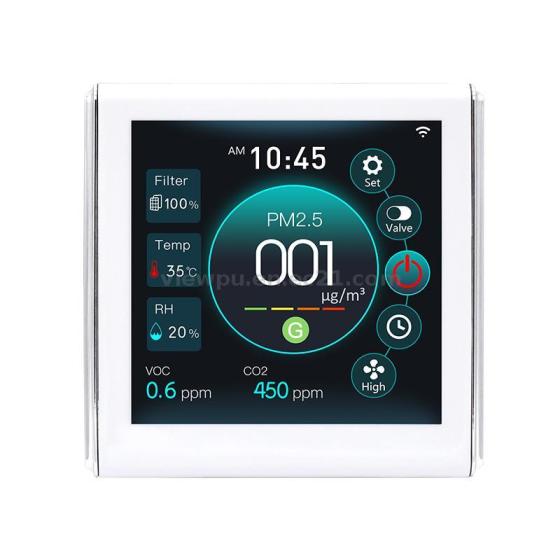

Smart 4 Inch Colorful LCD Screen Real Time Display VOC PM2.5 CO2 Temperature Humidity Used for 0-10V

Add to Basket Share to :

Price

US$ 102

Min Order Quantity1 Piece
Delivery Lead Time10 days
Payment Terms 1
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shenzhen Viewpu Technology Co., Ltd
Membership Free member
Registration Date2012.06.13
Country/RegionChina
CityShenzhen
Contact Elva Zhu(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Elva Zhu

Shenzhen Viewpu Technology Co., Ltd

* Buying Product

Category : HVAC Systems & Parts

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Nuetral
- Model Number G9
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color White
- Related Keywords HVAC fan controller

Description by Manufacturer

Overview

G9 fresh air system intelligent controller can monitor indoor temperature and humidity, PM2.5, CO2 (optional), VOC (optional), simulated formaldehyde (optional) and other data in real time; WIFI can be connected (optional); With ModBus RTU (RS485) interface, users can connect to smart home and other background monitoring equipment status through ModBus interface; 0-10V voltage signal controls the start and speed of the fan, It can be widely used in residential, commercial and industrial occasions, and can effectively improve air quality to create a healthy, comfortable, efficient, environment-friendly and energy-saving living and working environment.

Technical parameter:

* Dimension:86×86×40mm * Warm-up time: 2 minutes

* Fixing hole distance: 60mm(standard) * Response time: ≤10 seconds

* Wiring terminal: Max 2.5 mm2 wire * Recovery time: ≤30 seconds

* Rated voltage: AC220V, 50/60Hz * Operation temperature: -10℃ --- +50℃

* Standby Power: ≤2.0W * Operating humidity: 5％RH——90％RH(No condensation)

* Control Power: about 200W * Storage temperature: -10℃ --- +60℃

* Output interface: 3 speed fan * Storage humidity: ≤60％RH

* Temperature display range: 0℃— 99℃ *Life: ≥ 3 years

* CO2 display range: 350ppm – 2000ppm (optional) * PM2.5 display range: 1ug/m3——999ug/m3

Certificates

- CE C8233EU011905E

Price

Price US$ 102 / Piece

Packaging & Shipping

- Delivery Lead Time10 days
- Minimum Order 1 Piece
- Shipping Career

Product Image

Smart 4 Inch Colorful LCD Screen Real Time Display VOC PM2.5 CO2 Temperature Humidity Used for 0-10V
