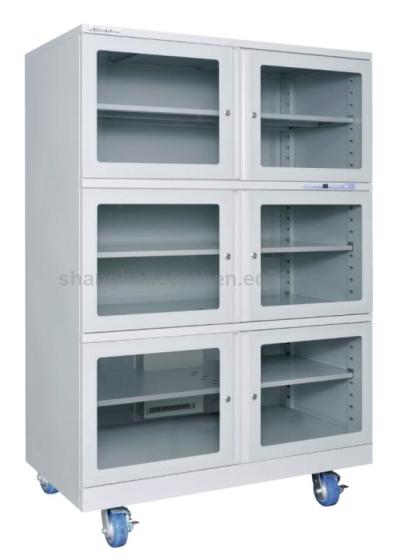

Dry Cabinet CSD-1106-03

Add to Basket Share to :

Price

US$ 3000

Min Order Quantity1 Piece
Supply Ability100 units/month
PortZhuhai
Delivery Lead Time4 weeks
Payment Terms 5
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Totech Shanghai Co., Ltd.
Membership Free member
Registration Date2009.09.18
Country/RegionChina
CityShanghai
Contact Kerry Hou(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Kerry Hou

Totech Shanghai Co., Ltd.

* Buying Product

Category : Other General Industrial Equipment

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Totech
- Model Number CSD-1106-03
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color Silver
- Related Keywords dry cabinet, dry box, 5% dry cabinet

Description by Manufacturer

Totech (Toyo Living) is the creator of world’s first Automatic Drying System invented in 1973.

Totech Super Dry cabinets use the highly-quality and highly reliable Toyo Living engine and has been sold over 700,000 units and used in over 10,000 companies around the world. We also supply various kinds of custom-build cabinet to best suit our client’s need.

1.Function

Totech Super Dry CSD-1106-03 is engineered for medium to long-term constant low humidity storage of <3%RH.

The circulation of air in the cabinet is regulated by an internal fan.

All surfaces are ESD coated in conformity with current ESD 61340-5-1 standard.

It is ideal for the moisture-proof and anti-oxidation storage of wide-ranging technologies and conforms with IPC/JEDEC J- STD 033D.

2. Applications

SUPER DRY maintains preset internal humidity levels from <3~50%RH and is ideal for moisture-proof and anti-oxidation storage applications, offering protection from corrosion, mold and deterioration for such items as:

* All kinds of Integrated Circuits (IC), like Monolithic, BGA, QFP; PLCC, Bipolar etc.

* Silicon Wafers.

* Aerospace related Instruments and Tools.

* Optical Equipment and Machine Tools.

* Watches.

* PDP Inspection Equipment, Liquid Crystal Cleaning Equipment, LCD’s, TAC’s etc.

* LED’s and LD’s.

3.Specifications:

3.1 Humidity Range: <3% (<3%~50%RH adjustable by digital panel)

3.2 sensor accuracy: ±2%RH, ±1℃

3.3 External dimensions: (W x H x D) 1200 x 1840 x 670 mm

3.4 Internal dimensions: (W x H x D) 1190 x 1560 x 620 mm

3.5 Weight: 155 kg

3.6 Capacity: 1160 L

3.7 Shelves (W x D): 5 pcs, 1157 x 490 mm, adjustable (ESD painted steel)

3.8 Max weight on shelf: 100 kg

3.9 Structure: 1.2mm Steel, ESD safe painted

3.10 Cabinet color: Gray

3.11 Door: 6 pcs, with handles, airtight magnetic sealers

3.12 ESD grounding wire: 1M Ω

3.13 Voltage: 220 V AC (110 V AC optional)

3.14 Power consumption: Ave. 28W/h

3.15 Castors: 4pcs, 2 of them with brakes

3.16 Performance of CSD-1106-03

4. Options

41Extra shelf

Greatly increase the usable space inside Super Dry

4.2 Independent Nitrogen purge system (Model TN2-02)

Effective usage of N2 combined with Super Dry, help to accelerate the recovery time and oxidation prevention. Set the buttons on N2 purge system itself

4.3 Nitrogen valve (Model: HN2-01)

Simple N2 flow meter, 0-25L/min adjustable

4.4 SMD single rack (stainless steel)

Suitable for storage of components on tape and reel, can pull out on rail

4.5 SMD double rack (stainless steel)

Suitable for storage of components on tape and reel, can pull out on rail

4.6 Adjustable legs

Available for effective stabilization

4.7 Data logger with software (model MR6662)

Data logging humidity and temperature, can read and output data by software with a PC

Price

Price US$ 3000 / Piece

Packaging & Shipping

- Packing1 unit/box
- Packaging Size138 x 85 x 193 ( Centimeters)
- Delivery Lead Time4 weeks
- Minimum Order 1 Piece
- Supply Ability100 units/month
- Total quantity in Stock1 - 10
- Delivery PortZhuhai
- Shipping Career

Product Image

Dry Cabinet Related Products

Main Export Markets

- Totech Shanghai Co., Ltd. is mainly exporting to China (Mainland), Asia, Europe, North America, South America, Australia

Company Profile

About Totech Shanghai Co., Ltd.

Membership Free member
Registration Date2009.09.18
Country/RegionChina
CityShanghai
Contact Kerry Hou(Ms.)

Totech(oyoliving)is the world's first and largest manufacturer of electronic dry cabinets. It was established in 1974 in Japan. Being an expert in industrial dehumidifying, and a specialist of Moisture Sensitive Devise (MSD), Totech operates globally to supply a diverse customer-based innovative dry storage solutions of desiccant dry cabinets. We design and supply the Super Dry ultra low humidity cabinets, with the RH% reaching1% low.

We're constantly redefining the capability of humidity reduction technology for industries including electronics, digital media, laboratories, medical and optics.

The success of Totech business in the European, American and the Pacific area aspires us to expand the market in mainland China. And in October 2008 Totech Shanghai Co, Ltd. is establised to provide better services to our valued customers.
