Product Attributes

- Brand Name totech
- Model Number HSD-1104-01
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords dry box, totech cabinet, dehumidifying cabinet

Description by Manufacturer

01 series are equipped with 2 patented dry units to constantly maintain the ultra-low humidity to minimum 1%RH to meet IPC (J-STD-033D) demands, and are ideal for the moistureproof and anti-oxidation storage of the following items. Fpr more info, pls visit www.totechglobal.com

1. Storage of all kinds of Integrated Circuits and Silicon Wafers etc
2. Storage of PDP Inspection Equipments and Liquid Crystal Cleaning Equipments etc
3. Storage of Aerospace related Instruments and Tools
4. Storage of Optional Equipments and Digital Media
5. Storage of Cultural Assets

Features of 01 Series

Advanced ultra-low humidity technology, low energy consumption.
Meets IPC/JEDEC J-STD-033D
Effective dehumidificatin to make sure a short recovery time after door open and close.
Digital control panel for easy operation.
ESD safe design.

Dehumidification principle

1.The drying agent absorbs the moisture inside the cabinet.
2.The absorption process will stop once the setting humidity level is achieved.
3.The absorbed moisture will be heated and discharged as vapor

Specifications:

1. Humidity Range: 1%~50%RH

2. Sensor precision: ±2%RH, ±1°C

3. External dimensions: (W x H x D) 1200 x 1840 x 670 mm

4. Internal dimensions: (W x H x D) 1190 x 1560 x 620 mm

5. Weight: 162kg

6. Volume: 1160 L

7. Shelves (W x D): 5 pcs, 1157 x 490 mm, adjustable (stainless steel)

8. Max weight on shelf: 100 kg

9. Structure: 1.2mm Steel, ESD safe painted

10. Cabinet color: Gray

11. Door: 4pcs, with handles, airtight magnetic sealers.

12. ESD grounding wire: 1M Ω

13. Voltage: 220 V AC (110 V AC optional)

14. Power consumption: Ave. 56 W/h

15. Castors: 4pcs, 2 of them with brakes

Options:

1. Humidity/door open alarm buzzer

Alarm buzzer sounds when its internal humidity/door open time exceeds set value

2. Humidity alarm light

Alarm light flashes and sounds when its internal humidity exceeds set value

3. Extra shelf

Greatly increase the usable space inside Super Dry

4. Nitrogen auto purge system (Model AN2-03)

Effective usage of N2 combined with Super Dry, help to accelerate the recovery time and oxidation prevention. Set on digital control panel.

5. Independent Nitrogen purge system (Model TN2-02)

Effective usage of N2 combined with Super Dry, help to accelerate the recovery time and oxidation prevention. Set the buttons on N2 purge system itself

6. Nitrogen valve (Model: HN2-01)

Simple N2 flow meter, 0-25L/min adjustable

7. SMD single rack (stainless steel)

Suitable for storage of components on tape and reel, can pull out on rail

8. SMD double rack (stainless steel)

Suitable for storage of components on tape and reel, can pull out on rail

9. Wrist strap connection

Allows grounding while handling ESD sensitive materials

10. Adjustable legs

Available for effective stabilization

11. Data logger with software (model MR6662)

Data logging humidity and temperature, can read and output data by software with a PC

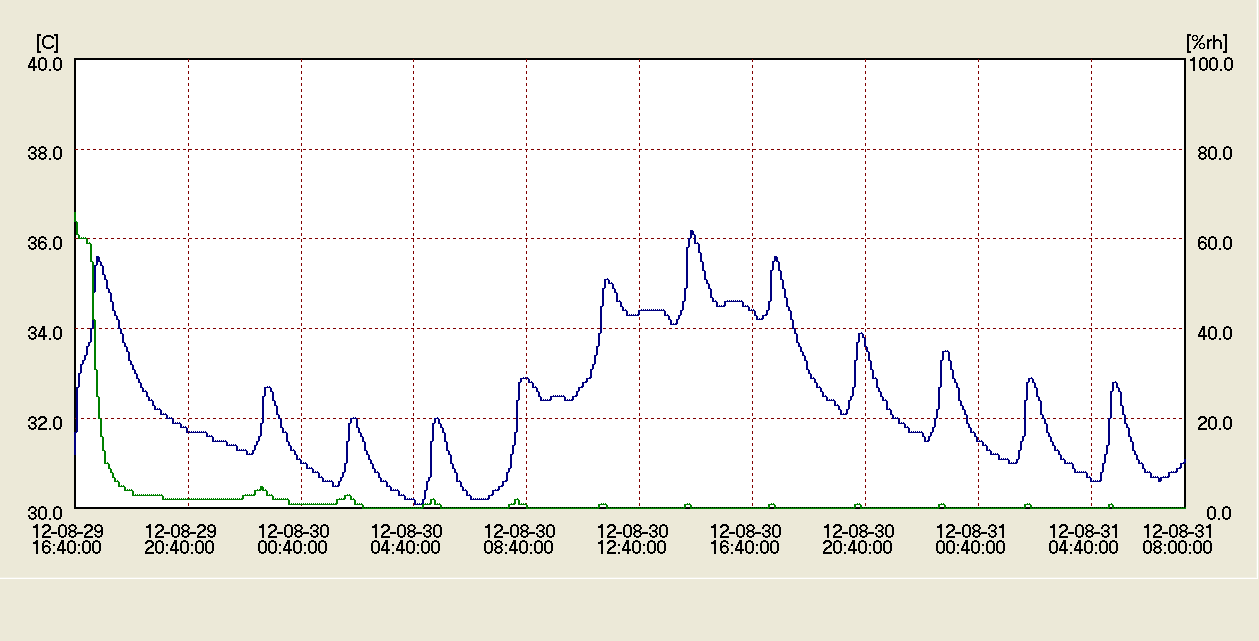

Unloaded Test of 01 Series

Price

Price US$ 3000 / Piece

Packaging & Shipping

- Delivery Lead Time4 weeks
- Minimum Order 1 Piece
- Supply Ability100 units/month
- Delivery PortZhuhai, China
- HS Code854370
- Shipping Career

Product Image

Dry Box Related Products

Main Export Markets

- Totech Shanghai Co., Ltd. is mainly exporting to China (Mainland), Asia, Europe, North America, South America, Australia

Company Profile

About Totech Shanghai Co., Ltd.

Membership Free member
Registration Date2009.09.18
Country/RegionChina
CityShanghai
Contact Kerry Hou(Ms.)

Totech(oyoliving)is the world's first and largest manufacturer of electronic dry cabinets. It was established in 1974 in Japan. Being an expert in industrial dehumidifying, and a specialist of Moisture Sensitive Devise (MSD), Totech operates globally to supply a diverse customer-based innovative dry storage solutions of desiccant dry cabinets. We design and supply the Super Dry ultra low humidity cabinets, with the RH% reaching1% low.

We're constantly redefining the capability of humidity reduction technology for industries including electronics, digital media, laboratories, medical and optics.

The success of Totech business in the European, American and the Pacific area aspires us to expand the market in mainland China. And in October 2008 Totech Shanghai Co, Ltd. is establised to provide better services to our valued customers.
