Engine Cap Riveting Machine JM12C-PLC,CNC Riveting Machine, Radial Riveting Machine

Add to Basket Share to :

Price

US$ 25000

Min Order Quantity1 Set
Supply Ability1000 /sets per month
PortShanghai
Delivery Lead Time20 days
Payment Terms 2
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Wuhan Rivet Machinery Co.,Ltd
Membership Free member
Registration Date2013.01.21
Country/RegionChina
CityWuhan
Contact Julian Zhu(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Julian Zhu

Wuhan Rivet Machinery Co.,Ltd

* Buying Product

Category : Other Metal Processing Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Rivet
- Model Number JM12C-PLC
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color Light Blue
- Color White & Blue
- Force Hydraulic
- Structure Vertical
- Principle Radial
- Purpose Engine cap process
- Related Keywords CNC riveting machine, egine cap riveting machine, riveter, radial riveting machine

Description by Manufacturer

Engine Cover Riveting Machine

Programmable control radial riveting machine is a newly developped based on

tranditional Common riveting machine, with the characteristic of stable and without

shaking during processing, smooth of surface after processed. It's a kind of exellent

equipment of mass production. This machine especially suitable to processing the

cover of car engine.

Characteristics:

A.Applied new automatic technologies

B. Programmable, simple and reliable

C. With X, Y, Z axis program control

D.Workpiece clamping automatically

E.6.5 inch LCD touch screen

F. Digital Pressure Sensor

G.Multi-safety sensors

H.Single head or multi-head available

I.Hydraulic or pneumatic as optional

J.Manual, semi auto, automatic functions

K.Display current pressure

L.Plexiglass safety covered around the machine

M.Automatic shutdown of time-lapse

N.Can reserve the connector mouth for synchronize clamp

Specification:

1. Max.pressure 20Kn

2. Max.processing ability Φ12mm

3. Cylinder strocke 30mm,60mm,80mm, as optional

4. Riveting pin length 50mm, 85mm, 120mm, as optional

5. Two-dimensional bench 600mmx350mm

6. Moves:

X-direction 600mm

Y-direction 300mm

z-direction 70mm

7. Positioning accuracy ≤0.05mm

8. Forming shape Semi-round,flate,reticulate,dish-shaped etc.

9. Physical size 1500mmx1000mmx1800mm

10.Net weight 1000Kg

Certificates

- CE 002810

Price

Price Condition FOB
Price US$ 25000 / Set

Packaging & Shipping

- Packing1 piece per box
- Delivery Lead Time20 days
- Minimum Order 1 Set
- Supply Ability1000 /sets per month
- Total quantity in Stock1 - 10
- Delivery PortShanghai
- HS Code8473697
- Shipping Career

Product Image

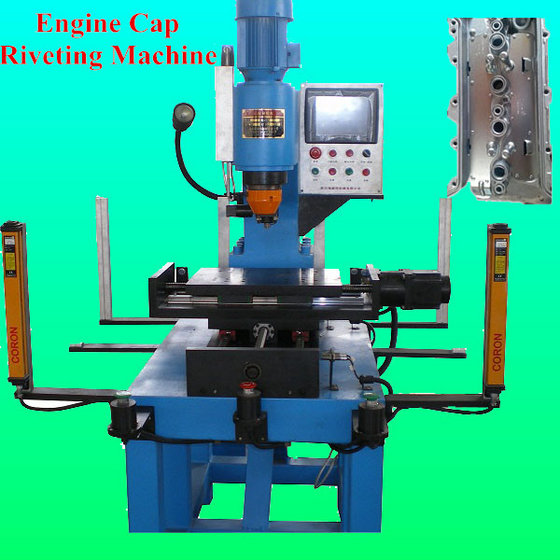

Engine Cap Riveting Machine JM12C-PLC,CNC Riveting Machine, Radial Riveting Machine

CNC Riveting Machine Related Products

Related Products from premium suppliers on EC21

- Wuhan Rivet Machinery Co.,Ltd is mainly exporting to China (Mainland), Asia, Europe, North America, South America, Australia, Africa

Company Profile

About Wuhan Rivet Machinery Co.,Ltd

Membership Free member
Registration Date2013.01.21
Country/RegionChina
CityWuhan
Contact Julian Zhu(Mr.)

As a leading provider of riveting machines and equipment in China, Wuhan Rivet Machinery designs, manufactures and supports reliable and economical riveting products for the automobile, motorcycle, aerospace, hardware and architectural industries. Our companys products and tailored services include radial riveting, orbital riveting and ladder making riveting with various features and specifications.
Wuhan Rivet Machinery is a Chinese private science and technology enterprise founded in June 2002. Our global reach has expanded over the years, making us a large manufacturer and service provider for riveting machines today. In 2012, the company partnered with Wuhan University and built the only national riveting technology research lab, to develop the third generation Wheel-hub Bearing Intelligent riveting machine and CNC Turret riveting machine. Wuhan Rivet Machinery received the prestigious High and New-tech Enterprise award from the National Government in 2012.
We have a long tradition of innovation and quality improvement. By 2012, we completed 13 large-scale projects and obtained 11 National Patents with independent intellectual copyrights. Our Double-Cylinder pneumatic riveting machine received national funding for its contribution to environmental protection and energy conservation.
Wuhan Rivet designs and builds assembly equipment solutions with more than 100 unique styles, functions and techniques, including:

Desk Top/ Vertical/ Horizontal riveting machine
Hydraulic/ Pneumatic riveting machine
Rivetless riveting machine
Self-piercing riveting machine
CNC riveting machine
Rolling machine
Auto-feed riveting machine
Riveting production line
Special purpose riveting machine (customized): hub-bearing riveting machine with intelligentized, chassis riveting machine, ladder making machine, engine cap riveting machine, wiper, aircrft brake pad riveting machine etc.
