Steering Ball PIN Riveting Machine XM20-PLC,Rolling Machine

Add to Basket Share to :

Price

US$ 20000

Min Order Quantity1 Set
Supply Ability100 sets per month
PortShanghai
Delivery Lead Time20 days fir OEM
Payment Terms 5
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Wuhan Rivet Machinery Co.,Ltd
Membership Free member
Registration Date2013.01.21
Country/RegionChina
CityWuhan
Contact Julian Zhu(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Julian Zhu

Wuhan Rivet Machinery Co.,Ltd

* Buying Product

Category : Other Metal Processing Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Rivet
- Model Number XM20-PLC
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords riveting machine, rolling machine, riveter, hyraulic riveting machine

Description by Manufacturer

XM20-PLC (Edge rolling riveter)

Characteristics:

A.Operation through LCD touch screen

B.PLC programmable control

C.Pressure display & pressure monitoring

D.Processing time can be set

E.Synchronous hydraulic fixture

F.Motor speed adjustable

G.Pressure regulation stepless

H.Auto, Manual, inching switching

I.Rolling die easy to replace

J.Error alarm function

XM20-PLC (Edge rolling riveter)

Rolling riveting machine ( closing in or flanging) is a kind of new equipment for rolling the edge, the functions are to make the work piece to forming closing in or flanging at in the perpendicular direction by tool similar to roller, it have the extensive application in different fields, such as the hooke's joint, ball joint, and bearings etc.

The products of car ball joint and hooke joint to have the higher request to the rolling technology, the capability of seal up and the moment of force are have the strict request , use the common press equipment is very difficult to get the request. In the use of rolling technology, the rolling transforms can through the calibrated scale to guarantee the precision, in this kind of case, can keep the consistency of technique request. It's pressure of seal up for mouth and transform degrees are can control and ajustable, and the transform equality, overcome strong press whole transform in a twinkling and bring great deal internal dint, crack etc. process with the rolling riveter of seal up mouth and the external appearance and quality will never be inferior to any other process of the traditional method.

Specification:

1.Max.pressure 65Kn

2.Power 4.4Kw

3.Stroke 30mm/ 60mm/ 80mm (Optional)

4.Available working space 260mm

5.Throat depth 225mm

6.Workbench adjusting 260mm

7.Workstation 2 Nos.

8.Motive force Hydraulic

9.Oil-tank volume 80L

10.Pressure oil brand 46# ISO

11.Physical size 1070mmx600mmx1930mm

12.Net weight 890Kg

Certificates

- CE 002810

Price

Price Condition FOB
Price US$ 20000 / Set

Packaging & Shipping

- PackingFumigation wooden box
- Packaging Size1200 x 1100 x 1900 ( Millimeters)
- Package Weight 1000 ( Milligrams )
- Delivery Lead Time20 days fir OEM
- Minimum Order 1 Set
- Supply Ability100 sets per month
- Total quantity in Stock1 - 10
- Delivery PortShanghai
- HS Code8463900090
- Shipping Career

Product Image

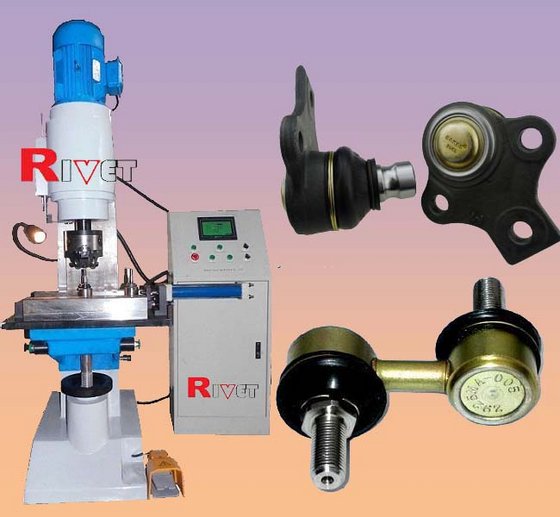

Steering Ball PIN Riveting Machine XM20-PLC,Rolling Machine
