****Water Activated Armor Wrap Bandage****
|
* 13 years profesional manufacture Armor-wrap Fiberglass Pipe Repair Bandage
* FDA CE Certfication
* OEM your size and backing
* Various Colors for Choose
* 7-15 Working Days for Delivery
* Free Samples Offered for Test
|
Welcome to contact us
Sales: eileen
Email: eileen at piperepair.cn
Mob: +86-18710743935
Skype: eileengogo7 at outlook.com
QQ: 690089213
What's APP:+8618710743935
|
Description:

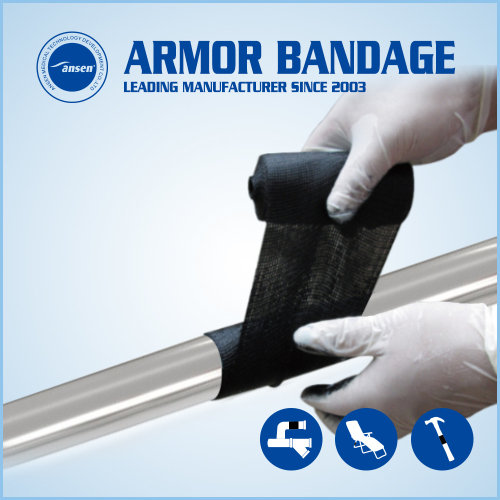

Pipe repair bandage is a fast curing tape composed of a flexible fiberglass mesh impregnated with water activated polyurethane resin.
Our pipe repair bandage uses environmental friendly materials, and mainly used for Repair Oil , Gas & Water Pipeline etc,and adheres to Metal, plaster, PVC, Copper, Rubber, Fiberglass, Concrete, Wood, Ceramic, Polyester, ect.
|
Name
|
Model
|
Size
|
Packing
|
|
Pipe Repair Bandage
|
PR002
|
50mm x 3.6m (2" x 12´)
|
10rolls x 10rolls/ctn
|
|
PR003
|
75mm x 3.6m (3" x 12´)
|
10rolls x 10rolls/ctn
|
|
PR004
|
100mm x 3.6m (4" x 12´)
|
10rolls x 10rolls/ctn
|
|
PR005
|
125mm x 3.6m (5" x 12´)
|
10rolls x 10rolls/ctn
|
|
PR006
|
150mm x 3.6m (6" x 12´)
|
10rolls x 10rolls/ctn
|
| Outstanding Advantages |
Technical Data |
|
v Catalyst: Water
v Resin Makeup: Polyurethane
v Heat Resistance: 180°C
v Pressure: 450 PSI
v Bonds: Copper pipe, PVC, polypipe, metal, fibreglass
v Set Time: 20 – 30 minutes, sets under water
v Chemical resistance: Most diluted chemicals and fuels
|
♦ Useable life: …2-3 minutes, depending on temperature of water and pipework
♦ Intial cure time: … 5 minutes
♦ Full cure time: … 30minutes
♦ Shore D hardness: … 70
♦ Tensile strength: … 30-35Mpa
♦ Tensile modulus: … 7.5Gpa
♦ Maximum service temperature: … 150℃
♦ Pressure resistance: … 450psi (Min wrapping 12 layers around cracked/leaking area)
|
|
Industry
|
Area of use
|
Reason for use
|
|
Steel Smelter Works
|
Processing: blast furnaces, water,
steam, waste product pipes
|
Emergency repairs until shutdown
|
|
Steel Sheet & Coil
Manufaturing
|
Processing: Steam and water pipes
|
Emergency repairs to burst pipes
|
|
Petroleum
|
Oil, gas, water supply lines
|
Emergency repairs to fuel,
oil and gas lines during 24hr shift
|
|
Coal, Copper & Zinc Smelter
|
Processing: blast furnaces, water, steam,
sludge, slurry lines
|
Emergency repairs
|
|
Sugar Mills
|
Corrosive fluid lines, abrasive product pipes,
general low pressure, water and steam lines
|
Emergency repairs to corrosive, water,
steam and abrasive lines
|
|
Aluminiume
|
Processing Plant: boiler rooms, sludge, slurry,
water, steam pipes
|
Emergency repairs to sludge
and chemical lines
|
|
Power Stations
|
Ash transfer systems, pulverized fuel tubes,
cooling water lines
|
Emergency repairs to transfer
systems and lines
|
|
Timber Mills
|
Processing of wood paneling,
ply and softwood
|
Emergency repairs to chemical
and water lines
|
|
Paper Manufacturing
|
Pulp Mill
|
Emergency repairs to chemical,
water and waste lines
|
|
Motor Vehicle
Manufacturing
|
Production manufacturing plant
|
Emergency repairs to leaking water
and steam pipe
|
Fiberglass Repair Tape Adhesive Pipe Repair Fix Tape

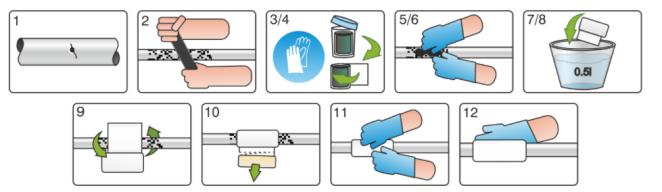

Application:
1. Once the leaking area is identified, shut down relevant pipes or hoses immediately.
2. Prepare the surface by cleaning and roughening the pipe.
3. Put on enclosed latex gloves.
4. Apply Steel Putty to the leak site and mould.
5. Open foil pouch and immerse bandage in temperate fresh water for 10 seconds.
The entire contents must be used once the package is opened.
6. Apply around the damaged area extending up to 50mm either side of the leak to ensure complete coverage.
It is important that the bandage is applied.
7. quickly as curing begins once it is taken out of the water.
8. Whilst wrapping, pull each layer tightly by using your hand to mould and squeeze the layers together.
Continue this action during and upon completion.
For best results, manufacturers recommend the completed application should be no less than 10mm in thickness. Please refer to the instructions for use on each bandage for a troubleshooting guide.
Fiberglass Repair Tape Adhesive Pipe Repair Fix Tape
Package: OEM service is available
About us: Fiberglass Repair Tape Adhesive Pipe Repair Fix Tape
Ansen medical is the manufacturer with 13 years experience specializing in fiberglass pipe repair bandage ,emergency pipe repair bandage....... Fiberglass Polyester Armor-wrap Wrap Pipe Repair Bandage
