Fluoroplastic Lined Butterfly Valve

Add to Basket Share to :

Price

US$ 1 ~ 2

Min Order Quantity1 Set
Supply Ability30,000 Sets per Month
PortNingbo
Delivery Lead Time60 days for OEM, 7 days for ready goods
Payment Terms 7
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Cnzpv Group Co.,Ltd.
Membership Free member
Registration Date2024.11.15
Country/RegionChina
CityWenzhou
Contact Samuel Yan(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name CNZPV
- Model Number ZPR810
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Material Casting
- Media acid
- Power Pneumatic
- Pressure High Pressure
- Standard or Nonstandard Standard
- Structure Butterfly
- Temperature of Media High Temperature
- Related Keywords butterfly valve, lined valve, shut-off valve, pneumatic valve

Description by Manufacturer

Fluoroplastic Lined Pneumatic Butterfly Valve(ZPR810)
Nominal Diameter: DN40-1200,NPS 1 1/2″-47″
Nominal Pressure: PN10,PN16,PN25,Class150
Connection Standard: HG20592-2009,ASME B16.5(Class 150)
Body Material: WCB,CF8,CF8M,CF3M
Temp.Range: -40℃~160℃,-40°F~320°F
Flow Characteristic: Quick-Open,Equal Percentage
Ending: Flange,Wafer
Actuator Type: Pneumatic Piston,Electric
ISO 5211 ACTUATOR ASSEMBLY

Product Overview

The ZPR810F series of fluorine-lined butterfly valves are coated with a layer of fluoroplastic on the valve’s body(seat) and disc that comes into contact with the fluid, completely cutting off the corrosive media from the metal and effectively blocking the corrosive media from corroding all metal materials. It has good sealing performance.It can be applied to any concentration of acids, bases, salts and oxidants, reducing solvents, organic solvents and other media, and can be used in chemical, petroleum, medicine, food, paper and other production fields.

Performance Characteristics

The ZPR810F Fluorine-lined butterfly Valve features a valve body(seat) and inner parts(disc) that come into contact with the fluid, which are lined with fluoroplastic through a high-temperature molding process. Additionally, the inner cavity of the metal valve body undergoes gear machining to ensure complete bonding between the lining material and metal, thereby enhancing both service life and performance. This valve effectively isolates corrosive media from contacting the valve body while preventing any corrosion of metallic materials within it. With excellent sealing performance, high-response,precise flow characteristics, it finds extensive applications in conditions involving strong corrosive media such as acids, alkalis, salts as well as volatile and penetrative gas or liquid media.

ADVANTAGES:

1. Corrosion-resistant: It can withstand the corrosion of various media, including concentrated nitric acid and aqua regia.

2. Small size and light weight, easy to install and maintenance

3. Excellent sealing performance with non-leak provides long service life.

4.Simple structure and can be quickly Open or shut-off by 90 degrees rotation.

5.Pneumatic and electric actuators can be configured according to customer requirements to meet the needs of remote control.

Certificates

- TUV CERIND1102822207003002

Price

Price US$ \ 1 ~ 2 / Set

Packaging & Shipping

- PackingCartons or woden boxes
- Delivery Lead Time60 days for OEM, 7 days for ready goods
- Minimum Order 1 Set
- Supply Ability30,000 Sets per Month
- Total quantity in Stock21 – 50
- Delivery PortNingbo
- HS Code848180
- Shipping Career

Product Image

Butterfly Valve Related Products

Main Export Markets

- Cnzpv Group Co.,Ltd. is mainly exporting to Asia, Europe, North America, South America

Company Profile

About Cnzpv Group Co.,Ltd.

Membership Free member
Registration Date2024.11.15
Country/RegionChina
CityWenzhou
Contact Samuel Yan(Mr.)

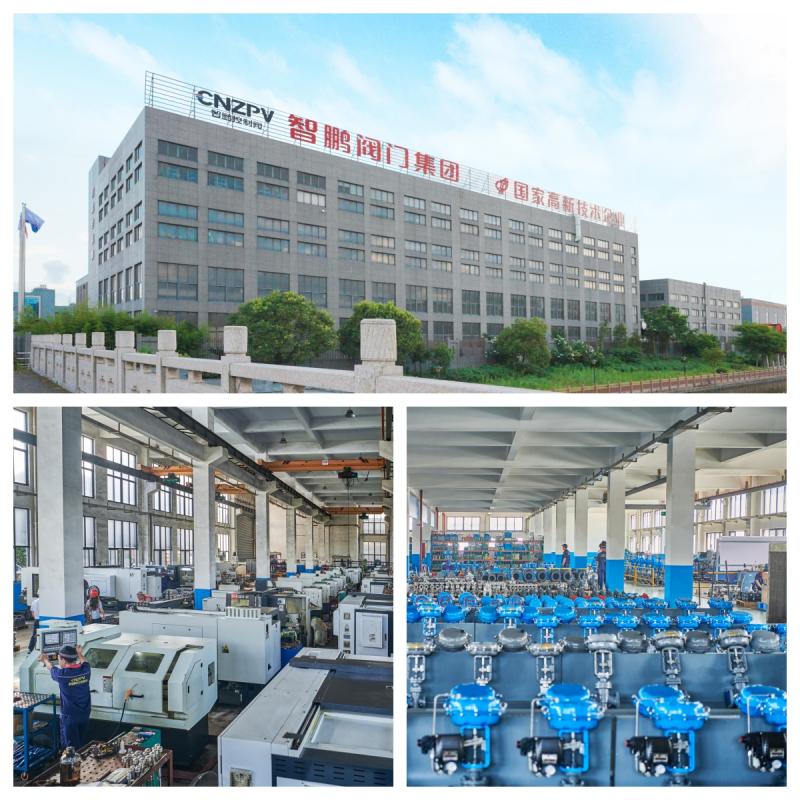

Zhipeng Valve Group Co.,Ltd is situated in Wenzhou city of Zhejiang Province.Our company has successfully obtained ISO certification,TS production licenses for metal valves and control valves. Zhipeng company has evolved into a specialized high-tech enterprise that focuses on the development and production of corrosion-resistant valves and self-control valves.
Our products range includes a series of Fluoroplastic-lined control valves,Metal control valves,Fluoroplastic-lined manual valves and pipe fittings,etc.Our valve products has found extensive applictions in the Chemical,Pharmaceutical,Petroleum,textile industry and metallurgical industries,etc.

Main products of Zhipeng:

*Fluorine Lined Control Valve Series:
Fluorine lined single-seat regulating valve, fluorine lined bellows regulating valve, fluorine lined self-operated regulating valve, fluorine lined V-type regulating ball valve, fluorine lined 0-type cut-off ball valve, fluorine lined three-way reversing ball valve, fluorine lined regulating diaphragm valve, fluorine lined cutting butterfly valve, etc.

*Metal Control Valve Series:
Cage-like single seat control valve, balanced sleeve regulating valve, self-operated regulating valve,and so on.

*Control Ball Valve Series:
soft-sealing ball valve ,hard-sealing ball valve.

*Fluorine Lined Manual Valve Series:
fluorine-lined ball valve, fluorine-lined butterfly valve, fluorine-lined gate valve, fluorine-lined diaphragm valve, fluorine-lined globe valve, fluorine-lined plug valve, and the fluorine-lined check valve.

*Pipe/Accessory Series:
Fluorine-lined sight glass, fluorine-lined sight mirror, fluorine-lined Y-type filter, fluorine-lined basket filter, and fluorine-lined instrument connector.
