Fluoroplastic Lined Disc-Rising Flush Bottom Valve

Add to Basket Share to :

Price

US$ 1 ~ 2

Min Order Quantity1 Set
Supply Ability30,000 Sets per Month
PortNingbo
Delivery Lead Time60 days for OEM, 7 days for ready goods
Payment Terms 7
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Cnzpv Group Co.,Ltd.
Membership Free member
Registration Date2024.11.15
Country/RegionChina
CityWenzhou
Contact Samuel Yan(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Contact Supplier

Product Attributes

- Brand Name CNZPV
- Model Number ZPL180
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Material Casting
- Media acid
- Power Pneumatic
- Pressure High Pressure
- Standard or Nonstandard Standard
- Structure Shutoff
- Temperature of Media High Temperature
- Related Keywords flush bottom valve, tank valve, lined valve, pneumatic valve, disc-rising type

Description by Manufacturer

Fluoroplastic Lined Flush Bottom Valve (ZPL180 Series)

Nominal Diameter: DN40-200,NPS1 1/2″-8″
Nominal Pressure: PN10,PN16,PN25
Connection Standard: HG20592-2009,ANSI B16.5,JIS B2220
Body Material: WCB,CF8,CF8M,CF3M
Temp.Range: ≤180℃(≤356°F)
Flow Characteristic:Quick-Open
Plug Type: Shut-Off
Actuator Type: Pneumatic Diaphragm

Products Overview

The flush bottom valve is primarily use for discharging materials from the bottom of reactors, tanks, and other containers. This valve is connected to the container bottom flange, effectively eliminating any residual medium typically found at the container outlet. As a specialized cutting valve predominantly employed in various storage containers' bottom. Its sleek streamlined design of the valve body flow channel and spherical single seat valve core type facilitate smooth medium flow. Widely applied in polymerization reactions, chemical fiber production, food processing, fermentation processes, and other industries; it also proves to be an ideal choice for slurry material and high-density fluid applications. When selecting valves from this series, it is crucial to consider factors such as temperature, pressure levels, adhesion properties, corrosiveness of the medium within the storage container to optimize performance under different operating conditions.

Variety & Feature Of ZPL180 Valves

● Fluoroplastic lined disc-lowering flush botom valve: ZPL182F (corrosion-resistance ,Anti-impede)

● Metal disc-lowering flush botom valve: ZPL182Y (Anti-impede)

● Fluoroplastic lined disc-rising flush botom valve: ZPL181F (corrosion- resistance, Anti-impede, Anti-scouring,anti-crystallization,Anti-blocking)

● Metal disc-rising flush botom valve: ZPL181Y (Anti-impede, Anti-scouring,anti-crystallization,Anti-blocking)

Certificates

- TUV CERIND1102822207003002

Price

Price US$ \ 1 ~ 2 / Set

Packaging & Shipping

- Packingcartons or wooden boxes
- Delivery Lead Time60 days for OEM, 7 days for ready goods
- Minimum Order 1 Set
- Supply Ability30,000 Sets per Month
- Total quantity in Stock11 – 20
- Delivery PortNingbo
- HS Code848180
- Shipping Career

Product Image

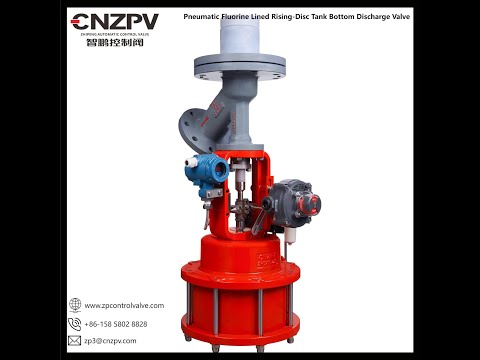

Fluoroplastic Lined Disc-Rising Flush Bottom Valve

Product Video

Flush Bottom Valve Related Products

Main Export Markets

- Cnzpv Group Co.,Ltd. is mainly exporting to Asia, Europe, North America, South America

Company Profile

About Cnzpv Group Co.,Ltd.

Membership Free member
Registration Date2024.11.15
Country/RegionChina
CityWenzhou
Contact Samuel Yan(Mr.)

Zhipeng Valve Group Co.,Ltd is situated in Wenzhou city of Zhejiang Province.Our company has successfully obtained ISO certification,TS production licenses for metal valves and control valves. Zhipeng company has evolved into a specialized high-tech enterprise that focuses on the development and production of corrosion-resistant valves and self-control valves.
Our products range includes a series of Fluoroplastic-lined control valves,Metal control valves,Fluoroplastic-lined manual valves and pipe fittings,etc.Our valve products has found extensive applictions in the Chemical,Pharmaceutical,Petroleum,textile industry and metallurgical industries,etc.

Main products of Zhipeng:

*Fluorine Lined Control Valve Series:
Fluorine lined single-seat regulating valve, fluorine lined bellows regulating valve, fluorine lined self-operated regulating valve, fluorine lined V-type regulating ball valve, fluorine lined 0-type cut-off ball valve, fluorine lined three-way reversing ball valve, fluorine lined regulating diaphragm valve, fluorine lined cutting butterfly valve, etc.

*Metal Control Valve Series:
Cage-like single seat control valve, balanced sleeve regulating valve, self-operated regulating valve,and so on.

*Control Ball Valve Series:
soft-sealing ball valve ,hard-sealing ball valve.

*Fluorine Lined Manual Valve Series:
fluorine-lined ball valve, fluorine-lined butterfly valve, fluorine-lined gate valve, fluorine-lined diaphragm valve, fluorine-lined globe valve, fluorine-lined plug valve, and the fluorine-lined check valve.

*Pipe/Accessory Series:
Fluorine-lined sight glass, fluorine-lined sight mirror, fluorine-lined Y-type filter, fluorine-lined basket filter, and fluorine-lined instrument connector.
