Essential details
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction works
Type:
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
Brick Raw Material:
Concrete; Cement; Sand; Stone; Fly ash
Processing:
Brick making machine
Method:
Hydraulic Pressure
Automatic:
Yes
Production Capacity (Pieces/8 hours):
4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 5760 pcs/8hours, 12000 pcs/8hours, 9600-11520 pcs/8hours
Place of Origin:
Shandong, China
Brand Name:
WEIDA
Voltage:
220v/380v/415v/440v
Dimension(L*W*H):
3500x2000x2890mm
Warranty:
2 Year
Key Selling Points:
Automatic
Brick size:
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm, we can design for you request
Machinery
Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2023
Warranty of core components:
2 Year
Core Components:
PLC, Gear, Motor, Bearing, Gearbox
Raw material:
Sand; Fly Ash; Cement; Concrete; Stone
Block Type:
Hollow Paving Curbstone Interlocking Solid Brock
Machine Type:
Fully Automatic Brick Block Making Machine
Product Name:
Automatic Interlocking Brick Making Machine
Pallet size:
960/900x850x25mm
Dimension of Host Machine:
3500x2000x2890mm
Weight:
8.5T
Molding cycle:
15s
Mixer Model:
JS750
Vibration force:
80-90KN
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Certification:
ISO9001/QA/CE/Intertek

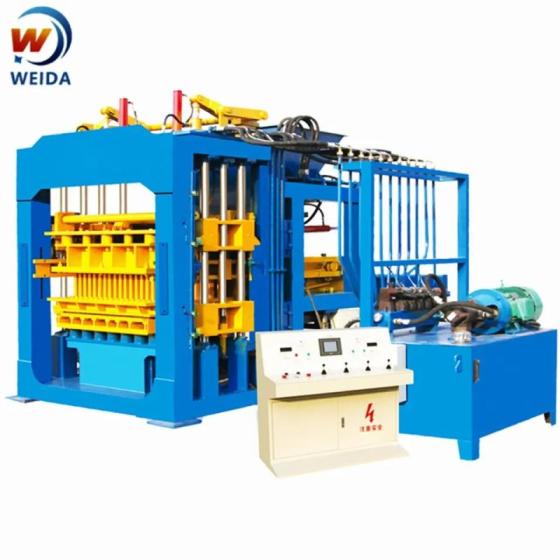

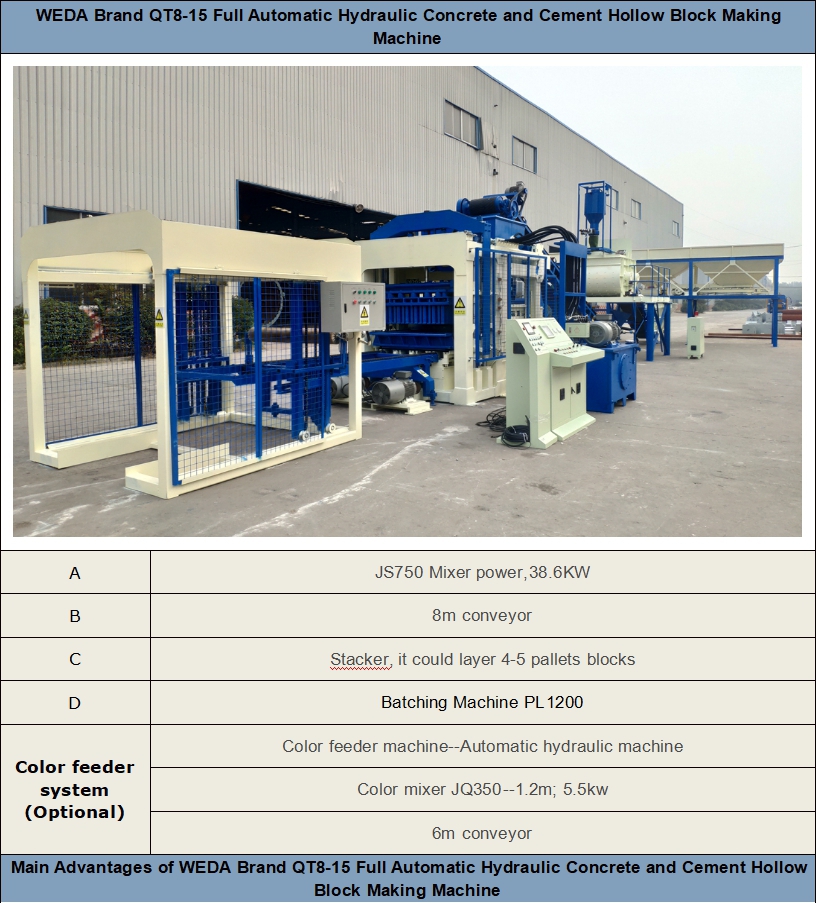

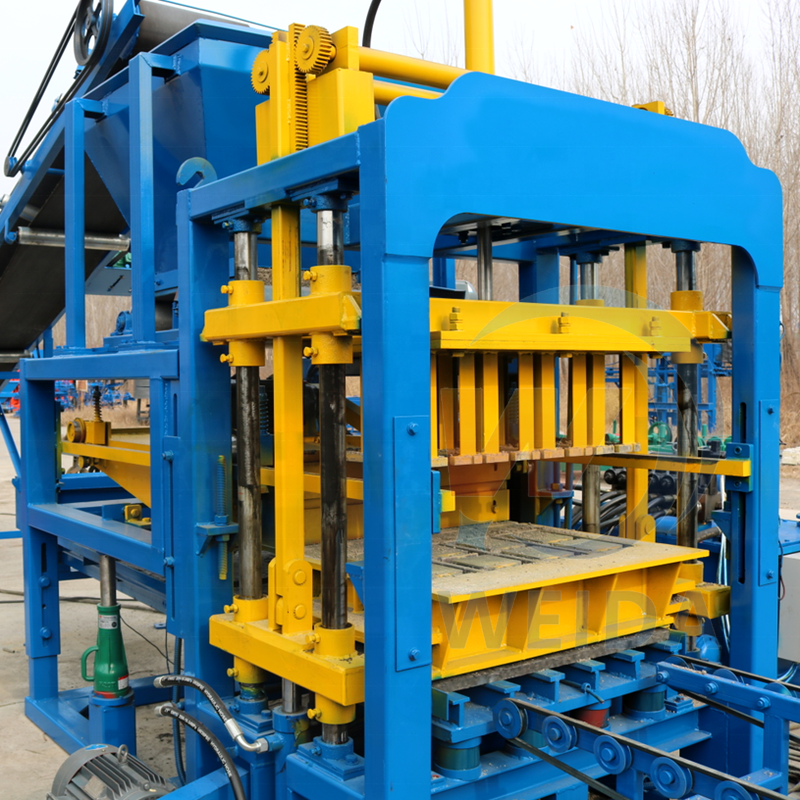

New Building Full-automation Concrete Block Making Machine Qt8-15 Interlocking Block Machine
1.It is controlled by PLC with data-transmiting device to realize person-machine conversation.Control system also includes the advanced safety logical system and fault diagnosis system,and with remote control function.
2.Electric system and hydraulic system works together with the machine.Changing the vibration form,it can realize lower frequency in feeding material and high frequency vibration.So the product with one height in a pallet.
3.The machine adopts hydraulic system and the working procedure is very even and dependable,
4. It is a practical machine that simple in structure, artistic in figure.
5.Especially suitable to the production of the standard bricks
6. The reasonable material proportion have the capacity of making highdensity standard bricks,Dimesion of host machine | 3500x2000x2890mm |
weight | 8.5T |
mould period | 15-20S |
pallet size | 960/900x850x25mm |
Vibration force | 80-90KN |
Voltage | 380/415/440V |
Mixer Model | JS750 |
Workshop area | 300m² |
Hydraulic pressure | 21MPa |
Total power of hose machine | 51.18KW |
PLC auto-control | YES |
1. PLC control System： we select original Siemens PLC combine with independently develop machine control program , assure stable and high-efficiency working status.
2. Switches and motor: Adopt Japan Omron and France Schneider brand ,
3. Motor : we will use Siemens or ABB brand .
4. Hydraulic system : Double proportional hydraulic valve for smooth operation and long service life
5. Mould: Mnaganese steeel, deal with advanced heat treatment device assure longer mould life.
and carburizing treatment will assure longer mould life span and ensure the strength of mould reach to 54-58HRC so that the mould can be used more than 100 thousand times.
6. Spare parts: follow the machine to shipment, we supply suitable wearing parts ,the after-sale services will be faster.

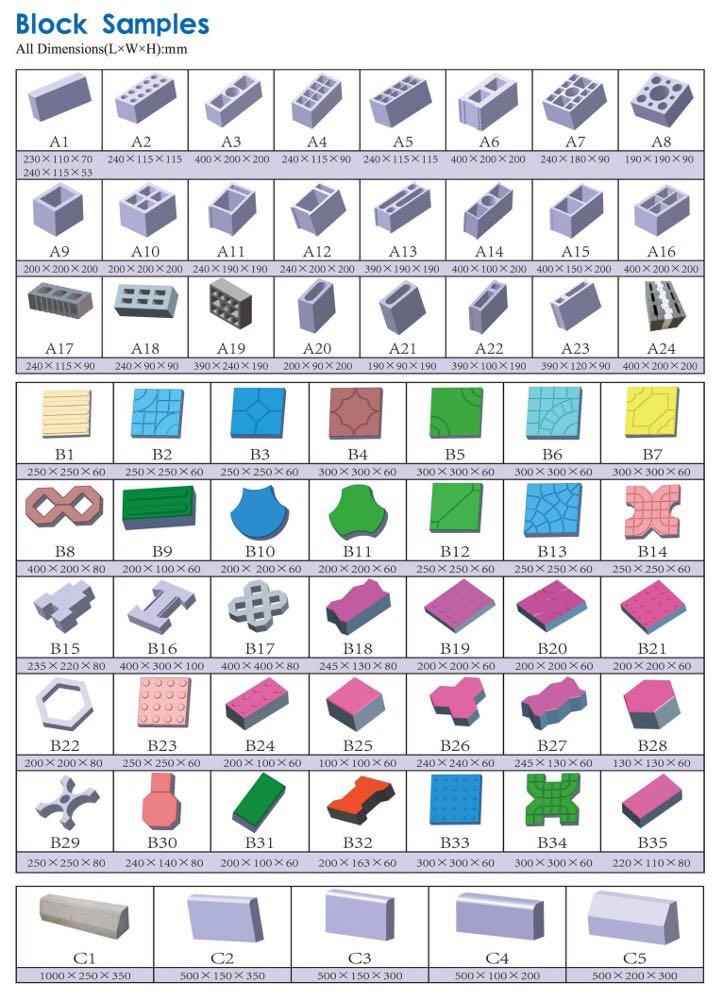

New Building Full-automation Concrete Block Making Machine Qt8-15 Interlocking Block Machine ---Brick Samples
You can choose the mould from the bellow chart and or we can design the your specific brick mould

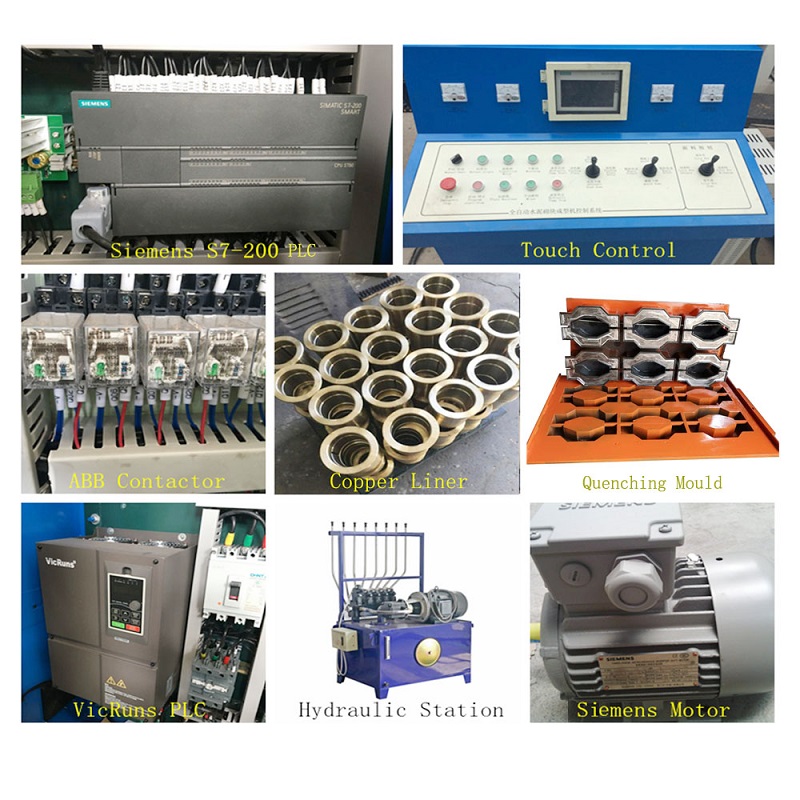

New Building Full-automation Concrete Block Making Machine Qt8-15 Interlocking Block Machine Price In Indonesia---Main Parts

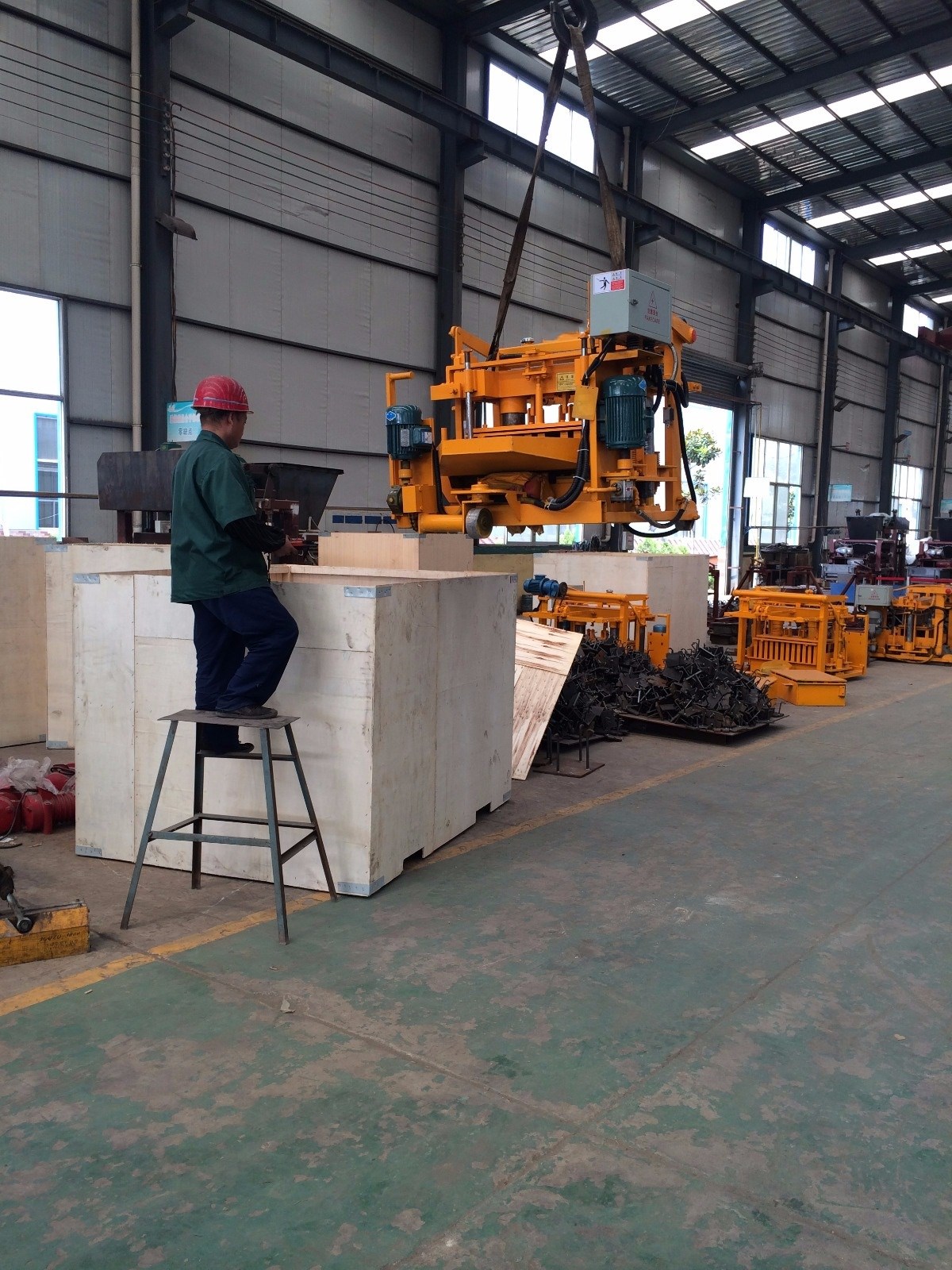

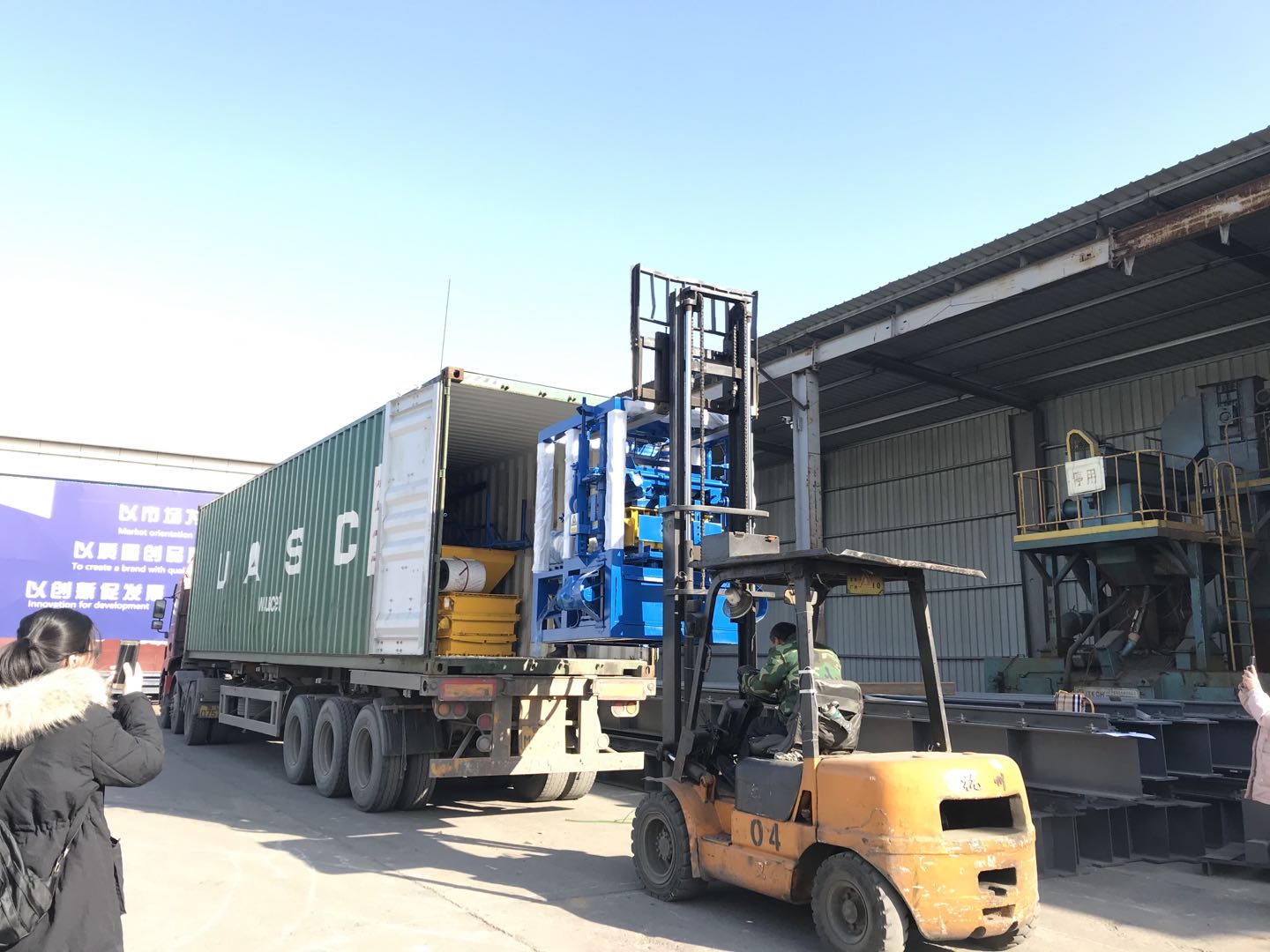

1. We use the plywood to pack the brick machine for the LCL2. This is no paking for the whole 1x20FT/1X40FT
