Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Accuracy Class 0.5
- Dimensions 495x390x195mm
- Measuring Range 500V380V300V120A
- Supply Voltage OnephaseAC100265Vfrequency6050Hz
- Related Keywords High Precision, hree Phase, Portable, Energy Meter Test Equipme

Description by Manufacturer

Product Description

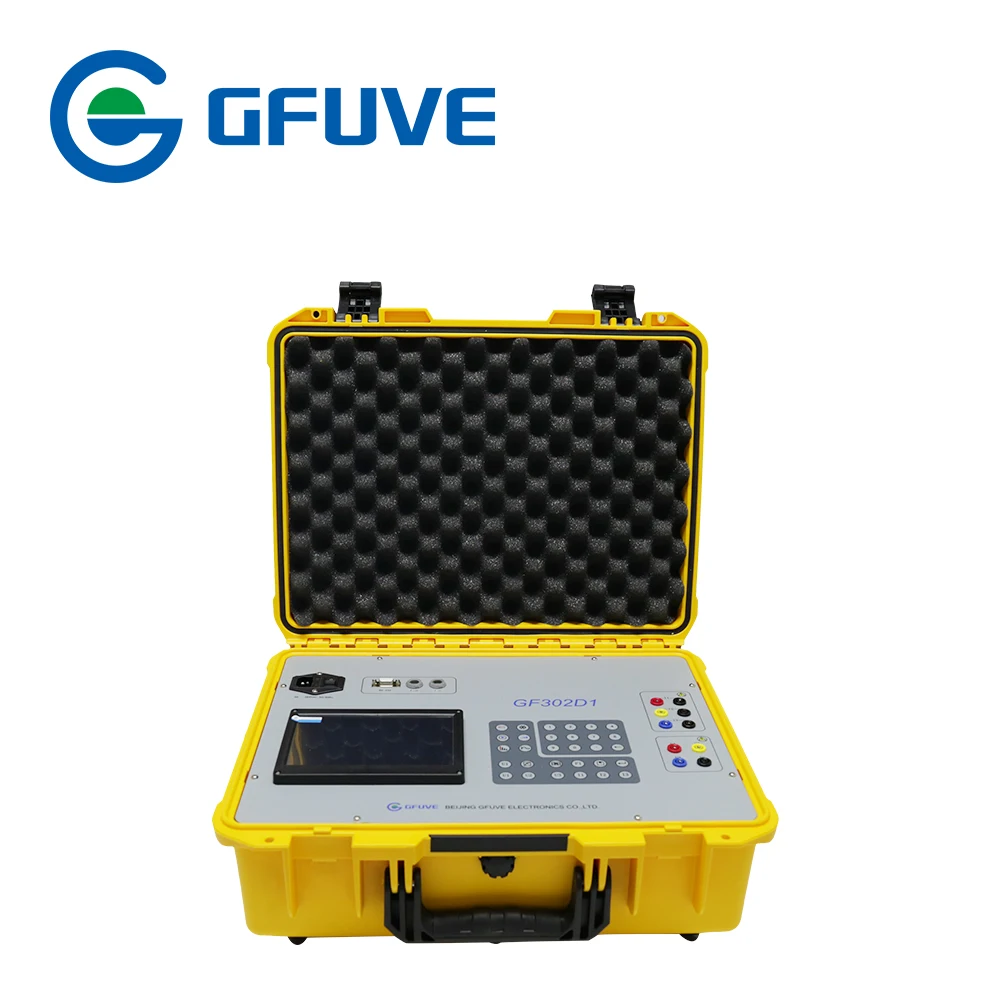

GF302D1 High Precision class 0.05% Three Phase Portable Energy Meter Test Equipment

The GF302D1 three phase portable energy meter test equipment consists of an integrated three phase current source(up to 500V/120A or 500V/20A) and built-in three-phase electronic reference standard of accuracy class 0.05%. Characteristic features of the GF302D1 are its wide measuring range, high accuracy and high tolerance to unwanted external influences. The equipment offers high functionality combined with an excellent menu guided operation via built-in keyboards and colored 7" touch LCD-display. Voltage & current harmonics output from 2 to 63 times. This model portable meter test equipment can be programmable by PC, automatic generation of energy meter error test report.

Functions

Measuring the distortion factor

User friendly menu guided operation
Energy dosing with built-in current source
Measuring mechanical meter and electric meter
Measuring frequency, phase shift and power factor
Automatic operation without need of an external PC
Easy verification and analysis of meter installations
Especially configured USB stick for storage of customer data
Testing all kinds of energy meter in 1P2W, 1P3W, 3P3W, 3P4W
Harmonic spectrum analysis for voltage and current up to the 63nd order
Power and energy measurements for active, reactive and apparent power
Vector diagram display and phase sequence indication on integrated colored screen

Features

Weight light 12.8Kg
Accuracy class 0.05
0-120A/0-500V/40-70Hz
7 inch TFT touch screen
Test by automatic or manual
Start testing and creep testing
Recorder 500 sets energy meter data
Overload, short circuit, open circuit protection
Reference standard and current source integrated

Parameters

Electrical parameters
Accuracy	0.05%, 0.1%
Power Supply	One Phase AC 100-265V, frequency 50/60Hz.
AC Voltage Output
Range(U1,U2,U3)	0-500V; 0-380V; 0-300V;
Adjustment range	(0-120)%RG⁽¹⁾
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	0.01%/120s
Distortion	0.3% (Non-capacitive load)
Output load	each phase 25VA
Accuracy	0.05%RG or 0.02%RG
AC Current Output
Range(I1,I2,I3)	0-6A; 0-12A; 0-20A; 0-50A; 0-120A;
Adjustment range	(0-100)%RG
Adjustment fineness	0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability	<0.01%/120s
Distortion	≤0.3% (Non-capacitive load)
Max Output load	20VA or 50VA;
Accuracy	0.05%RG
Power Measurement
Active power output stability	<0.01%RG/120s
Reactive power output stability	<0.02%RG/120s
Active power measuring accuracy	0.05%RG
Reactive power measuring accuracy	0.1%RG
Phase Output
Output adjustment range	0^°-359.999^°
Output adjustment fineness	10, 1, 0.1, 0.01 as optional.
Resolution	0.01^°
Accuracy	0.02^°
Power Factor
Adjustment range	-1 ~ 0 ~ 1
Resolution	0.0001
Measurement accuracy	0.0005
Frequency Measurement
Range	40Hz-70Hz
Resolution	0.001Hz
Accuracy	0.002Hz
Voltage /Current/Harmonic Setting
Harmonic number	2-63times
Harmonic content	0-40%
Harmonic phase	0-359.99
Harmonic setting accuracy	(10%±0.1%)RD⁽²⁾
Power Energy Measurement Error
Active power energy	0.05%RG
Reactive power energy	0.1%RG
Power Pulse Output
Power pulse type	active pulse, reactive pulse
Active power pulse output	5V, 10mA
Power Pulse Input
Energy pulse type	support active and reactive pulse, the highest frequency power pulse input is 200K.
Communication Port
Communication Port	RS232, USB2.0
Standard
Standard	IEC 62053-21,22, 23; IEC 60736; ANSI C12.20-2002; JJG 597-2005; JJG596-2012; JJG 1085-2013; JJF 68-2019; DL/T 826-2002; DL/T 1478-2015; DL/T 448-2016
Safety
Isolation protection	IEC 61010-1:2001
Measurement Category	300 V CAT III, 600 V CAT II
Degree of protection	IP42
Declaration of conformity	CE & CNAS certified
Mechanical parameters
Dimensions (W×D×H) (mm)	495x390x195
Weight (kg)	12.8
Environmental conditions
Ambient temperature	-10°C to +50°C
Relative humidity	35%-85%
(1) RG means range, the same as below; (2) RD means the setted harmonic content, harmonic can be a single output, also multiple output.

Price

Price US$ 35550 / Set
