GPS GSM Fuel Low-power Wireless Sensor Water Level Sensor

Add to Basket Share to :

Price

US$ 70 ~ 200

Min Order Quantity1 Piece
Supply Ability1000pcs per Month
PortChengdu
Delivery Lead Time60 days for OEM, 7 days for ready goods
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Chengdu Sentec Technology Co.,Ltd
Membership Free member
Registration Date2019.05.11
Country/RegionChina
CityChengdu
Contact Vicki Long(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.Vicki Long

Chengdu Sentec Technology Co.,Ltd

* Buying Product

Category : Level Measuring Instruments

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name SENTEC
- Model Number SWSN-L5
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color black
- Related Keywords water level sensor wireless

Description by Manufacturer

SENTEC concentrates on the advanced solutions for sensing technology, local detection, remote control and IOT system.

GPS GSM Fuel diesel low-power wireless water level sensor .jpg

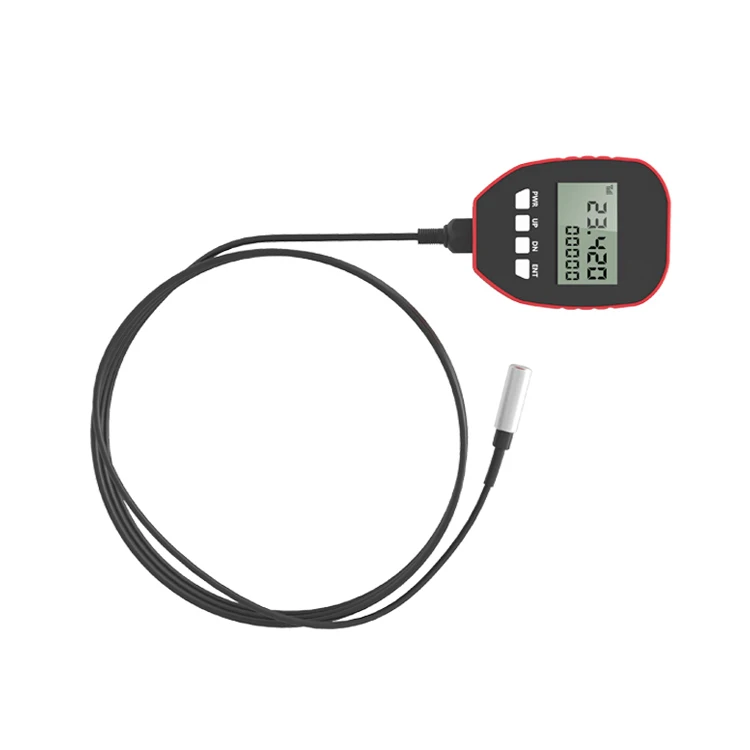

wireless water level sensor

OVERVIEW

SLS5-SWSN wireless liquid level transmitter is a high-precision, low-power radio transmission type liquid level detecting instrument independently developed by our company. Powered by lithium battery, IP68 waterproof case, support data recording and data refill function, no wiring, no external power supply, eliminating the trouble of conventional instrument wiring cable tray, saving manpower and construction cost, is traditional input liquid level detection The ideal upgrade of the instrument.

MAIN FEATURES

With level display, wireless transmission, data recording (optional), data retransmission (optional), etc. functions
Ultra low power consumption, 5 seconds sampling interval battery life 3 years optional (normal temperature)
Own network protocol with low power and long distance characteristics, 1000 meters in sight and 5000 meters (optional)
Honeycomb network expansion with wireless repeaters of the company's own intellectual property rights
Wireless transmission network SWSN ad hoc network, 2G, 4G, NB optional
Thread, flange, wall mount or magnet suction installation
IP68 waterproof structure, IP68 waterproof structure (optional)

OUTLINE CONSTRUCTION

temperature-controller-

SPECIFICATION

Items	Parameter
Range	0 ~200 meters
Accuracy	±0.5%FS
Working environment	-30℃~80℃, < 95% without condensation
Wireless transmission	GFSK 433M/470MHM; spread spectrum 433M/470MHM; GPRS; 4G full Netcom
Transmission distance	1.GFSK line of sight 1000 meters (normal barrier environment 80-160 meters) 2.Spread spectrum line of sight is 5,000 meters (normal barrier environment 500-1000 meters) 3.GPRS, 4G full Netcom distance unlimited (depends on mobile communication operator network)
Data transmission	1.Timing transmission: transmission interval adjustable from 1~ 255 seconds 2.Deviation transmission: data will automatically transmit when the deviation between the measured value and the last sent value is greater than the set value.
Data storage	2000 (optional)
Data re-delivery	GPRS only, 4G GSM network model (optional)
Power supply battery	built-in 3.6V lithium battery 7000mAh
Coordination agreement	SWSN own agreement
Standby power	less than 0.03 mA
Sound and light alarm	built-in sound and light alarm 75dB intermittent sound (optional)
Battery life	5 years (data sampling interval 5 seconds GFSK mode 25 °C test)
Wetted material	304 stainless steel, 316, 316L, etc.
Housing material	1Cr18Ni9Ti or Aluminum alloy
Process connections	threads, flanges, etc.
Cable material	polyethylene, polyurethane, polytetrafluoroethylene
Explosion-proof grade	ExdllCT6 (optional)
Protection level	IP68
Size	987639mm (header part)
Product weight	less than 500g (header part)

Hot Product

MEASURING PRINCIPLE

INSTALLATION

a. Installation in still water (deep well, pool, liquid tank)

b. installation in moving water

Method 1: When the medium fluctuates greatly, a steel pipe is inserted into the water channel, and the internal strength is about 4.5, and a small number of holes are formed at different heights on the opposite side of the water flow direction, so that the flowing water enters the pipe.

Method 2: When the medium fluctuates greatly, it is also possible to filter the sediment by adding a damping device and eliminate the adverse effects of dynamic pressure and waves to ensure measurement accuracy.

.jpg

Applicaion

_20190409103937

Company Profile

gongsi

Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.

Q:Could I visit your f

Price

Price US$ \ 70 ~ 200 / Piece

Packaging & Shipping

- Delivery Lead Time60 days for OEM, 7 days for ready goods
- Minimum Order 1 Piece
- Supply Ability1000pcs per Month
- Total quantity in Stock701 – 1000
- Delivery PortChengdu
- HS Code9030409000
- Shipping Career

Product Image

GPS GSM Fuel Low-power Wireless Sensor Water Level Sensor

Water Level Sensor Wireless Related Products

Download Product Brochure

LEVEL.pdf (1.19 Mb)

Company Profile

About Chengdu Sentec Technology Co.,Ltd

Membership Free member
Registration Date2019.05.11
Country/RegionChina
CityChengdu
Contact Vicki Long(Ms.)

SENTEC concentrates on the research and innovation of the pressure sensing technology and keeps developing the high-quality and advanced solutions from the accumulated sensor experiences over last two decades. For decades, SENTEC quality guaranteed products insist strictly manufactured in accordance with ISO, CE directive and fully RoHS compliant. On the basis of large-scaled production factories and international excellent devices, SENTEC inspections, tests and calibrations are well recognized throughout the world with experienced OEM service. SENTEC has been won well reputation and great trust from thousands of customers all over the world with professional teams of design, research and development experts, sales and after-sales technical services.The advance solutions, superior quality, reliable performance, customer satisfaction and excellent technical services are always our sole and eternal goal.
