High efficiency liquid measuring device water level sensor wireless
water level sensor wireless
OVERVIEW
SLS2-SWSN wireless input type level transmitter is a high-precision, low-power radio transmission type liquid level detecting instrument independently developed by our company. Powered by lithium battery, IP65 waterproof cast aluminum casing, support data recording and data refill function, no wiring, no external power supply, eliminating the trouble of conventional instrument wiring cable tray, saving manpower and construction cost, is a traditional float / The ideal upgraded product of magnetic flap liquid level measuring instrument.
MAIN FEATURES
- With level display, wireless transmission, data recording (optional), data retransmission (optional), etc. functions
- Ultra low power consumption, 5 seconds sampling interval battery life 3 years optional (normal temperature)
- Own network protocol with low power and long distance characteristics, 1000 meters in sight and 5000 meters (optional)
- Honeycomb network expansion with wireless repeaters of the company's own intellectual property rights

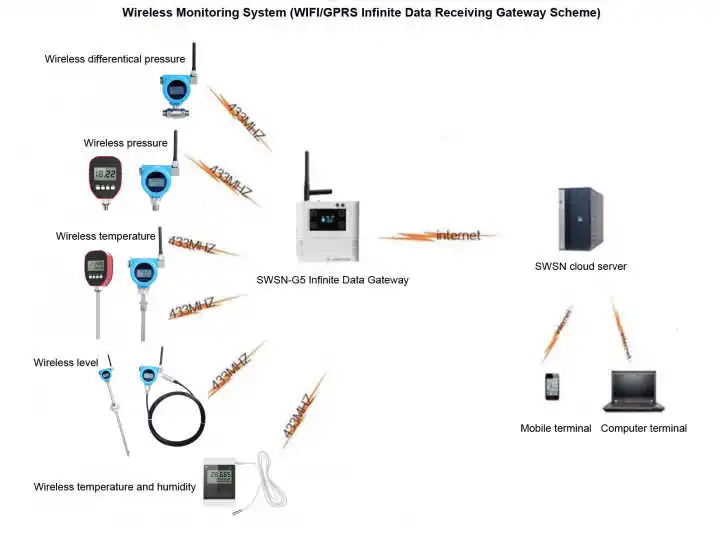

- Wireless transmission network SWSN ad hoc network, 2G, 4G, NB optional
- Thread, flange, wall mount or magnet suction installation
- IP68 waterproof structure, IP68 waterproof structure (optional)
OUTLINE CONSTRUCTION
SPECIFICATION
Items | Parameter |
Range | 0 ~200 meters |
Accuracy | 0.5% |
Working environment | -30℃~80℃, < 90% without condensation |
Wireless transmission | GFSK 433M/470MHM; spread spectrum 433M/470MHM; GPRS; 4G full Netcom |

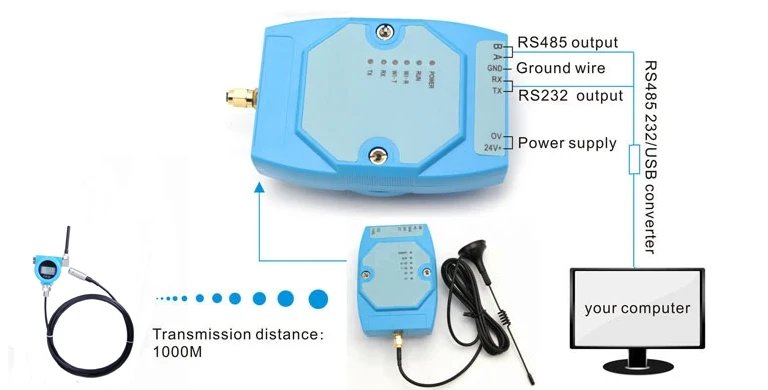

Transmission distance | 1.GFSK line of sight 1000 meters (normal barrier environment 80-160 meters) 2.Spread spectrum line of sight is 5,000 meters (normal barrier environment 500-1000 meters) 3.GPRS, 4G full Netcom distance unlimited (depends on mobile communication operator network) |
Data transmission | 1.Timing transmission: transmission interval adjustable from 1~ 255 seconds 2.Deviation transmission: data will automatically transmit when the deviation between the measured value and the last sent value is greater than the set value. |
Data storage | 2000 (optional) |
Data re-delivery | GPRS only, 4G GSM network model (optional) |
Power supply battery | built-in 3.6V lithium battery 7000mAh |
Coordination agreement | SWSN own agreement |
Standby power | less than 0.02 mA |
Sound and light alarm | built-in sound and light alarm 75dB intermittent sound (optional) |
Battery life | 3 years (data sampling interval 3 seconds GFSK mode 25 °C test) |
Wetted material | 316L stainless steel |
Housing material | 1Cr18Ni9Ti or Aluminum alloy |
Process connections | threads, flanges, etc. |
Explosion-proof grade | ExdllCT6 (optional) |
Protection level | IP65 |
Size | 115*210*110mm (sensor part not included) |
Product weight | less than 1500g (header part) |
MEASURING PRINCIPLE
INSTALLATION
a. Installation in still water (deep well, pool, liquid tank)
b. installation in moving water
Method 1: When the medium fluctuates greatly, a steel pipe is inserted into the water channel, and the internal strength is about 4.5, and a small number of holes are formed at different heights on the opposite side of the water flow direction, so that the flowing water enters the pipe.
Method 2: When the medium fluctuates greatly, it is also possible to filter the sediment by adding a damping device and eliminate the adverse effects of dynamic pressure and waves to ensure measurement accuracy.
