High Resolution Miniature Stepper Motor / 2 Phase Micro Stepper Motor VSM1069

Add to Basket Share to :

Price

US$ 3 ~ 7

Min Order Quantity1 Piece
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Changzhou Vic-Tech Motor Techology Co., Ltd.
Membership Free member
Registration Date2023.02.22
Country/RegionChina
CityChangzhou
Contact Allen Lee(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Related Keywords Stepper Motor, Micro Stepper Motor, linear stepper motor, geared stepper motor

Description by Manufacturer

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	VIC-TECH
Certification:	RoHS
Model Number:	VSM1069

Payment & Shipping Terms:

Minimum Order Quantity:	1Unit
Price:	$3~$7/Unit
Packaging Details:	Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box. Lead Time : 30 Days After Deposit
Delivery Time:	15-30 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000000 Units/year

STEP ANGLE(DEGREES)::	18 Degree	PHASE:	2
VOLTAGE:	3.0 V	RESISTANCE:	15 Ω±10%
WEIGHT:	5.5 G	ROTATION:	CW/CCW
TYPE:	Permanent Magnet	HOLDING TORQUE:	3.0 Gf.cm~3.8 Gf.cm
HIGH LIGHT:	micro planetary gear motor , pm stepper motor , High Resolution Miniature Stepper Motor

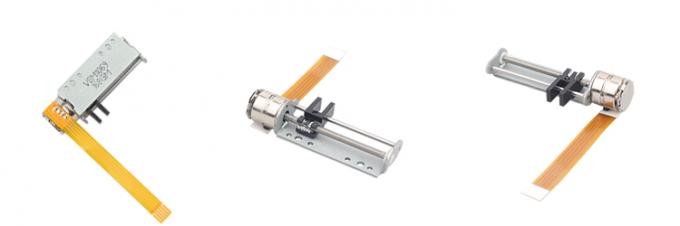

This is a special precious micro stepper motor (or say liner stepper motor)with a bracket and movable slide( when motor rotate, the slide will moving forward or backward ), the moving speed can controlled by the precious micro stepper motor driving pulse frequency, the moving distance can be controlled by the precious micro stepper driving pulse number. for this typical motor, when motor driving 2-2 phase, 1 pulse make the slide move 0.02 mm. the basic slide is a black plastic (POM) unit as the photo show, also the slide can customization in any shape.

High Resolution Miniature Stepper Motor / 2 Phase Micro Stepper Motor VSM1069 0

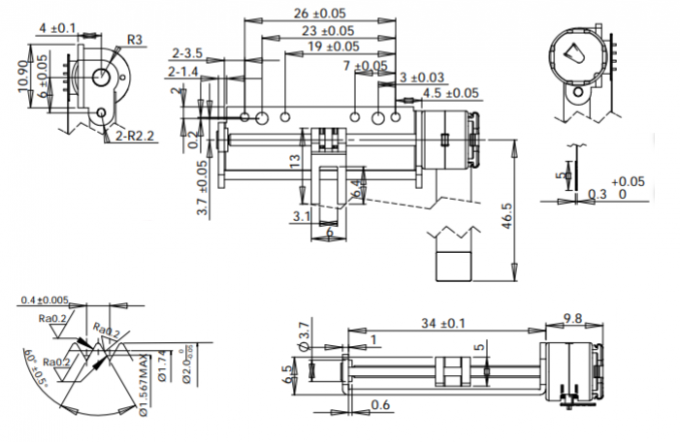

Mechanical Dimension:MM

High Resolution Miniature Stepper Motor / 2 Phase Micro Stepper Motor VSM1069 1

Typical Applications

Intelligent Security Products
Camera Lenses
Door Locks
Wearable device

Specifications

Product Name	10mm micro stepper motor
Model	VSM1069
Rated Voltage	3.0 V
Current Per Phase	200 mA /phase
Coil Resistance	15 Ω±7%
No. Of phase	2 Phases
Step Angle	18 degree
Excitation Method	2 Phase Excitation
Drive Mode	Bipolar Drive
Pull-In Torque	3.0 gf.cm At 480 pps
Pull-Out Torque	3.8 gf.cm At 480 pps
Max. Response Frequency	800 pps,No Load
Max. Starting Frequency	1100 pps,No Load
Insulation Class	Class E for Coils
Insulation Strength	300 V AC for One Second
Insulation Resistance	50 MΩ (DC 100 V)
Operating Temperature Range	-20~+70 ℃
Weight	10 g(Ref.)
OEM & ODM SERVICE	AVAILABLE

Technical FeaturesVSM1069 is a precision lead screw motor ,the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.Actuator aspects using subdivision drive way to meet.Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.

Competitive Advantage

High quality and the best price.
Fast deliver,storage company and rich inventory
Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

High Resolution Miniature Stepper Motor / 2 Phase Micro Stepper Motor VSM1069 2

High Resolution Miniature Stepper Motor / 2 Phase Micro Stepper Motor VSM1069 3

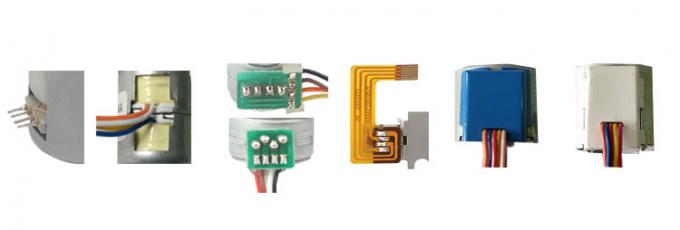

Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Product Detail Presentation

High Resolution Miniature Stepper Motor / 2 Phase Micro Stepper Motor VSM1069 5

Certificates

- CE TST202205Q32112EC

Price

Price US$ \ 3 ~ 7 / Piece

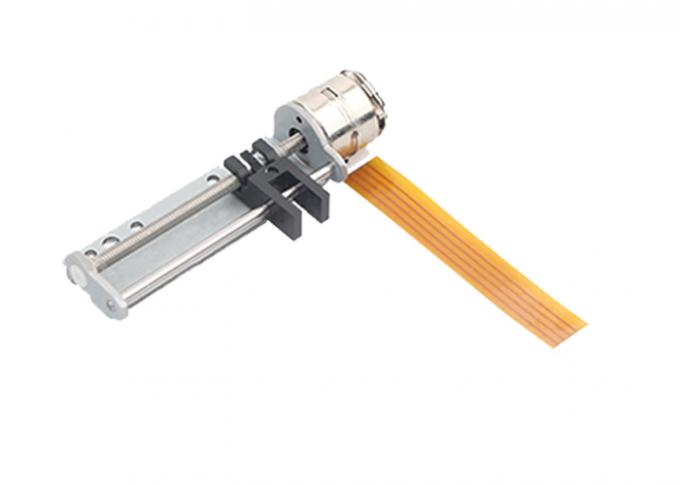

Product Image
