8V 16V ROV Propulsion Motor High Energy Saving Rate of Underwater Motor

Add to Basket Share to :

Price

US$ 19.13 ~ 33.32

Min Order Quantity1 Unit
Payment Terms 5
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Changzhou Vic-Tech Motor Techology Co., Ltd.
Membership Free member
Registration Date2023.02.22
Country/RegionChina
CityChangzhou
Contact Allen Lee(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Related Keywords Underwater Motor, Propulsion Motor

Description by Manufacturer

Product Details:

Place of Origin:	Guangdong, China (Mainland)
Brand Name:	VIC-TECH
Model Number:	SW2210A

Payment & Shipping Terms:

Minimum Order Quantity:	1Unit
Price:	$19.13-$33.32
Packaging Details:	Standard export package, or can be customized
Delivery Time:	15-30 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000000 Units/year

NO-LOAD CURRENT::	≤1000mA	LOAD CURRENT:	≤1000mA
LOAD SPEED:	2500±8%rpm	TERMINAL RESISTANCE:	50±10%mΩ
INSULATION CLASS:	12.5A	INSULATION RESISTANCE:	10mΩ Min
WEIGHT:	53g	MAX THRUST:	1.4kgf
UNDERWATER DEPTH:	200 Meter
HIGH LIGHT:	ROV Propulsion Motor , Underwater ROV Propulsion Motor , 8V ROV Thruster Motors

Durable 8V 16V ROV propulsion motor, high energy saving rate of underwater motor

SW2210 water underwater motor, beautiful appearance, small size, long life, low noise technology, high energy saving rate, large torque and high precision. Wide range of applications in precision electronic equipment, automation equipment, water and underwater equipment, aircraft model drones and intelligent robots. We are a manufacturer specializing in R&D, production and sales of underwater motors. We have a wealth of production experience, a wide range of products, and a wide range of specifications. At the same time, we are the source factory direct sales, reliable quality, large inventory, and reasonable price.

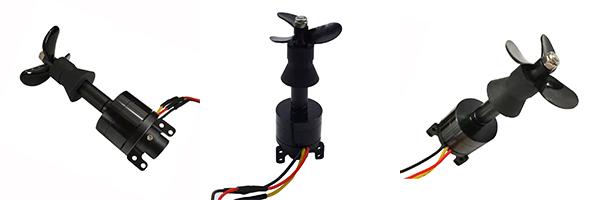

8V 16V ROV Propulsion Motor High Energy Saving Rate Of Underwater Motor 0

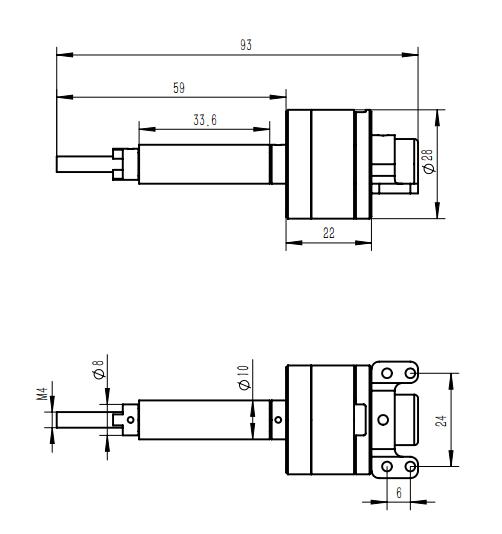

Mechanical Dimension:MM

8V 16V ROV Propulsion Motor High Energy Saving Rate Of Underwater Motor 1

Typical Applications

Precision Electronic Instrument
Automation Equipment
Underwater Equipment
Aircraft Model Drone
Smart Robot

Specifications

Model:	SW2210A with long shaft
Weight:	Long shaft 75g
Unloaded current:	0.25A/11.1V
Rated voltage:	11.1V
Rated current:	6A
Rated power:	100W
Electrical resistance(Three Phase):	0.55Ω±5%
Motor inductance:	60.5uH
Nominal torque:	0.25N.M
Rated voltage:	11.1V
Dielectric strength:	AC300V/60s ≤5mA, No breakdown on the motor
Pressure resistance:	1.5Mpa,No leakage in motor and wire

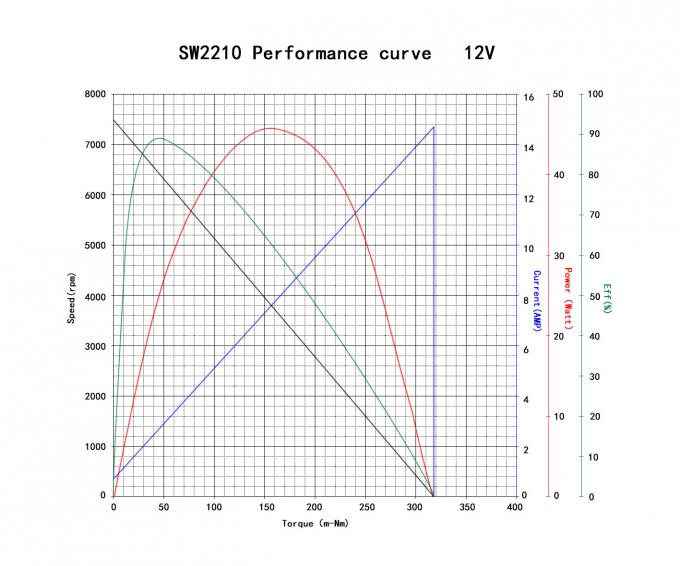

Torque Curve For Reference

8V 16V ROV Propulsion Motor High Energy Saving Rate Of Underwater Motor 2

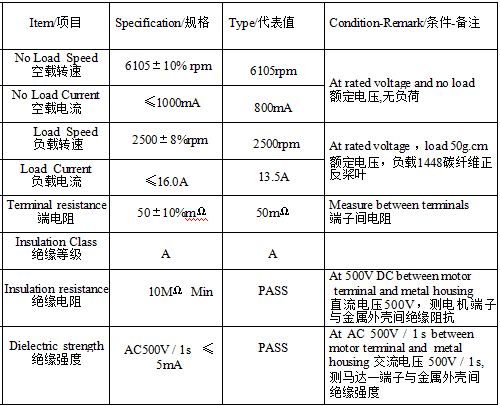

8V 16V ROV Propulsion Motor High Energy Saving Rate Of Underwater Motor 3

Product Detail Presentation

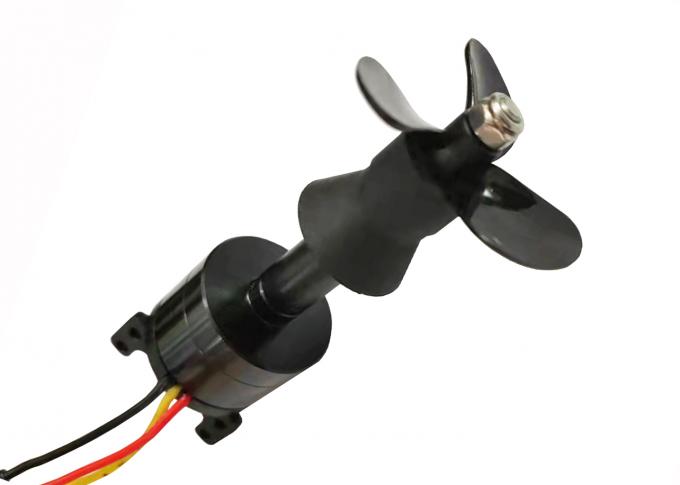

8V 16V ROV Propulsion Motor High Energy Saving Rate Of Underwater Motor 4

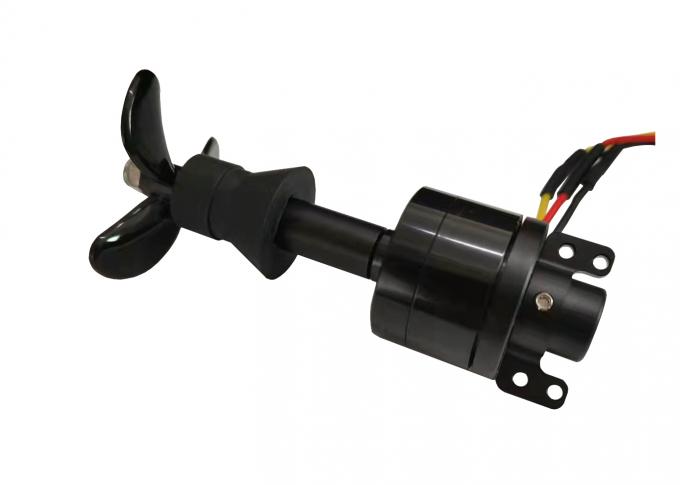

8V 16V ROV Propulsion Motor High Energy Saving Rate Of Underwater Motor 5

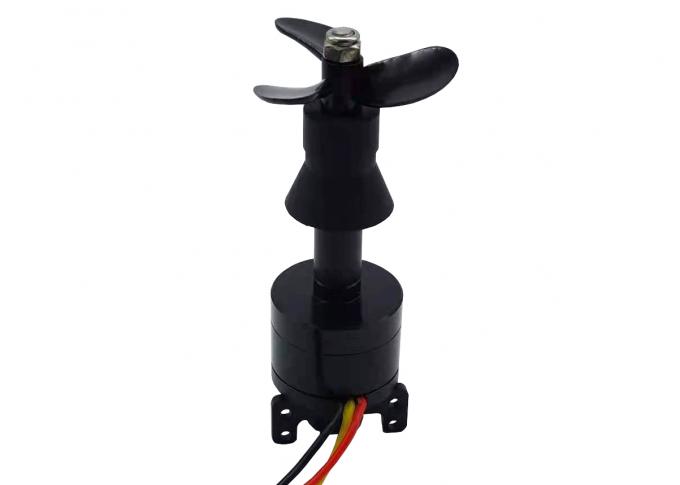

8V 16V ROV Propulsion Motor High Energy Saving Rate Of Underwater Motor 6

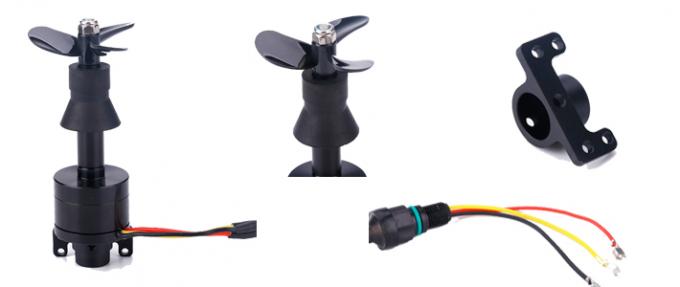

8V 16V ROV Propulsion Motor High Energy Saving Rate Of Underwater Motor 7

Certificates

- CE TST202205Q32112EC

Price

Price US$ \ 19.13 ~ 33.32 / Unit

Product Image

8V 16V ROV Propulsion Motor High Energy Saving Rate of Underwater Motor

Underwater Motor Related Products

Main Export Markets

- Changzhou Vic-Tech Motor Techology Co., Ltd. is mainly exporting to Asia, Europe, North America, South America, Australia, Africa

Company Profile

About Changzhou Vic-Tech Motor Techology Co., Ltd.

Membership Free member
Registration Date2023.02.22
Country/RegionChina
CityChangzhou
Contact Allen Lee(Mr.)

Changzhou Vic-Tech Motor Technology Co., Ltd. is a professional scientific research and production institution focusing on motor research and development, overall solution solutions for motor applications, and motor product processing and production. Changzhou Vic-Tech Motor Technology Co., Ltd. has been specializing in the production of micro motors and accessories since 2011. Our main products: micro stepper motors, gear motors, underwater thrusters and motor drivers and controllers.
The company is located in the hometown of micro motors in China - Golden Lion Technology Park, No. 28, Shunyuan Road, Xinbei District, Changzhou City, Jiangsu Province. Beautiful scenery and convenient transportation. It is almost equidistant (about 100 kilometers) from the international metropolis Shanghai and Nanjing. Convenient logistics and timely information provide customers with timely and high-quality services to provide objective guarantees.

Our products have passed ISO9000: 200. , ROHS, CE and other quality system certification, the company has applied for more than 20 patents, including 3 invention patents, and are widely used in financial machinery, office automation, electronic door locks, electric curtains, smart toys, medical machinery, vending machines, Amusement equipment, advertising equipment, security equipment, stage lighting, automatic mahjong machines, bathroom appliances, personal care beauty salon equipment, massage equipment, hair dryers, auto parts, toys, power tools, small household appliances, etc.) well-known manufacturers. The company has strong technical force and advanced equipment, adheres to the business tenet of "market-oriented, quality-centered, and reputation-based development", strengthens internal management, and improves product quality. We are backed by elite talents and deep technology, guaranteed by refined management, and developed customers with thoughtful service.
