Copper Slider Linear Stepper Motor Dia 20mm with 1kg Thrust

Add to Basket Share to :

Price

US$ 12 ~ 23

Min Order Quantity1 Unit
Payment Terms 4
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Changzhou Vic-Tech Motor Techology Co., Ltd.
Membership Free member
Registration Date2023.02.22
Country/RegionChina
CityChangzhou
Contact Allen Lee(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Related Keywords Linear Stepper Motor, Slider Stepper Motor, geared Stepper Motor

Description by Manufacturer

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	VIC-TECH
Certification:	RoHS
Model Number:	SM20-21L-T

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$12-$23/unit
Packaging Details:	Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box.
Delivery Time:	15-30 work days
Payment Terms:	Western Union, MoneyGram，Credit Card
Supply Ability:	1000000 units/year

TYPE:	Permanent Magnet	STEP ANGLE:	18°
PHASE:	2	CURRENT / PHASE:	800mA
RATED VOLTAGE:	12V 24V	COIL RESISTANCE:	15 Ω±10%
THRUST:	Over 1 KG

Heavy duty low noise SM20-21L-T 20mm diameter copper slider 1 KG thrust linear stepper motor linear actuator

This is 20mm linear motor. It has a copper slider with two linear bearing, with the help of linear bearings, the stability of slider is greatly improve.

The lead screw is regular M3*0.5P thread, so when the motor rotate one turn, slider will move one pitch (0.5mm). Step angle of the motor is 18 degree, so when the motor takes 20 steps, it will rotate one turn. Step length of this motor is 0.025mm.

This motor is very useful for precise linear control, and the thrust of the slider can reach over1 KG (over 10N of thrust)

The stroke of this motor is 21mm.(stroke means how much distance it can travel from both ends)

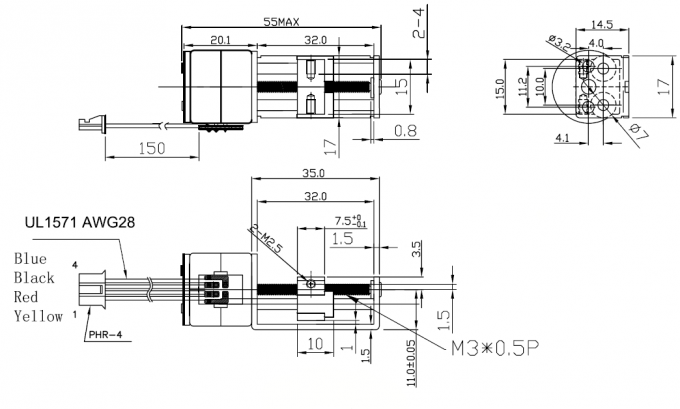

Mechanical Dimension:MM

Copper Slider Linear Stepper Motor Dia 20mm With 1kg Thrust 0

Parameters:

Model No.	SM20-21L-T
Motor type	Linear stepper motor
Phase No.	2 phases
Step angle	18 degrees
Phase resistance	15.6 Ohms/phase
Excitation method	2-2 bipolar drive
Rated voltage	5 - 12 V DC
Lead screw type	M3*0.5Pitch thread
Stroke	21mm
Pull-out thrust	Over 1200 g at 700 PPS
Max response frequency	Over 1300 PPS

Main Application

1) Camera

2) Optical instruments

3) Lenses

4) Precision medical devices

5) Automatic door locks

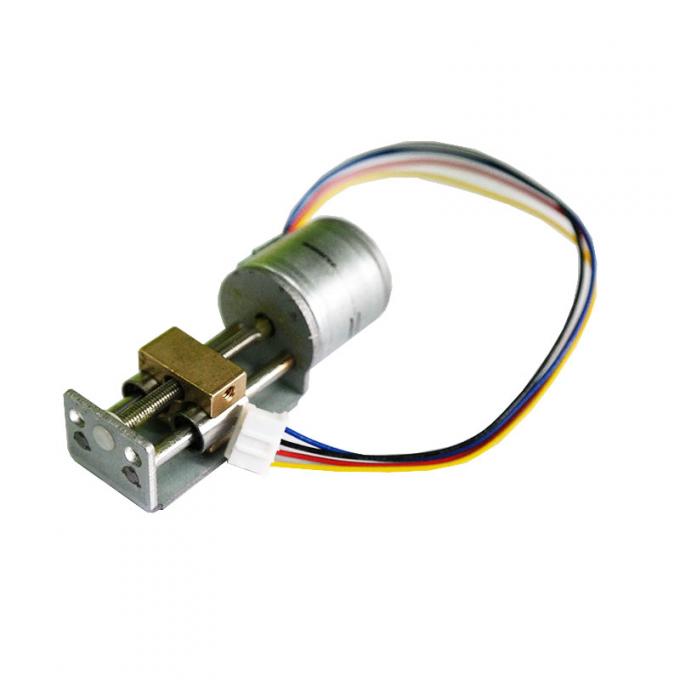

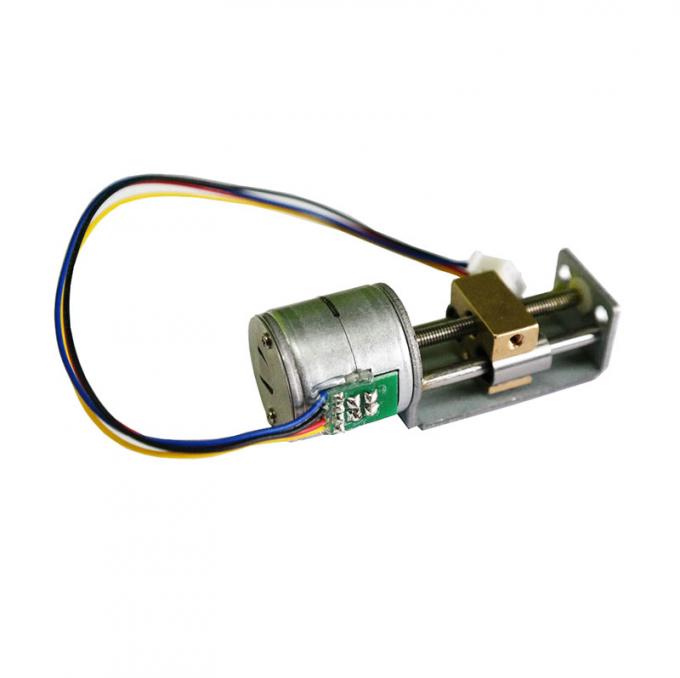

Product Detail Presentation

Copper Slider Linear Stepper Motor Dia 20mm With 1kg Thrust 1

Copper Slider Linear Stepper Motor Dia 20mm With 1kg Thrust 2

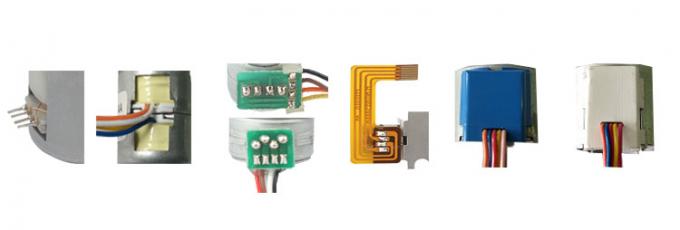

Type Of Wire Connect For Reference

The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.

Certificates

- CE TST202205Q32112EC

Price

Price US$ \ 12 ~ 23 / Unit

Product Image

Copper Slider Linear Stepper Motor Dia 20mm with 1kg Thrust

Linear Stepper Motor Related Products

Main Export Markets

- Changzhou Vic-Tech Motor Techology Co., Ltd. is mainly exporting to Asia, Europe, North America, South America, Australia, Africa

Company Profile

About Changzhou Vic-Tech Motor Techology Co., Ltd.

Membership Free member
Registration Date2023.02.22
Country/RegionChina
CityChangzhou
Contact Allen Lee(Mr.)

Changzhou Vic-Tech Motor Technology Co., Ltd. is a professional scientific research and production institution focusing on motor research and development, overall solution solutions for motor applications, and motor product processing and production. Changzhou Vic-Tech Motor Technology Co., Ltd. has been specializing in the production of micro motors and accessories since 2011. Our main products: micro stepper motors, gear motors, underwater thrusters and motor drivers and controllers.
The company is located in the hometown of micro motors in China - Golden Lion Technology Park, No. 28, Shunyuan Road, Xinbei District, Changzhou City, Jiangsu Province. Beautiful scenery and convenient transportation. It is almost equidistant (about 100 kilometers) from the international metropolis Shanghai and Nanjing. Convenient logistics and timely information provide customers with timely and high-quality services to provide objective guarantees.

Our products have passed ISO9000: 200. , ROHS, CE and other quality system certification, the company has applied for more than 20 patents, including 3 invention patents, and are widely used in financial machinery, office automation, electronic door locks, electric curtains, smart toys, medical machinery, vending machines, Amusement equipment, advertising equipment, security equipment, stage lighting, automatic mahjong machines, bathroom appliances, personal care beauty salon equipment, massage equipment, hair dryers, auto parts, toys, power tools, small household appliances, etc.) well-known manufacturers. The company has strong technical force and advanced equipment, adheres to the business tenet of "market-oriented, quality-centered, and reputation-based development", strengthens internal management, and improves product quality. We are backed by elite talents and deep technology, guaranteed by refined management, and developed customers with thoughtful service.
