Compact Linear Motion Motor , 12V 4 Lines High Torque Micro DC Motor 25BYZ-A013-C

Add to Basket Share to :

Price

US$ 6.8 ~ 42

Min Order Quantity1 Unit
Payment Terms 5
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Changzhou Vic-Tech Motor Techology Co., Ltd.
Membership Free member
Registration Date2023.02.22
Country/RegionChina
CityChangzhou
Contact Allen Lee(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Related Keywords Linear Motion Motor, Micro DC Motor, High Torque motor

Description by Manufacturer

Product Details:

Place of Origin:	China
Brand Name:	VIC-TECH
Certification:	RoHS
Model Number:	25BYZ-A013-C

Payment & Shipping Terms:

Minimum Order Quantity:	1Unit
Price:	$6.8~$42/Unit
Packaging Details:	Standard export package, or can be customized
Delivery Time:	15-30 work days
Payment Terms:	Western Union, T/T, L/C, MoneyGram
Supply Ability:	1000000 Units/year

RESISTANCE:	53Ω±10%	PHASE:	2
TYPE:	Permanent Magnet	STEP ANGLE(DEGREES):	18°
VOLTAGE:	12V	THE MARK THRUST:	20N
THE MARK PULL:	20N	MIN WORKING VOLTAGE:	6V
AFTER ALL JOURNEY:	≥22mm	WEIGHT:	40g
HIGH LIGHT:	high torque stepper motor , electric linear actuator motor

25BYZ-A013-C micro linear stepper motor 12V 4 lines high torque stepper motor for Medical Instrument

25BYZ-A013 is a special product of the company. The rotation of the motor is converted into linear motion by the relative movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile machines, printers, robots and other related fields.

At the same time, the external wiring part can use four (or five and six, also bipolar or unipolar drive) binding posts (light pins) or connecting wires, or FPC FFC PCB, etc. according to customer requirements.

The output part is linear.

Compact Linear Motion Motor , 12V 4 Lines High Torque Micro Dc Motor 25BYZ-A013-C 0

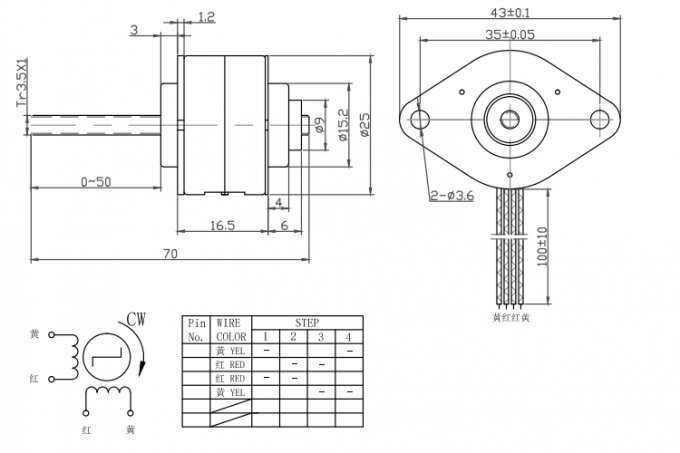

Mechanical Dimension:MM

Compact Linear Motion Motor , 12V 4 Lines High Torque Micro Dc Motor 25BYZ-A013-C 1

Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers!

Customer needs are our efforts, please feel free to contact us!

Typical Applications

Medical Equipment
Automatic Control
3D Printer
Precision Calibration
Precision Fluid Measurement
Precise Position Movement

Specifications

Product Name	25BYZ-A013-C linear stepper motor
Model	25BYZ-A013-C
Resistance	53Ω±7%
Travel Per Step Avail	0.0417mm
The Mark Thrust	20N
The Mark Pull	20N
Inductance	23.5±20% (mH)
Current Per Phase	0.23A
After All Journey	≥12mm
Protection Rate	IP30
Life	1500 000 return
Operating Temp Range	-10℃~40℃
Insulation Class	class E
Insulation Resistance	＞100MΩ
lead wrie	UL 1061 AWG26
OEM & ODM Srvice	Available

Competitive Advantage

High quality and the best price.
Fast deliver,storage company and rich inventory
Near Shanghai port, the traffic is very convenient.

Product Detail Presentation

Compact Linear Motion Motor , 12V 4 Lines High Torque Micro Dc Motor 25BYZ-A013-C 2

Certificates

- CE TST202205Q32112EC

Price

Price US$ \ 6.8 ~ 42 / Unit

Product Image

Compact Linear Motion Motor , 12V 4 Lines High Torque Micro DC Motor 25BYZ-A013-C
