Compact 10mm Mini Slider Screw Stepper Motor 18Step Angle Linear Stepping Motor

Add to Basket Share to :

Price

US$ 2.25 ~ 7

Min Order Quantity1 Unit
Payment Terms 5
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Changzhou Vic-Tech Motor Techology Co., Ltd.
Membership Free member
Registration Date2023.02.22
Country/RegionChina
CityChangzhou
Contact Allen Lee(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Related Keywords Stepper Motor, Linear Stepper Motor, Slider Screw Steppermotor, Mini Stepper Motor

Description by Manufacturer

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	VIC-TECH
Certification:	RoHS
Model Number:	VSM1069

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$2.25-$7
Packaging Details:	Selling Units: Single item plastic box inner , outer paper box Package: single carton packing, 100 - 1000 pieces per box.
Delivery Time:	10 days after the sample is paid
Payment Terms:	Western Union, MoneyGram，Credit Card,VISA,, T/T
Supply Ability:	10000 PCS 45days

TYPE:	Permanent Magnet	STEP ANGLE:	18°
PHASE:	2	CURRENT / PHASE:	0.2A
RATED VOLTAGE:	3.0V	COIL RESISTANCE:	15Ω±10%
HOLDING TORQUE:	1.5gf.cm~2.0gf.cm
HIGH LIGHT:	mini slider screw stepper motor , lead screw motor

10mm Micro slider Linear Stepping Motor Screw motor with Bracket Stepper Motor

VSM1069 is a precision lead screw motor ,the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
Actuator aspects using subdivision drive way to meet.

Compact 10mm Mini Slider Screw Stepper Motor 18° Step Angle linear stepping motor VSM1069 0

Technical Features

VSM1069 is a precision lead screw motor ,the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
Actuator aspects using subdivision drive way to meet.
Because of its small size, high precision, easy to control and other excellent characteristics, so this micro stepper motor is widely used in the camera, optical instruments, lenses, precision medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.

Main Application

1) Camera

2) Optical instruments

3) Lenses

4) Precision medical devices

5) Automatic door locks

Specifications

PRODUCT NAME	10 mm lead screw motor
MODEL	VSM1069
MAX. STARTING FREQUENCY	800PPS min. (AT 3.0 V DC)
MAX. SLEWING FREQUENCY	1200 PPS min. (AT 3.0 V DC)
PULL IN TORQUE	3.0gf-cm min. (AT 500 PPS , 3.0V DC)
PULL OUT TORQUE	3.8gf-cm min. (AT 500 PPS , 3.0V DC)
INSULATION CLASS	CLASS E FOR COILS
INSULATION STRENGTH	300 V AC FOR ONE SECOND
INSULATION RESISTENCE	50 MΩ (DC 100 V)
OPERATING TEMPERATURE RANGE	-20 ~+70 ℃
OEM & ODM SERVICE	AVAILABLE

Torque Curve For Reference

Compact 10mm Mini Slider Screw Stepper Motor 18° Step Angle linear stepping motor VSM1069 2

Compact 10mm Mini Slider Screw Stepper Motor 18° Step Angle linear stepping motor VSM1069 3

Product Detail Presentation

Compact 10mm Mini Slider Screw Stepper Motor 18° Step Angle linear stepping motor VSM1069 4

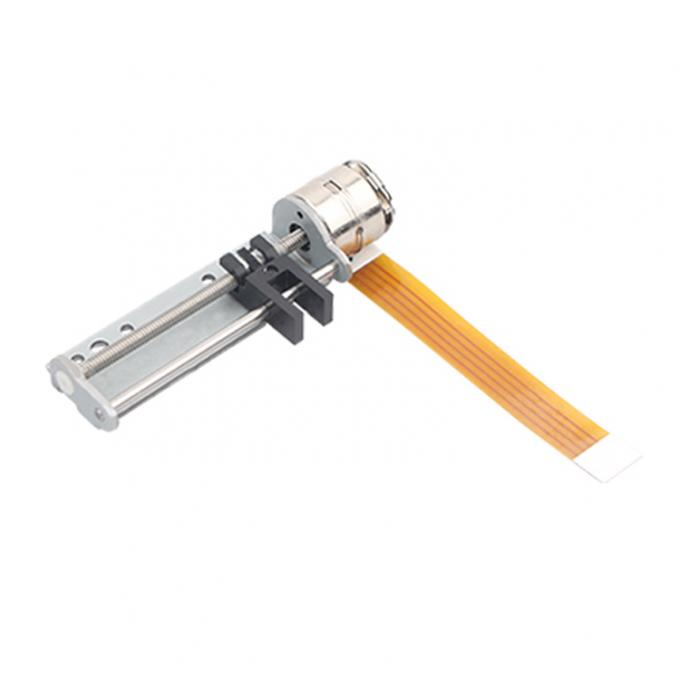

Compact 10mm Mini Slider Screw Stepper Motor 18° Step Angle linear stepping motor VSM1069 5

Type Of Wire Connect For Reference

Motor input method with Pin type,FPC, PCB, Lead wire etc. These can be customized according to customer needs.

Certificates

- CE TST202205Q32112EC

Price

Price US$ \ 2.25 ~ 7 / Unit

Product Image

Compact 10mm Mini Slider Screw Stepper Motor 18Step Angle Linear Stepping Motor

Stepper Motor Related Products

Main Export Markets

- Changzhou Vic-Tech Motor Techology Co., Ltd. is mainly exporting to Asia, Europe, North America, South America, Australia, Africa

Company Profile

About Changzhou Vic-Tech Motor Techology Co., Ltd.

Membership Free member
Registration Date2023.02.22
Country/RegionChina
CityChangzhou
Contact Allen Lee(Mr.)

Changzhou Vic-Tech Motor Technology Co., Ltd. is a professional scientific research and production institution focusing on motor research and development, overall solution solutions for motor applications, and motor product processing and production. Changzhou Vic-Tech Motor Technology Co., Ltd. has been specializing in the production of micro motors and accessories since 2011. Our main products: micro stepper motors, gear motors, underwater thrusters and motor drivers and controllers.
The company is located in the hometown of micro motors in China - Golden Lion Technology Park, No. 28, Shunyuan Road, Xinbei District, Changzhou City, Jiangsu Province. Beautiful scenery and convenient transportation. It is almost equidistant (about 100 kilometers) from the international metropolis Shanghai and Nanjing. Convenient logistics and timely information provide customers with timely and high-quality services to provide objective guarantees.

Our products have passed ISO9000: 200. , ROHS, CE and other quality system certification, the company has applied for more than 20 patents, including 3 invention patents, and are widely used in financial machinery, office automation, electronic door locks, electric curtains, smart toys, medical machinery, vending machines, Amusement equipment, advertising equipment, security equipment, stage lighting, automatic mahjong machines, bathroom appliances, personal care beauty salon equipment, massage equipment, hair dryers, auto parts, toys, power tools, small household appliances, etc.) well-known manufacturers. The company has strong technical force and advanced equipment, adheres to the business tenet of "market-oriented, quality-centered, and reputation-based development", strengthens internal management, and improves product quality. We are backed by elite talents and deep technology, guaranteed by refined management, and developed customers with thoughtful service.

Video

< null >

Tags: null

Buying Categories

- Motors >> General Industrial Equipment

Selling Categories

- General Industrial Equipment >> Motors

Keywords

Micro Stepper Motor , Permanent Magnet stepper Motor , Linear Stepper Motor , Geared Stepper Motor , DC Geared Motor , NEMA Stepper Motor

Registration Date	2023/02/22(Year/Month/Date)
Buyer / Seller in EC21	Seller
Business Type	Manufacturer
Year established	2011
Employees total	51 - 100
Annual revenue	USD 2,000,001 - 5,000,000

Contact Information Order Credit Report

Company	Changzhou Vic-Tech Motor Techology Co., Ltd.
Address	No.28,Shunyuan Road,Xinbei DistChangzhouJiangsu213000China
Phone	86 - 0519 - 86921569
Homepage	www.vic-motor.com
Contact	Allen Lee / Marketing Manager
