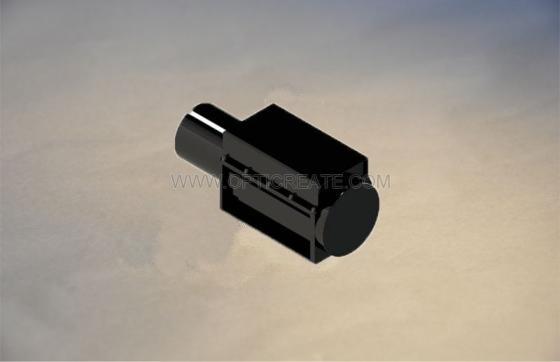

Ir Lens System
Ir Lens System Wholesale
Product Details
Extension technology production infrared optical lens is applied to the fire alarm, navigational aids, night vision patrol, the product having a compact structure, small volume, light weight and other characteristics;
Product Case:
Near infrared lens
(SWIR)
|
model
|
Near infrared 50mm
|
|
Optical parameter
|
|
Focal length (mm)
|
50 (other optional)
|
|
F/#
|
1.2
|
|
Field of view
|
18.2° × 13.7°
|
|
Working band
|
0.9 to 1.3 μm
|
|
Optional detector
|
|
Detector type
|
Focal plane array
|
|
Pixel
|
648×480
|
|
Cell size
|
25×25μm
|
|
Physical characteristics
|
|
Focusing range
|
335±20nm
|
|
Focusing mode
|
Manual
|
|
Dimensions
|
Φ60×89
|
|
Interface Type
|
Threaded interface
|
|
weight
|
|
|
Environmental parameters
|
|
Operating temperature
|
-40°C～+60°C
|
|
storage temperature
|
-40°C～+60°C
|
Infrared Optical Lens
|
model
|
SS05014
|
|
focal length
|
50mm
|
|
Work F/#
|
1.4
|
|
Working band
|
0.9 to 1.3 μm
|
|
Image size (diagonal)
|
12.8mm
|
|
Field of view (diagonal)
|
14.6°
|
|
distortion
|
<0.5%
|
|
Minimum focus distance
|
0.5m
|
|
Back distance
|
|
|
Back intercept
|
|
|
Connection size
|
|
|
Front/rear effective diameter
|
|
|
MOUNT
|
C-MOUNT
|
|
Exit distance
|
|
|
Operating temperature
|
-10°C～+45°C
|
|
storage temperature
|
-40°C～+60°C
|
Lightweight Optical Lens
|
model
|
SS02514
|
|
focal length
|
25mm
|
|
Work F/#
|
1.4
|
|
Working band
|
0.9 to 1.3 μm
|
|
Image size (diagonal)
|
12.8mm
|
|
Field of view (diagonal)
|
28.7°
|
|
distortion
|
<1.2%
|
|
Minimum focus distance
|
0.3m
|
|
Back distance
|
|
|
Back intercept
|
|
|
Connection size
|
|
|
Front/rear effective diameter
|
|
|
MOUNT
|
C-MOUNT
|
|
Exit distance
|
|
|
Operating temperature
|
-10°C to +45°C
|
|
storage temperature
|
-40°C to +60°C
|
|
model
|
SS03514
|
|
focal length
|
35mm
|
|
Work F/#
|
1.4
|
|
Working band
|
0.9 to 1.3 μm
|
|
Image size (diagonal)
|
12.8mm
|
|
Field of view (diagonal)
|
20.7°
|
|
distortion
|
<0.5%
|
|
Minimum focus distance
|
0.3m
|
|
Back distance
|
|
|
Back intercept
|
|
|
Connection size
|
|
|
Front/rear effective diameter
|
|
|
MOUNT
|
C-MOUNT
|
|
Exit distance
|
|
|
Operating temperature
|
-10°C to +45°C
|
|
storage temperature
|
-40°C to +60°C
|
Medium wave cooling dual field lens
Infrared Optical Lens Supplier
|
model
|
MD300/0752555-E
|
|
Optical parameter
|
|
Focal length (mm)
|
300/75 (180/60, 240/60...)
|
|
F/#
|
2.2 (2.5/3/4 optional)
|
|
Field of view
|
1.8°×1.5°～7.3°×5.9°
|
|
Working band
|
3.7 to 4.8 μm
|
|
Optional detector
|
|
Detector type
|
Refrigerated focal plane array
|
|
Pixel
|
320×256
|
|
Cell size
|
30×30μm
|
|
Physical characteristics
|
|
Focusing range
|
50m~∞/30m~∞
|
|
Focusing mode
|
electric
|
|
Field of view switching
|
Hub zoom
|
|
Dimensions
|
260×188×140mm
|
|
Interface Type
|
Flange interface
|
|
Environmental parameters
|
|
Operating temperature
|
-20 ° C ~ +60 ° C
|
|
(-40°C～+60°C optional)
|
Medium wave cooling multi-field lens
|
model
|
MZ900/604089-E/MZ1200/604089-E
|
|
Optical parameter
|
|
Focal length (mm)
|
60 to 900 mm (60 to 1200 mm)
|
|
F/#
|
4.0
|
|
Field of view
|
0.6°×0.5°～9.1°×7.3°
|
|
Working band
|
3.7 to 4.8 μm
|
|
Optional detector
|
|
Detector type
|
Refrigerated focal plane array
|
|
Pixel
|
640×512/320×256
|
|
Cell size
|
15×15/30×30μm
|
|
Physical characteristics
|
|
Focusing range
|
50m~∞
|
|
Focusing mode
|
electric
|
|
Field of view switching
|
Straight line zoom
|
|
Dimensions
|
460×325×230mm
|
|
Interface Type
|
Flange interface
|
|
Environmental parameters
|
|
Operating temperature
|
-20 ° C ~ +60 ° C
|
|
( -40 ° C ~ +60 ° C optional)
|
Long wave multi-field lens
|
model
|
LZ120/0201088-E
|
|
Optical parameter
|
|
Focal length (mm)
|
20～120
|
|
F/#
|
1.0
|
|
Field of view
|
5.2°×3.9°~30.4°×23.1°
|
|
Working band
|
8~12μm
|
|
Optional detector
|
|
Detector type
|
Uncooled focal plane array
|
|
Pixel
|
640×480/384×288/320×240
|
|
Cell size
|
17×17/25×25/38×38μm
|
|
Physical characteristics
|
|
Focusing range
|
50m~∞/15m~∞
|
|
Focusing mode
|
Electric / manual
|
|
Field of view switching
|
Straight line zoom
|
|
Dimensions
|
Φ130×270
|
|
Interface Type
|
Thread/flange interface
|
|
Environmental parameters
|
|
Operating temperature
|
-20 ° C ~ +60 ° C
|
|
(-40°C to +60°C optional )
|
|
model
|
Long wave refrigeration series
|
|
Optical parameter
|
|
Focal length (mm)
|
50/100/137/150
|
|
F/#
|
2.0/4.0
|
|
Field of view
|
-----
|
|
Working band
|
7.7 to 9.5 μm
|
|
Optional detector
|
|
Detector type
|
Refrigerated focal plane array
|
|
Pixel
|
320×256
|
|
Cell size
|
30×30μm
|
|
Physical characteristics
|
|
Focusing range
|
30m ~ ∞
|
|
Focusing mode
|
Electric / manual
|
|
Field of view switching
|
-----
|
|
Back distance
|
|
|
Dimensions
|
-----
|
|
Interface Type
|
Thread/flange interface
|
|
weight
|
|
|
Environmental parameters
|
|
Operating temperature
|
-40°C to +60°C
|
|
storage temperature
|
-40°C to +60°C
|
|
Optical parameter
|
|
Focal length (mm)
|
150mm/35mm
|
|
F/#
|
0.96/0.9
|
|
Field of view
|
3.7°×2.7° /15.6 °×11.7°
|
|
Working band
|
8~12μm
|
|
Optional detector
|
|
Detector type
|
Uncooled focal plane array
|
|
Pixel
|
384×288
|
|
Cell size
|
25×25μm
|
|
Physical characteristics
|
|
Focusing range
|
40m ~ ∞ / 3m ~ ∞
|
|
Focusing mode
|
electric
|
|
Field of view switching
|
Rotating hub
|
|
Back distance
|
|
|
Dimensions
|
|
|
Interface Type
|
|
|
weight
|
|
|
Environmental parameters
|
|
Operating temperature
|
-40°C to +60°C
|
|
storage temperature
|
-40°C to +60°C
|
Infrared Light Machine System
|
model
|
LS07509/08 Series
|
|
Optical parameter
|
|
Focal length (mm)
|
75mm
|
|
F/#
|
0.9/0.8
|
|
Field of view
|
7.3°×5.5° /10.2 °×7.7°
|
|
Working band
|
8~12μm
|
|
Optional detector
|
|
Detector type
|
Uncooled focal plane array
|
|
Pixel
|
384×288
|
|
Cell size
|
25μm × 25μm / 35μm × 35μm
|
|
Physical characteristics
|
|
Focusing range
|
5m ~ ∞
|
|
Focusing mode
|
Electric / manual
|
|
Back distance
|
|
|
Dimensions
|
|
|
Interface Type
|
|
|
weight
|
|
|
Environmental parameters
|
|
Operating temperature
|
-40°C to +60°C
|
|
storage temperature
|
-40°C to +60°C
|
