Product Attributes

- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Related Keywords Vis Lens System, eyepiece

Description by Manufacturer

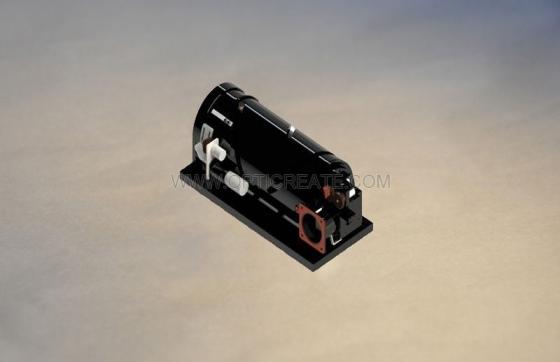

Vis Lens System

Vis Lens System For Security

Product Details

The visible light machine system designed and produced by Guangtuo Technology has clear target image in real-time during continuous zooming process, no need to adjust focus, suitable for security, monitoring and other projects, especially for high-speed moving targets.

Product Case:

Product model: 8 times eyepiece
parameter	index
Magnification	8 times
Out diameter	Φ25mm
Exit distance	30mm
Dimensional range	±5SD
Image size	0.25"
Cell size	6.35μm
distortion	< 1%
Transmission rate	≥95%
weight	≤100g
physical dimension	Φ43.4×42

Product model : 10 times eyepiece
parameter	index
Magnification	10 times
Out diameter	Φ8mm
Exit distance	25mm
Dimensional range	±5SD
Image size	0.61"
Cell size	9.4μm
Back intercept	> 10mm
Adjustment method	Hand move
weight	≤80g
physical dimension	Φ52×60.1

Opticreate Vis Lens System

Product model : 14 times eyepiece
parameter	index
Magnification	14 times
Out diameter	Φ6mm
Exit distance	20mm
Dimensional range	±5SD
Image size	0.4"
Cell size	6.35μm
Back intercept	> 10mm
Adjustment method	Hand move
weight	≤75g
physical dimension	Φ49× ( 33.31±2.5 )(without eye mask)

Product model: VZ250/202823-E continuous zoom lens
project	parameter	data
Optical parameter	focal length	20 to 250mm
	aperture	3.0/4.8 ( DC auto iris)
	Field of view	2.8° to 33.7°
	Optical distortion	< 7%
	Working band	0.436~0.656um
Optional detector	Detector type	2/3"
	Pixel	1920×1080
	Cell size	5.2 × 5.2 μm
Physical characteristics	Zoom mode	Power zoom ( 9-12V DC drive)
	Focusing mode	Electric focus ( 9-12V DC drive)
	Mechanical back focus	/
	Dimensions	27015895.5mm
	Interface Type	Flange / standard C interface
Environmental parameters	Operating temperature	-20 ° C ~ +60 ° C
Environmental parameters	Operating temperature	( -40 ° C ~ +60 ° C optional)

More information:

https://www.b2blinkedinbootcamp.com

https://www.minixz.com

https://www.moreinformationblog.com

https://www.myfreeblog.us

https://www.package-machines.com

https://www.bestabmachine.us

https://www.esielectronics.com

https://www.barleyconstruct.com

https://www.infoblogdirect.com

https://www.tad-accessories.com

https://www.chemchamp.in

https://www.chemisttruehealthproducts.com

https://www.surimoto.com

https://www.agriculture01.com

https://www.cananlblog.com

https://www.electil.com

Packaging & Shipping

- PackingStatic film lens paper blister box etc.
- Delivery Lead Time4-5weeks
- Supply Ability30,000 pieces / month
- Delivery PortChangchun
- Shipping Career

Product Image

Vis Lens System Related Products

Company Profile

About Opticreate Technology Co., Ltd.

Membership Free member
Registration Date2020.03.02
Country/RegionChina
CityChangchun
Contact Helen Wang(Ms.)

Opticreate Technology Co., Ltd. is located in China optical base- Changchun City, Jilin Province. It mainly produces high-precision optical components optical lens systems. It specializes in designing and manufacturing precision optical components and lens modules for medical instruments, security monitoring, scientific research institutes (including aerospace industry).

In the processing of optical products, it is committed to aspheric surface processing, including hyperbolic aspheric, parabolic aspheric, elliptic aspheric etc, it is one of the largest aspheric production base in Northeast China. In addition, it also focuses on the production of cylindrical lens, prisms, spherical lens, achromatic doublets, coating products, as well as the processing of crystal materials, such as Fused Silica, magnesium fluoride (MgF2), calcium fluoride (CaF2), zinc selenide (ZnSe), silicon(Si) and germanium(Ge) etc. the maximum size can reach 800mm.

Opticreate is equipped with an outstanding team combined by first-class technicians and experienced operators, also with advance productions and test equipments like high procession polish machine, single point diamond turning, Taylor profiler,Zygo interferometer to assure the quality. Opticreate is also certified with ISO9001-2015, could provide customer fabulous products and services.
