Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Laser Cutting Machines

Description by Manufacturer

Essential details

Application:: LASER CUTTING

Applicable Material:: Metal

Condition:: New

Laser Type:: Fiber Laser

Cutting Area:: 1500mm*3000mm

Cutting Speed:: 120m/min

Graphic Format Supported:: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP

Cutting Thickness:: 0-30mm

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Control Software:: Cypcut

Place of Origin:: Shandong, China

Brand Name:: JQlaser

Laser Source Brand:: RAYCUS

Laser Head Brand:: Raytools

Servo Motor Brand:: FUJI

Guiderail Brand:: HIWIN

Control System Brand:: Cypcut

Weight (KG):: 3700 KG

Key Selling Points:: Multifunctional

Warranty:: 2 years

Applicable Industries:: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining, Other, Gymnasium, School Table, School Chair, Office Table

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Warranty of core components:: 2 years

Core Components:: Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC

Mode of Operation:: continuous wave

Configuration:: 6-axis

Products handled:: Sheet Metal and Tube

Feature:: Water-cooled

Product name:: Fiber Laser Metal Cutting Machine

Function:: Cutting Metal Materials

Laser power:: 1000W / 1500W/ 2000W / 3000W / 4000W

Cutting materials:: Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )

Laser source:: Raycus

Laser head:: Raytools Cutting Head

Control system:: Cypcut System

Power supply:: 380V/50HZ

Positioning Accuracy:: 0.03mm

Repositioning accuracy:: 0.02mm

Product Description

For metal processing industry, JQ developed a special type of multifunctional fiber laser cutting machine--JQ1530C, and obtained the national inventive patent of  this machine. This type is mainly for plate cutting and partly for tube cutting.

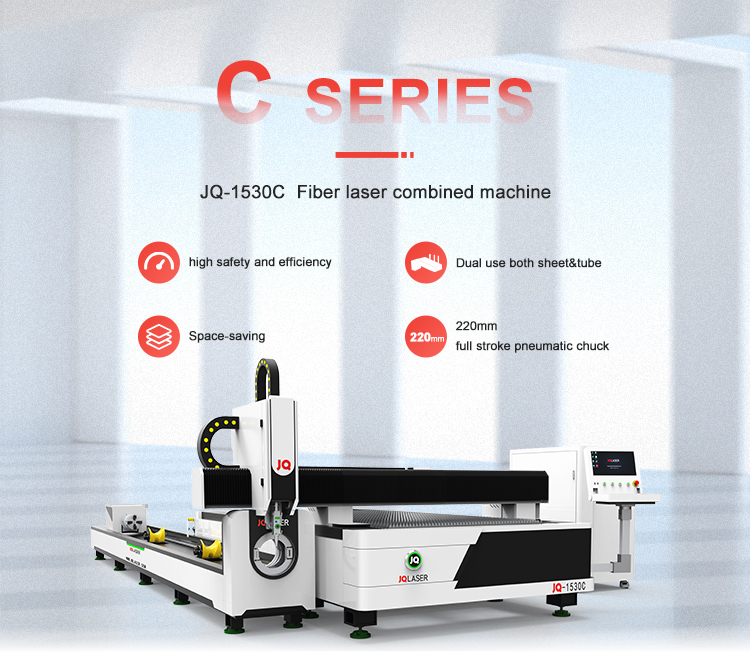

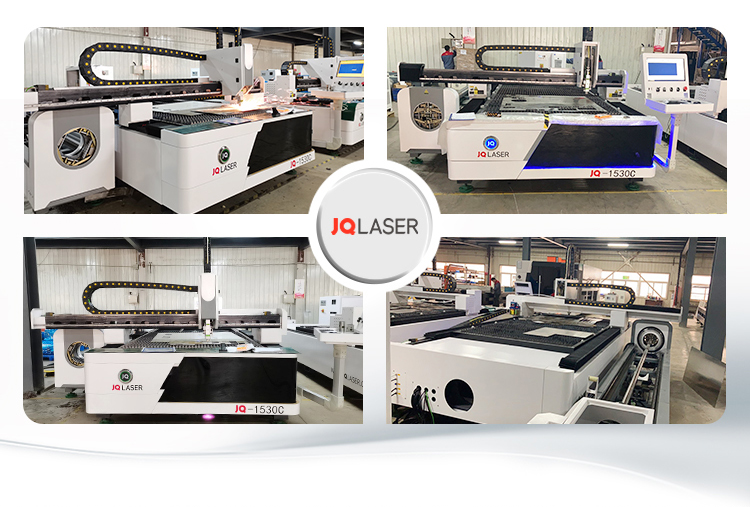

1530C Product Show

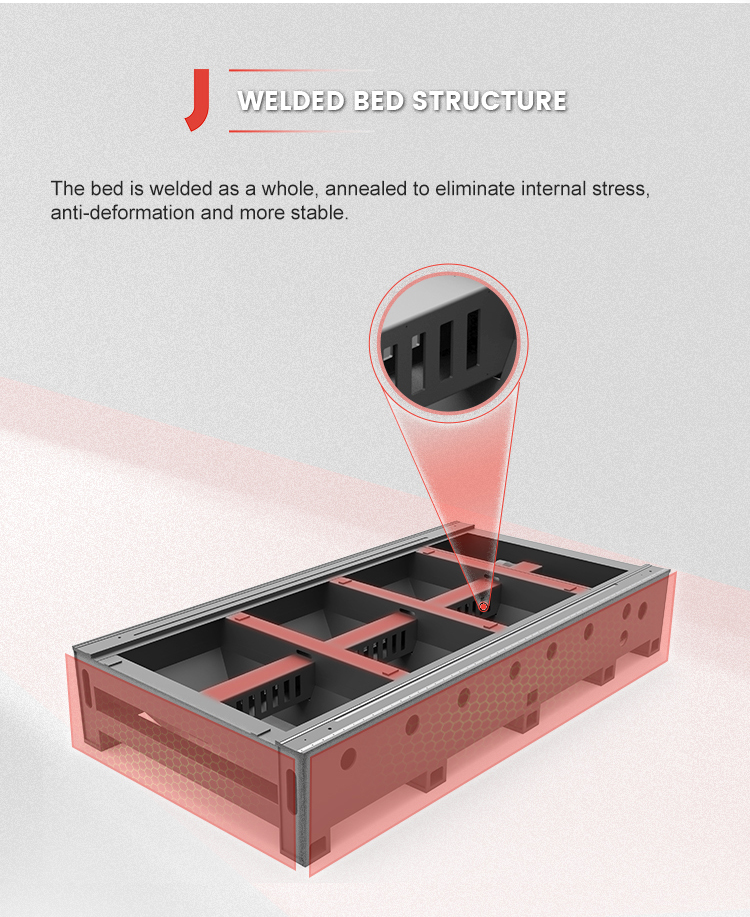

Welded Bed Structure

The bed is welded as a whole, annealed to eliminate internal stress, anti-deformation and more stable.

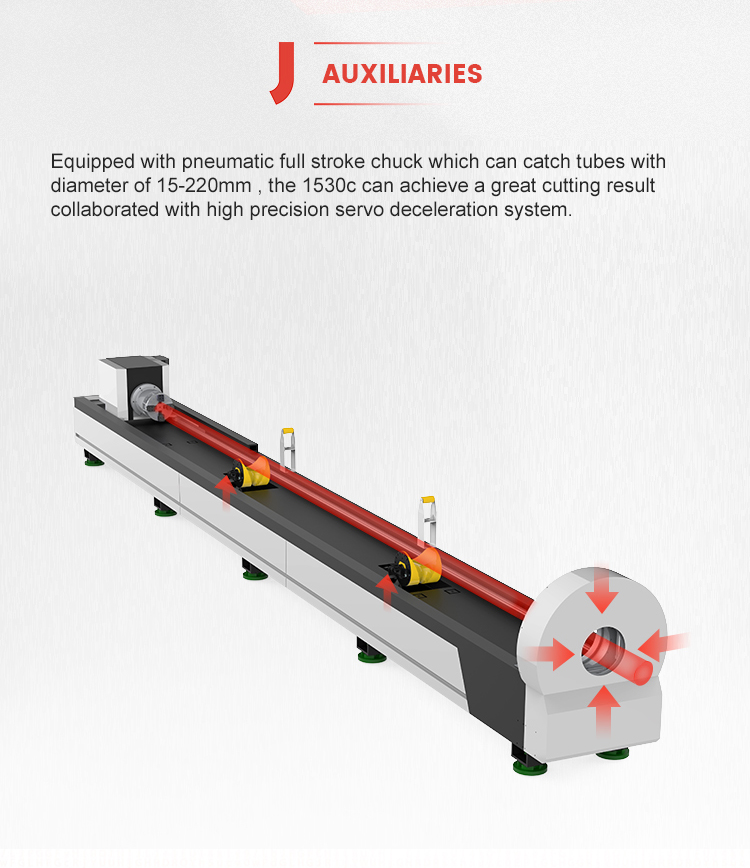

Auxiliaries

Equipped with pneumatic full stroke chuck which can catch tubes with diameter of 15-220mm , the 1530c can achieve a great cutting result collaborated with high precision servo deceleration system.

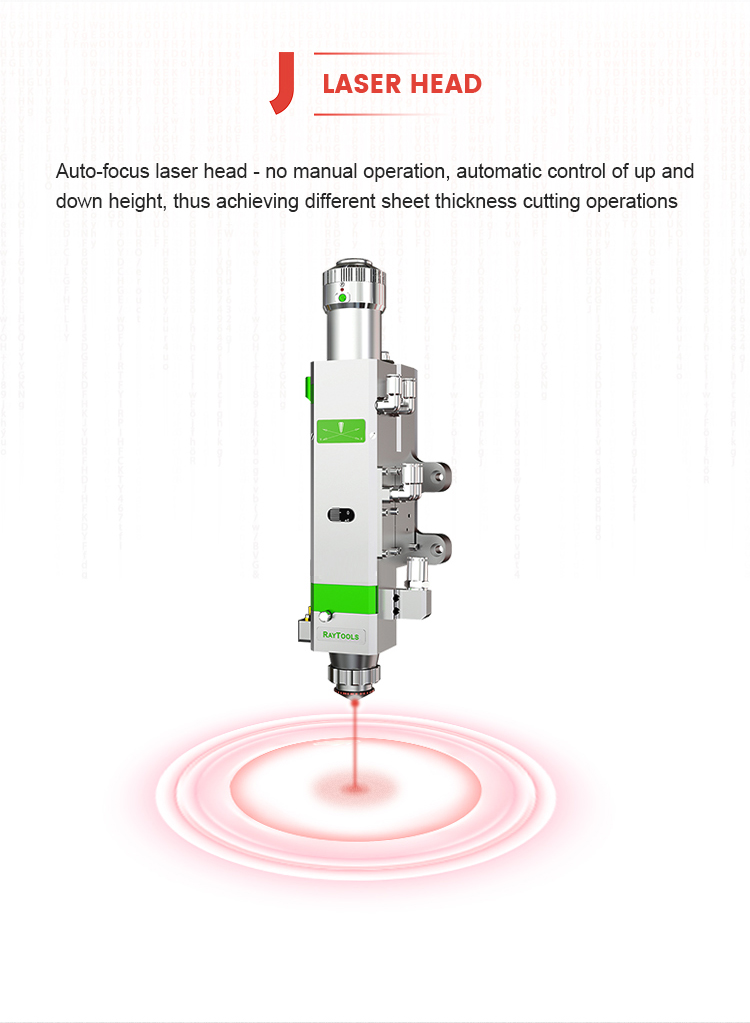

Laser Head

Auto-focus laser head - no manual operation, automatic control of up and down height, thus achieving different sheet thickness cutting operations

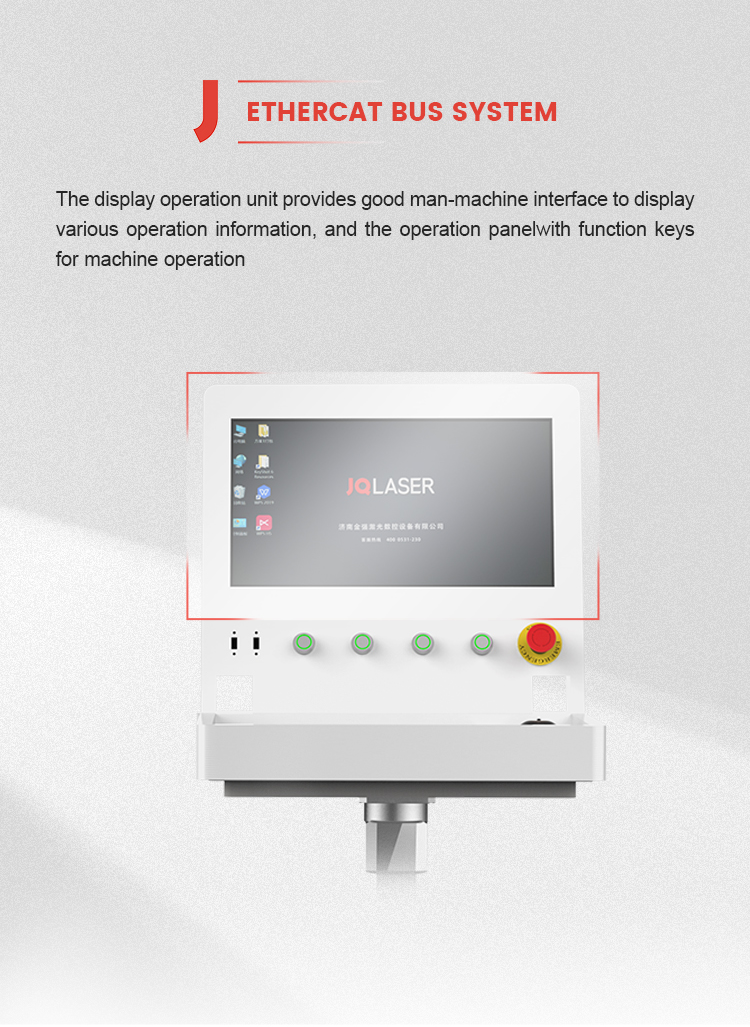

EtherCAT bus system

The display operation unit provides good man-machine interface to display various operation information, and the operation panelwith function keys for machine operation

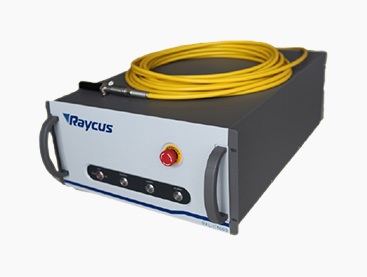

high power fiber laser

Using well-known fiber laser tools, whcih photoelectric conversion efficiency is high,  power consumption is low.

Title goes here.

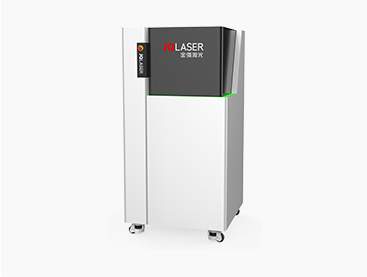

Independent electric control cabinet, making a easier operating and maintaining.

Product Paramenters

NO.	Item	Parameter	Unit
1	Working area	3000×1500	mm
2	Tube Diameter	Φ12-φ220,L=6000;(Square and rectangle tube diagonal≤200mm)	mm
3	X-axis travel	2350	mm
4	Y-axis travel	3050	mm
5	Z-axis travel	240	mm
6	X,Y positioning accuracy	±0.05/1000mm	mm
7	X,Y repeat positioning accuracy	±0.03/1000mm	mm
8	Acceleration	1G	m/s²
9	Max running speed	80	m/min
10	Rear chuck max rotating speed	100	rpm
11	Tailing length	≥90(will have little difference according to different tubes)	mm
12	Table max load	900	kg
13	Machine size (length x width x height )	7600×3500×1700(include rotary )	mm
14	Laser power	1000	w
15	Control system	Fscut	kw
16	Total power	14	Kw
17	Machine voltage	380v/50Hz

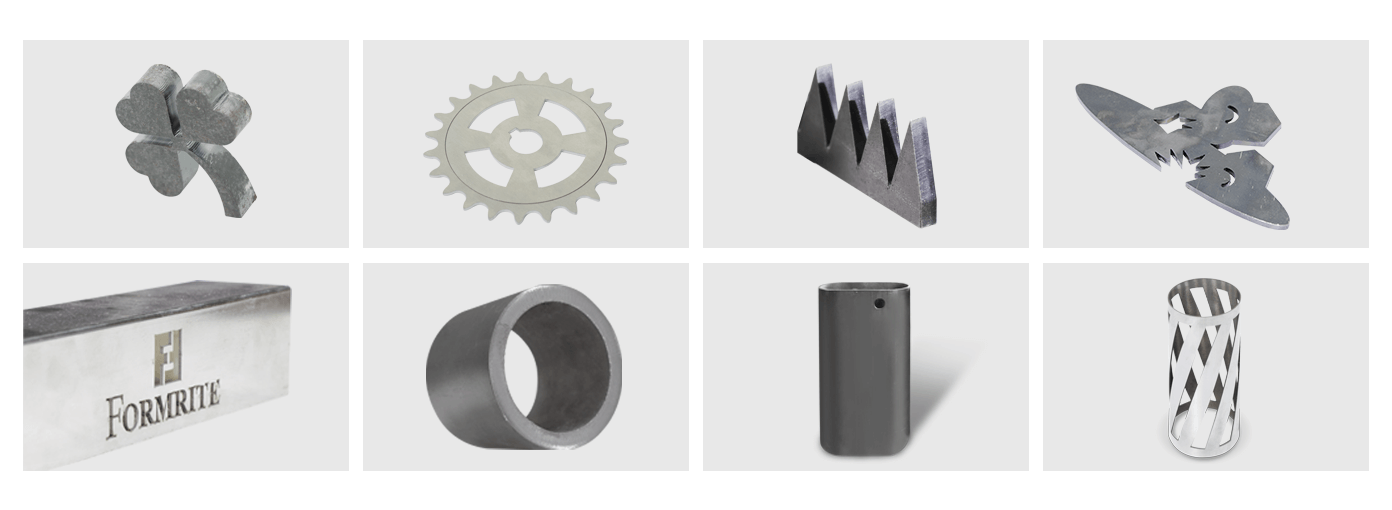

Sample

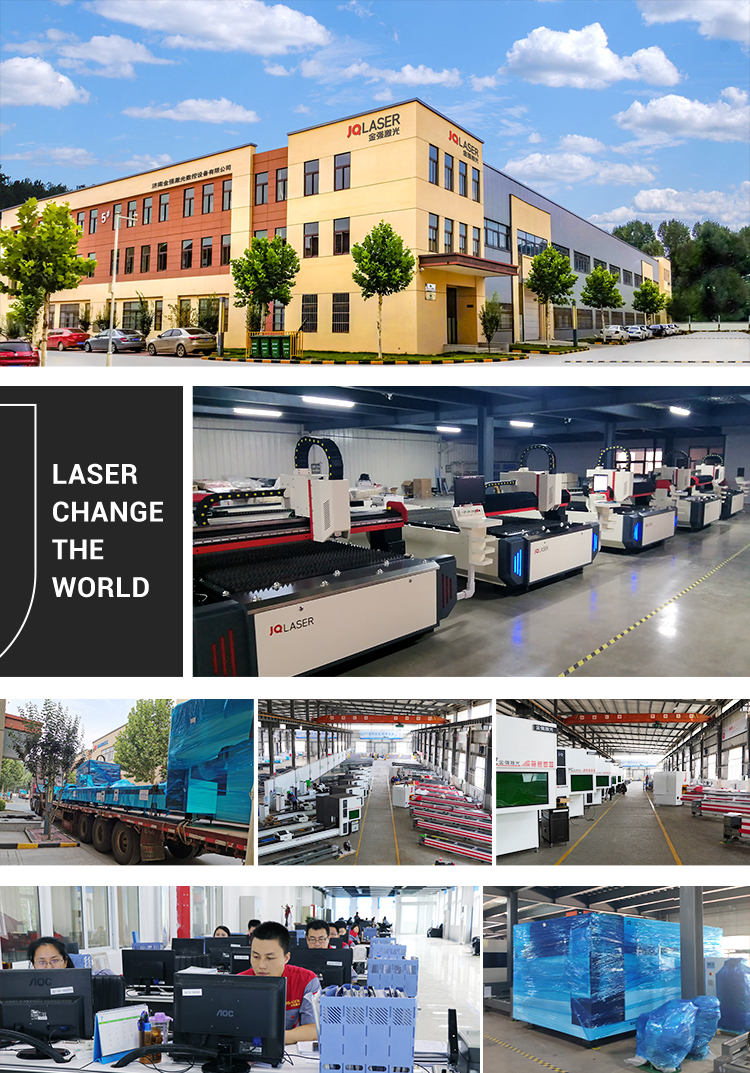

Company Profile
