heavy Duty 4000W 6000W Automatic Fiber Laser Cutting Machine

Add to Basket Share to :

Price

US$ 9500

Min Order Quantity1 Set
PortShanghai
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Jinan Jinqiang Laser CNC Equipment Co., Ltd
Membership Free member
Registration Date2023.01.16
Country/RegionChina
CityJinan
Contact XU SHUYI(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.XU SHUYI

Jinan Jinqiang Laser CNC Equipment Co., Ltd

* Buying Product

Category : Laser Equipment

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Laser Cutting Machines

Description by Manufacturer

Essential details

Application:: LASER CUTTING

Applicable Material:: Metal

Condition:: New

Laser Type:: Fiber Laser

Cutting Area:: 1500*3000mm

Cutting Speed:: 80M/min

Graphic Format Supported:: AI, DXF

Cutting Thickness:: 0.5-20mm

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Control Software:: Cypcut

Place of Origin:: Shandong, China

Brand Name:: JQ LASER

Laser Source Brand:: RAYCUS

Laser Head Brand:: Raytools

Servo Motor Brand:: Panasonic

Guiderail Brand:: HIWIN

Control System Brand:: Cypcut

Key Selling Points:: Automatic

Optical Lens Brand:: II-VI

Warranty:: 2 years

Applicable Industries:: Hotels, Manufacturing Plant, Farms, Retail, Food Shop, Construction works , Advertising Company

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Warranty of core components:: 3 years

Core Components:: Pressure vessel, Motor, Gearbox

Mode of Operation:: Pulsed

Configuration:: gantry type

Products handled:: Sheet Metal

Feature:: Automated Loading

After-sales Service Provided:: Engineers available to service machinery overseas

Laser source:: Raycus

location precision:: 0.05mm

cutting precision:: 0.1mm

laser head:: Germany technology

machine body:: welding

Cutting mode:: fiber laser cutter

Product name:: Fiber Laser Metal Cutting Machine

NET WEIGHT:: 5000KG

Keyword:: automatic fiber laser cutting machine price for stainless s

Product Description

mainly for metal plates,equipped with high power fiber laser,precise linear guide rail and high precision rack and pinion, high performance numerical control system, High precision, high efficiency and high cost performance. It is safety and environmental due to its covering of dust proof.

Product Show

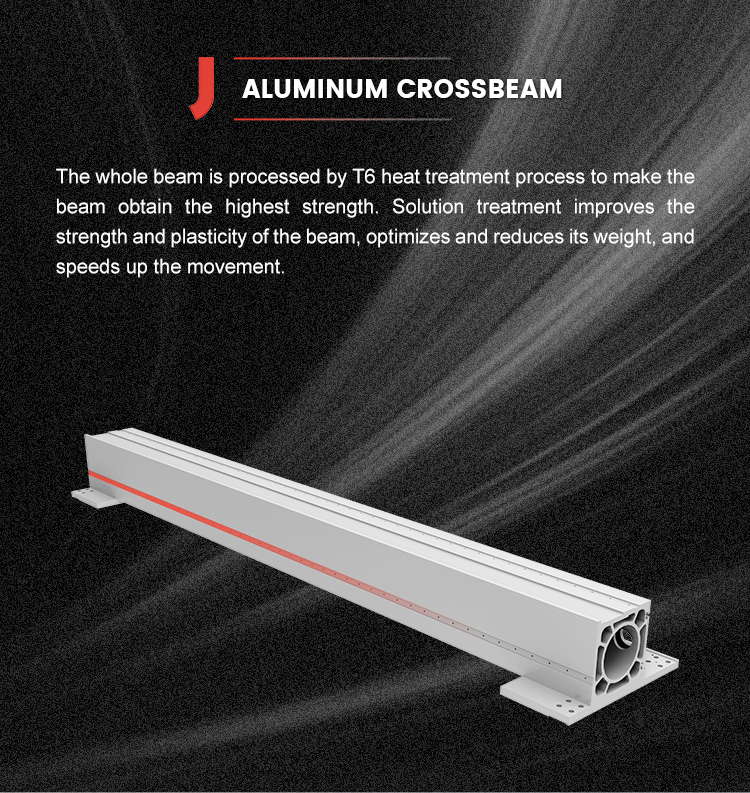

Aluminum crossbeam

The whole beam is processed by T6 heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.

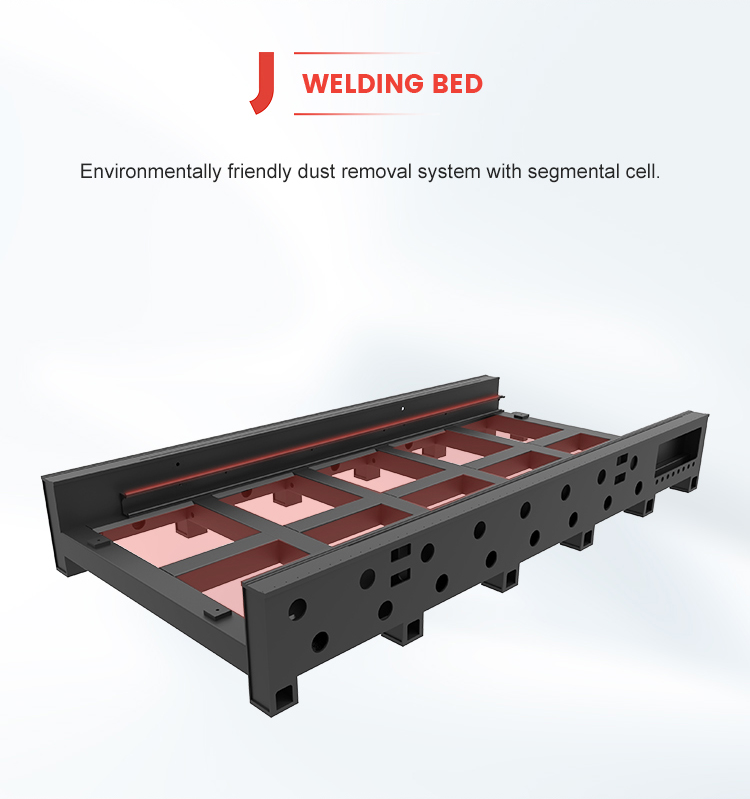

Welding bed

Environmentally friendly dust removal system with segmental cell.

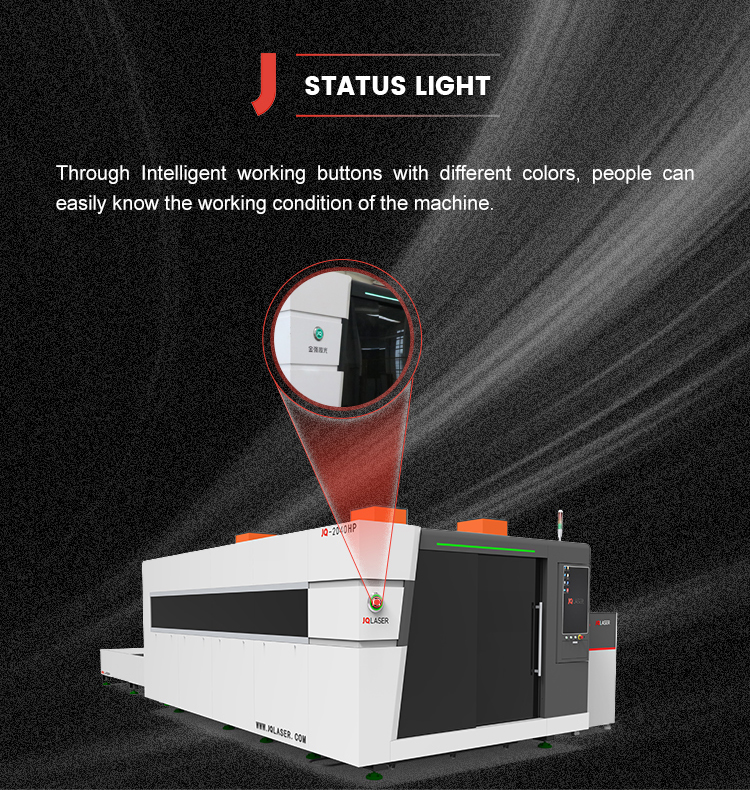

Status light

Through Intelligent working buttons with different colors, people can easily know the working condition of the machine.

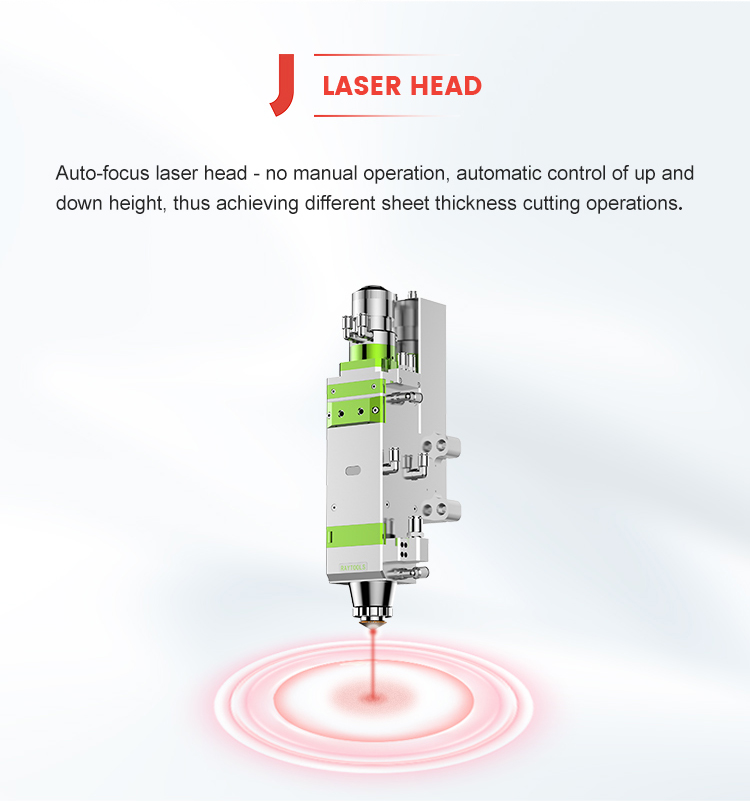

Laser head

Auto-focus laser head - no manual operation, automatic control of up and down height, thus achieving different sheet thickness cutting operations.

high power fiber laser

Using well-known fiber laser tools, whcih photoelectric conversion efficiency is high,  power consumption is low.

Power Distribution Cabinet

Independent electric control cabinet, making a easier operating and maintaining.

Product Paramenters

NO.	Item	Parameter	Unit
1	Flat cutting format (length * Width)	4000x2000	mm
2	X axis travel	2050	mm
3	Y axis travel	4050	mm
4	Z axis travel	300	mm
5	X, Y axis positioning accuracy	±0.05/1000mm	mm
6	X, Y axis repeated positioning accuracy	±0.03/1000mm	mm
7	Acceleration	1.3G	m/s²
8	Maximum operating speed	120	m/min
9	Maximum load of platform	2500	kg
10	Host shape (length, width and height)	10175×3192×2033	mm
11	Laser Power	4000	w
12	Control System	Baichu
13	Total machine power	38	Kw
14	Power requirements	380v/50Hz

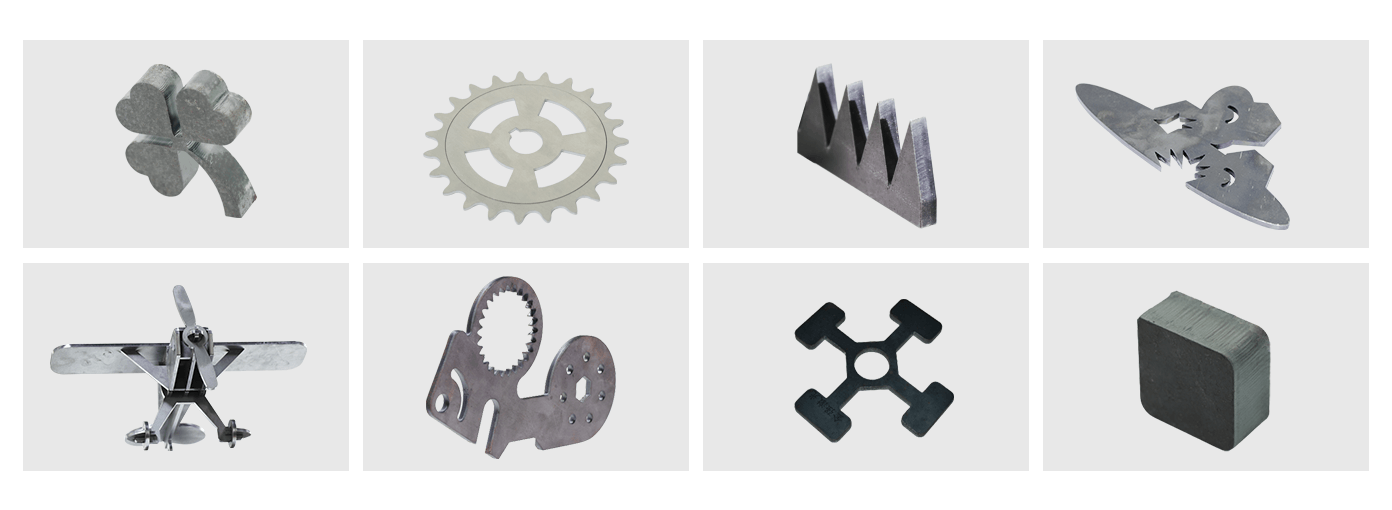

Sample

Company Profile

Price

Price US$ 9500 / Set

Product Image

heavy Duty 4000W 6000W Automatic Fiber Laser Cutting Machine

heavy Duty 4000W 6000W Automatic Fiber Laser Cutting Machine 2

heavy Duty 4000W 6000W Automatic Fiber Laser Cutting Machine 3

heavy Duty 4000W 6000W Automatic Fiber Laser Cutting Machine 4

heavy Duty 4000W 6000W Automatic Fiber Laser Cutting Machine 5

heavy Duty 4000W 6000W Automatic Fiber Laser Cutting Machine 6

Laser Cutting Machines Related Products

Main Export Markets

- Jinan Jinqiang Laser CNC Equipment Co., Ltd is mainly exporting to China (Mainland), Asia, North America, South America, Australia

Company Profile

About Jinan Jinqiang Laser CNC Equipment Co., Ltd

Membership Free member
Registration Date2023.01.16
Country/RegionChina
CityJinan
Contact XU SHUYI(Mr.)

JinQiang Laser is a R&D and manufacturing company dedicated to providing laser industry intelligent equipment to users around the world.It specializes in laser cutiting equipment such as laser cutting machines and provides customized flexible pipe processing systems for customers.Since its establishment in 2006,Jinqiang Laser has been relying on technoloy research and development and product quality as its lifeline,constantly optimizing and providing customers with the most suitable products and services,and meticulously controlling the production process with strict quality control standards.

Selling Categories

- Manufacturing & Processing Machinery >> Metal Processing Machinery

Keywords

Laser pipe cutting machine , Sheet tube cutting machine

Registration Date	2023/01/16(Year/Month/Date)
Buyer / Seller in EC21	Seller
Business Type	Manufacturer
Year established	2006
Employees total	101 - 500
Annual revenue	USD 5,000,001 - 10,000,000

Contact Information Order Credit Report

Company	Jinan Jinqiang Laser CNC Equipment Co., Ltd
Address	U Valley, Yuqing RoadJinanShandongChina
Phone	86 - 0531 - 55631205
Contact	XU SHUYI
