JQ LASER 2040HP Carbon Stainless Steel Aluminum CNC Laser Cutting Machine Sheet Sheet Metal

Add to Basket Share to :

Price

US$ 4200

Min Order Quantity1 Set
PortQingdao
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Jinan Jinqiang Laser CNC Equipment Co., Ltd
Membership Free member
Registration Date2023.01.16
Country/RegionChina
CityJinan
Contact XU SHUYI(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.XU SHUYI

Jinan Jinqiang Laser CNC Equipment Co., Ltd

* Buying Product

Category : Other Manufacturing & Processing Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Laser Cutting Machines

Description by Manufacturer

Essential details

Application:: LASER CUTTING

Applicable Material:: Metal

Condition:: New

Laser Type:: Fiber Laser

Cutting Area:: 1500x3000mm

Cutting Speed:: 80m/min

Graphic Format Supported:: AI, PLT, DXF

Cutting Thickness:: 12mm

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Control Software:: Cypcut

Place of Origin:: Shandong, China

Brand Name:: JQ

Laser Source Brand:: IPG Raycus

Laser Head Brand:: Raytools

Servo Motor Brand:: Yaskawa FUJI

Guiderail Brand:: PMI

Control System Brand:: Cypcut

Weight (KG):: 3000 KG

Key Selling Points:: Sustainable

Optical Lens Brand:: Wavelength

Warranty:: 3 years

Applicable Industries:: Manufacturing Plant, Farms, Retail, Printing Shops, Construction works , Energy & Mining, Advertising Company

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Warranty of core components:: 2 years

Core Components:: Other

Mode of Operation:: Pulsed

Configuration:: gantry type

Products handled:: Sheet Metal

Feature:: Automated Loading

Model:: JQ-2040HP Sheet Cutting Machine Tube Fiber Laser Cutting Machine

power:: 1000W 2000w 3000w

Working area:: 1500mmX3000mm/2000mm*4000mm

Laser head:: Switzerland Raytools

Product name:: Fiber Laser Cutting Machine

Type:: Fiber Laser Cutting

Color:: White-Black

Working Voltage:: 380V /220V/110V 50hz/60hz

Controller:: Cypcut and Tubepro

Certification:: CE

JQ LASER 2040HP factory supplier Carbon Stainless Steel Aluminum cnc laser cutting machine sheet metal

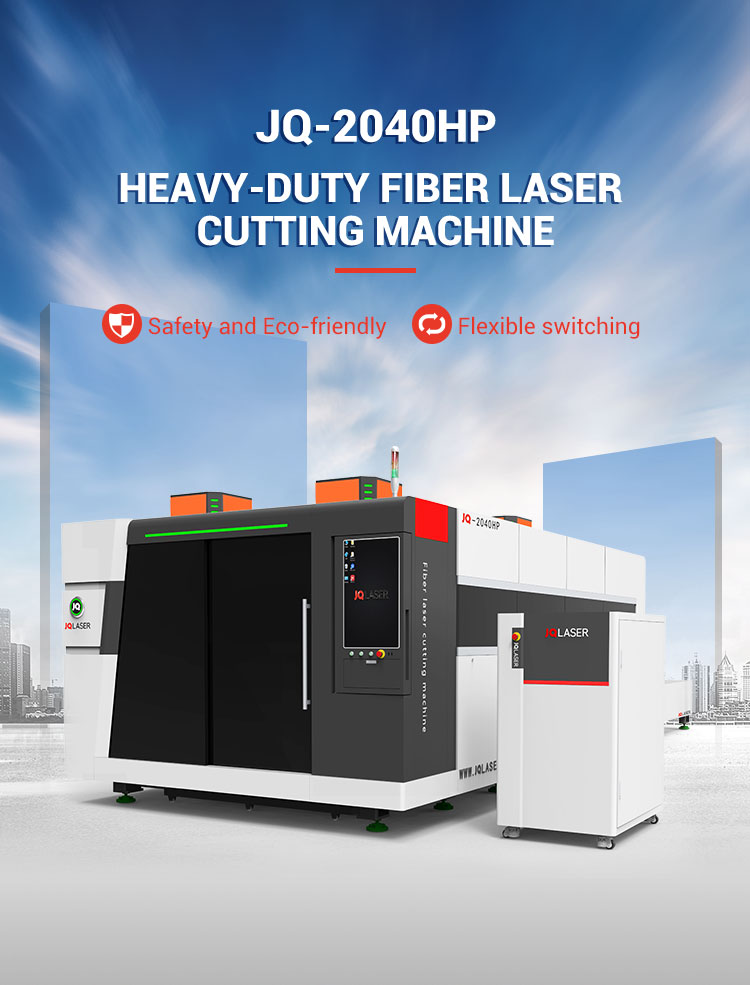

 JQ-2040HP is an exchange table closed fiber laser cutting machine developed by Jinqiang Laser for the actual needs of the sheet metal processing industry. The front and rear platforms are quickly and parallel exchanged, which greatly reduces the time used for loading and unloading and improves processing efficiency. It is mainly used for ordinary carbon steel plates, stainless steel plates, aluminum alloy plates, copper plates, etc. The workpiece size is 2000X4000mm , and the maximum length is 4000mm.
Other sizes can be customized: 1500mmx3000mm/1500x6000mm/2000mmx6000mm/20000mmx8000mm


Tips: Cnc Fiber Laser Cutting Machine (Optional) 1. Fiber laser cutter power: 1000W, 1500W, 2000W, 3000W, 4000W, 6000w, 10000w,12000w, etc. 2. Fiber laser source: JPT, RAYCUS, MAX, NIGHT, IPG etc.
3. Fiber laser cutter materials: Iron aluminum carbon steel
stainless steel copper hardware and other metal sheet materials.
4. Other machine optional parts can be chosen such as rotary axis
exchange working table full cover etc.
5. China Top fiber laser cutting machine manufactuer JQ laser best price and high quality
with CE etc certificates.

CONFIGURATIONS

 ￭ Metal welding machine base.
￭ Automatic pallet change system.
￭ Laser source
￭ Raytools Laser head
￭ CNC FSCUT
￭Nesting software FSCUT Cypnest
￭Air compressor
￭Stabilizer

Product Advantages

00:01

00:58

Smoke exhaust system, axial fan upgrade design

#There are two fans on the top of the machine to bring downward wind pressure to the inside of the
machine #The fuselage is divided into three parts: front, middle, and rear, with 12 smoke outlets
on both sides of each part
#
 Two 5.5KW fans

Smoke exhaust steps and advantages:
A: The system can coordinate the laser cutting head and the whole machine, and identify which area the laser head works in front,
middle, and back of the machine
B: Then the smoke vent in this working area will be opened.
C: The pressure of the fan on the top of the machine and the suction of the fan on the back of the machine will discharge the smoke in real time during cutting, which speeds up the smoke discharge speed and strengthens the air circulation inside the machine, making the smoke exhaust more thorough.

More advantages

The machine base is heavier, and the 12mm-16mm steel plate is welded
The frame of the machine base is equipped with high-tech fireproof materials, and the service life is extended by 10 years.
All connecting lines use aviation plugs, and the customer can complete the installation within one day.

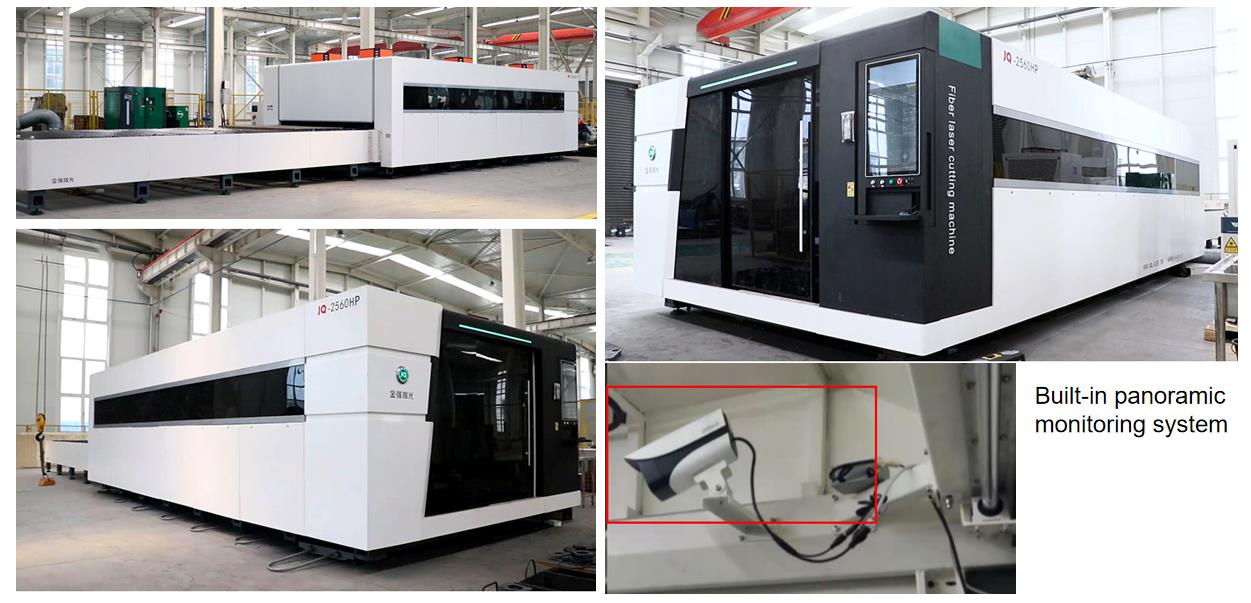

The installation of high-definition camera  and the design of three-color alarm lights allow customers to monitor the use of the machine at any time.

NO.	item	Parameter	Unit
1	Machine model	JQ-2040HP
2	working area	4000mm×2000mm	mm
3	X-axis travel	2050mm	mm
4	Y-axis travel	4050mm	mm
5	Z-axis travel	300mm	mm
6	X, Y axis positioning accuracy	±0.05mm/m	mm
7	Acceleration	1.3G	G
8	table load	2500kg	kg
9	Max running speed	120m/min	m/min
10	voltage	380v/50Hz

Product acessories

  The  machine base is welded as a whole, and the internal stress is eliminated by annealing. After rough machining, the machine is finished by vibration aging, which greatly improves the rigidity and stability of the machine and ensures the accuracy of the machine.

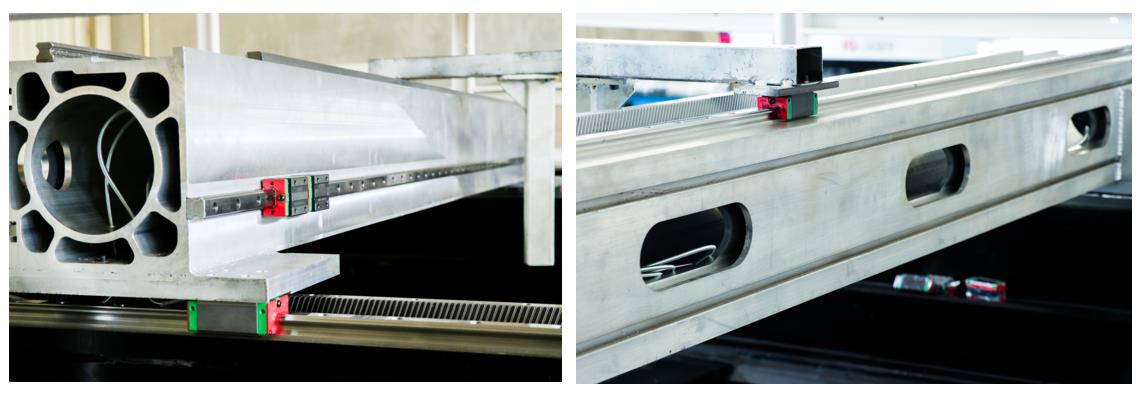

Cast aluminum beams, three times lighter than iron, allow easier control of positioning accuracy in motion

Product Applications

JQ LASER 2040HP factory supplier Carbon Stainless Steel Aluminum cnc laser cutting machine sheet metal
Samples

Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, If you equipped with the rotary axis, Metal Plate, Tubes and Pipes, all ok.
