JQ1530CP 1kw 2kw 3kw 4kw Fiber Raycus Laser Cutting Machine Pipe Laser Cutting Machine Sheet Metal

Add to Basket Share to :

Price

US$ 10300

Min Order Quantity1 Set
PortQingdao
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Jinan Jinqiang Laser CNC Equipment Co., Ltd
Membership Free member
Registration Date2023.01.16
Country/RegionChina
CityJinan
Contact XU SHUYI(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.XU SHUYI

Jinan Jinqiang Laser CNC Equipment Co., Ltd

* Buying Product

Category : Other Manufacturing & Processing Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Laser Cutting Machines

Description by Manufacturer

Essential details

Application:: LASER CUTTING

Applicable Material:: Metal

Condition:: New

Laser Type:: Fiber Laser

Cutting Area:: 3000*1500mm

Cutting Speed:: 140m/min

Graphic Format Supported:: AI, BMP, Dwg

Cutting Thickness:: 0-20mm

CNC or Not:: Yes

Cooling Mode:: WATER COOLING

Control Software:: CYPCUT

Place of Origin:: Shandong, China

Brand Name:: jq

Laser Source Brand:: IPG/MAX

Laser Head Brand:: Raytools

Servo Motor Brand:: Panasonic

Guiderail Brand:: THK

Control System Brand:: Cypcut

Weight (KG):: 5000 KG

Key Selling Points:: Automatic

Optical Lens Brand:: /

Warranty:: 2 years

Applicable Industries:: Building Material Shops, Manufacturing Plant, Farms, Advertising Company, industry

Machinery Test Report:: Provided

Video outgoing-inspection:: Provided

Warranty of core components:: 2 years

Core Components:: Motor, Gear, Gearbox, PLC

Mode of Operation:: continuous wave

Configuration:: 5-axis

Products handled:: Sheet Metal and Tube

Feature:: SERVO-MOTOR

Product name:: Fibre Laser Cutting Machine Cutting Stainless Sheet and pipe

Laser power:: 500W / 1000W / 2000W / 3000W

Type:: Fiber Lasr Cutting

Name:: Automatic CNC Laser Cutting Machine

Driving system:: Servo Motor

Color:: Red-black

Working Voltage:: 380V 3 PHASE 50hz/60hz

Transmission system:: Gantry Double-drive Structure

Controller:: Cypcut/PA8000/Beckhoff

Function:: Cutting Metal Materials

  Mainly for metal plates,equipped with high power fiber laser,precise linear guide rail and high precision rack and pinion, high performance numerical control system, High precision, high efficiency and high cost performance. It is safety and environmental due to its covering of dust proof.

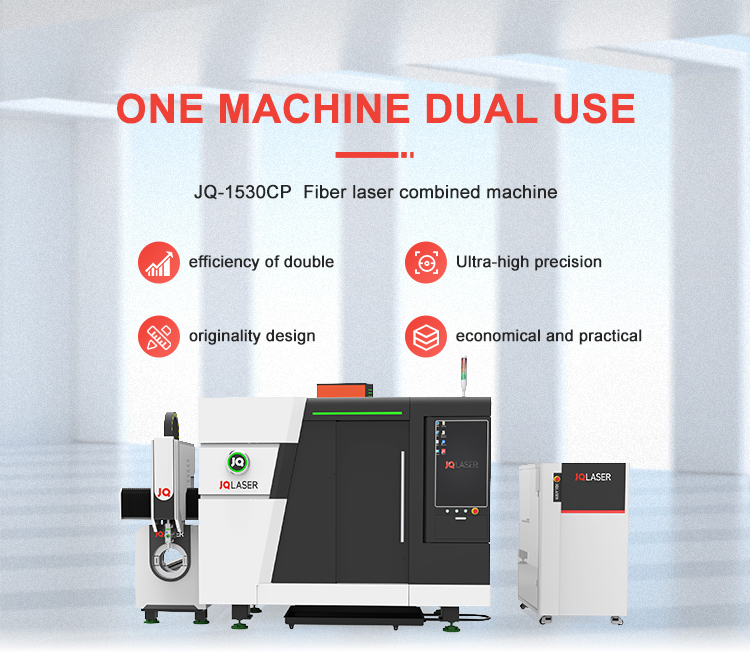

Products Show

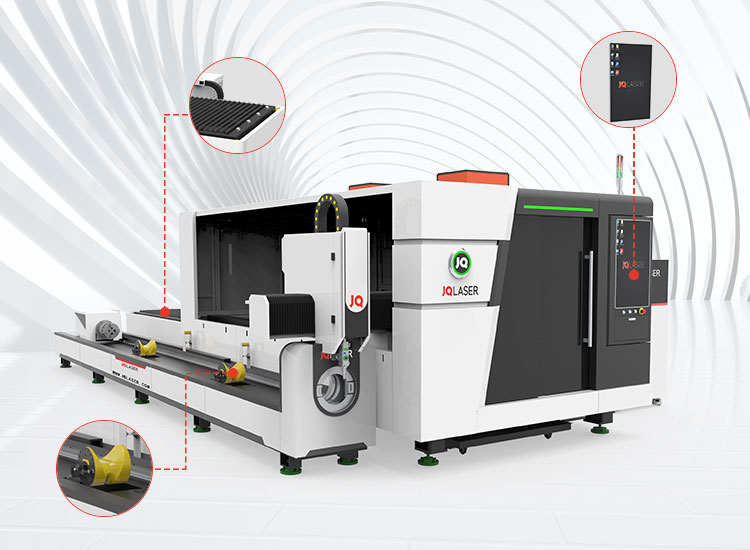

Product acessories

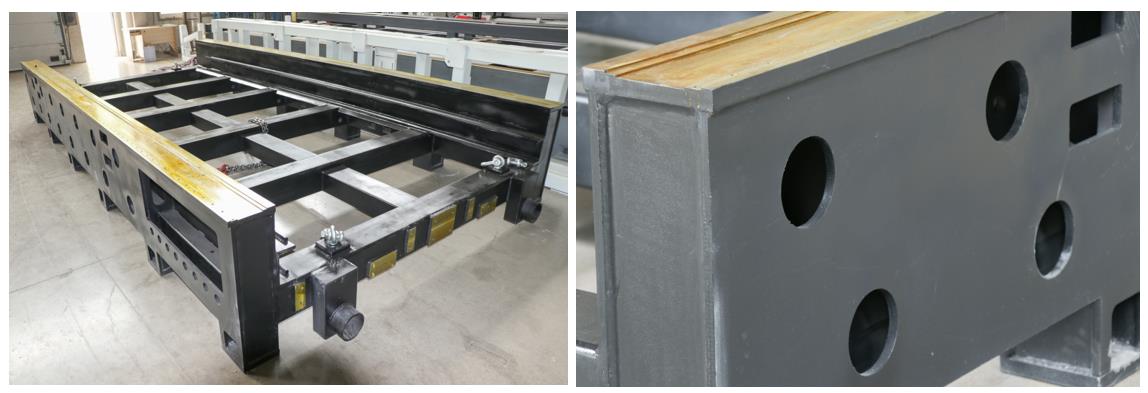

  The bed body is welded as a whole, and the internal stress is eliminated by annealing. After rough machining, the machine is finished by vibration aging, which greatly improves the rigidity and stability of the machine and ensures the accuracy of the machine.

Cast aluminum beams, three times lighter than iron, allow easier control of positioning accuracy in motion

Product Advantages

NO.	item	Parameter	Unit
1	Machine model	JQ-2040HCP
2	working area	4000mm×2000mm	mm
3	X-axis travel	2050mm	mm
4	Y-axis travel	4050mm	mm
5	Z-axis travel	300mm	mm
6	X, Y axis positioning accuracy	±0.05mm/m	mm
7	Acceleration	1.3G	G
8	table load	2500kg	kg
9	Max running speed	120m/min	m/min
10	voltage	380v/50Hz

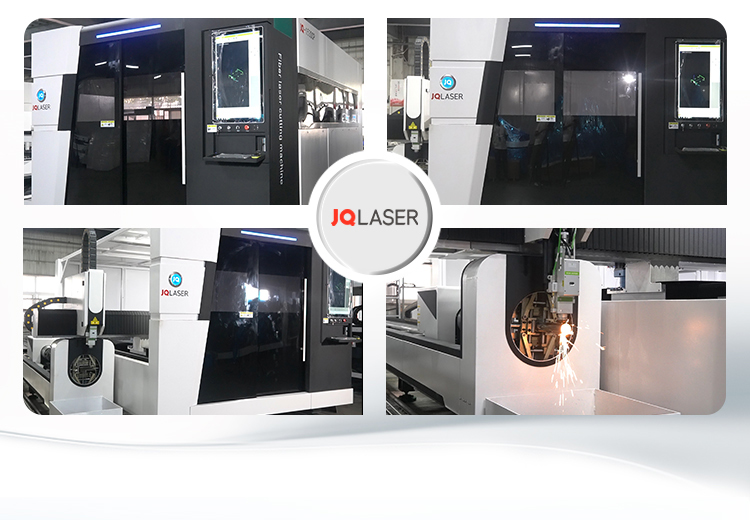

Product Applications

After-sales service

Exhibition display

Price

Price US$ 10300 / Set

Product Image

JQ1530CP 1kw 2kw 3kw 4kw Fiber Raycus Laser Cutting Machine Pipe Laser Cutting Machine Sheet Metal

JQ1530CP 1kw 2kw 3kw 4kw Fiber Raycus Laser Cutting Machine Pipe Laser Cutting Machine Sheet Metal 2

JQ1530CP 1kw 2kw 3kw 4kw Fiber Raycus Laser Cutting Machine Pipe Laser Cutting Machine Sheet Metal 3

JQ1530CP 1kw 2kw 3kw 4kw Fiber Raycus Laser Cutting Machine Pipe Laser Cutting Machine Sheet Metal 4

JQ1530CP 1kw 2kw 3kw 4kw Fiber Raycus Laser Cutting Machine Pipe Laser Cutting Machine Sheet Metal 5

JQ1530CP 1kw 2kw 3kw 4kw Fiber Raycus Laser Cutting Machine Pipe Laser Cutting Machine Sheet Metal 6
