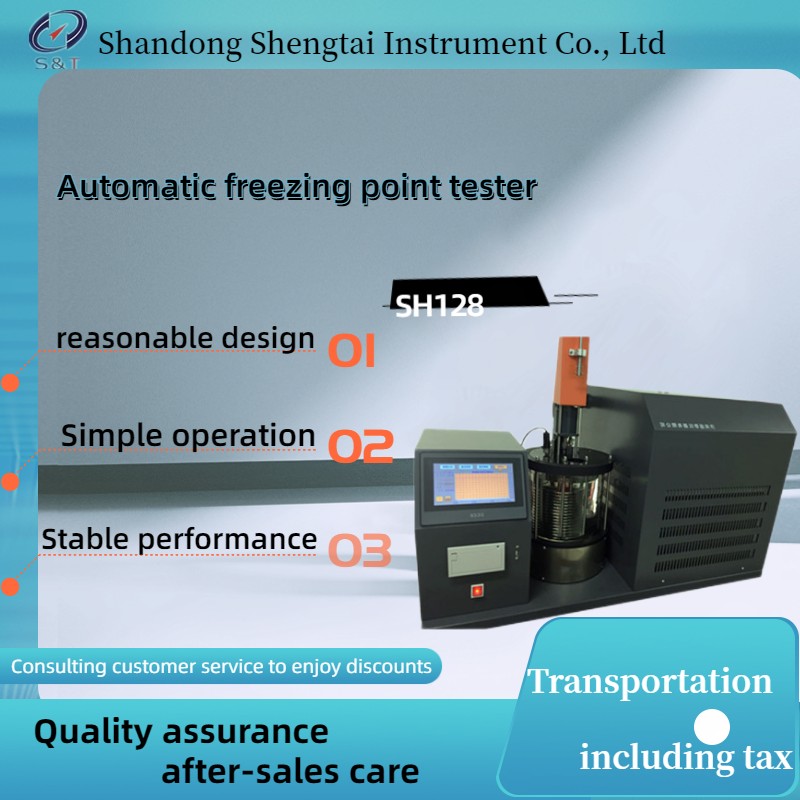

SH128 automatic antifreeze freezing point tester/ jet fuel freezing point tester is based on the national petrochemical industry standard SH/T0090-91 "engine coolant freezing point determination method" and ASTM D1177.
Suitable for measuring freezing point of engine coolant and concentrated liquid.
Instrument features: embedded system design, using imported PT100 temperature sensor, automatic detection throughout the test;
ASTM D2386, ASTM D1177 Engine Coolant Freezing Point Determination/Jet Fuel Ice Point Tester
Engine Coolant Freezing Point Tester ASTM D 1177
Jet Fuel Freezing Point Tester ASTM D2386
Automatic Engine Coolant Freezing Point Tester
ASTM D1177 ASTM D2386 SH128 Automatic Freezing Point Tester for petroleum products
Engine Coolant Automatic Freezing Point Tester ASTM D1177
Automatic Freezing Point Tester for Fuels
Laboratory Fully Automatic ASTM D1177 Aqueous Engine Coolants Freezing Point Tester
Color touch screen;
The test results can be stored;
You can view historical data;
Printing results on the instrument, mechanical automatic mixing, experimental results can be exported through the U disk, stored in the computer can be compared for many times.
| Technical Parameters: |
|
| Power supply: | AC 220V±10%, 50Hz |
| Working cold trough: | Double vacuum glass bath |
| Cold trough temperature: | +30℃～-70℃.(customized+20℃～-80℃) |
| Temperature accuracy: | ±0.1℃ |
| Bath mixing: | Automatic mixing by mixing motor,power :6W,1200r/min |
| Cooling system: | Imported cascade refrigeration compressor. |
| Sample stirring: | Synchronous geared motor, 60 times/min. |
| Ambient temperature: | ≤30℃ |
| Relative humidity: | About 1500W |
| Total power consumption: | less than 2000W |
| Instrument size: 720mm * 450mm * 680mm Weight: 75kg |
| Applicable standards: | SH/T0090-91,GB/T 2430,ASTM D2386,ASTM D1177 |
Technical parameters
1, working power supply: AC220V±10%;50 hz.
2, working cold tank: double vacuum glass bath.
3, cold tank temperature control: +30℃ ~ -70℃.
(customized +20℃ ~ -80℃)
4, temperature control accuracy: ±0.1℃.
5, Bath liquid stirring: automatic stirring motor, power 6W, 1200r/min.
6, Refrigeration system: imported overlapping refrigeration compressor.
7, sample mixing: synchronous reducer motor, 1 times/second.
8. Ambient temperature: ≤30℃.
9, relative humidity: ≤85%.
10. Power consumption of the whole machine: about 1500W.
11. Instrument size: 720mm * 450mm * 680mm Weight: 75kg
Packing list
| S/N | Name | Unit | Quantity | Remarks |
| 1 | Host | set | 1 |
|
| 2 | Test bottle rubber stopper | piece | 1 |
|
| 3 | Freezing test tube | piece | 1 |
|
| 4 | Temperature sensor | piece | 1 |
|
| 5 | Power cable | piece | 1 |
|
| 6 | instructions | copy | 1 |
|
| 7 | Packing list | copy | 1 |
|
| 8 | Certificate warranty card | copy | 1 |
|
