M12 IP67 IP68 Soldering 2 3 4 PIN Male Female Docking RGB Waterproof LED Strip Connector

Add to Basket Share to :

Price

US$ 2

Min Order Quantity10 Piece
Supply Ability60000set/day
PortShenzhen
Delivery Lead Time3-7days for 20pcs,15-20days for mass production
Payment Terms 2
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Llt Technology Industry Co., Limited
Membership Free member
Registration Date2021.12.18
Country/RegionChina
CityShenzhen
Contact Hannah He(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name LLT
- Model Number LLT-M12-10002F1051
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color Black
- Related Keywords field assembly connectors, 2 pin led connector, waterproof data connector

Description by Manufacturer

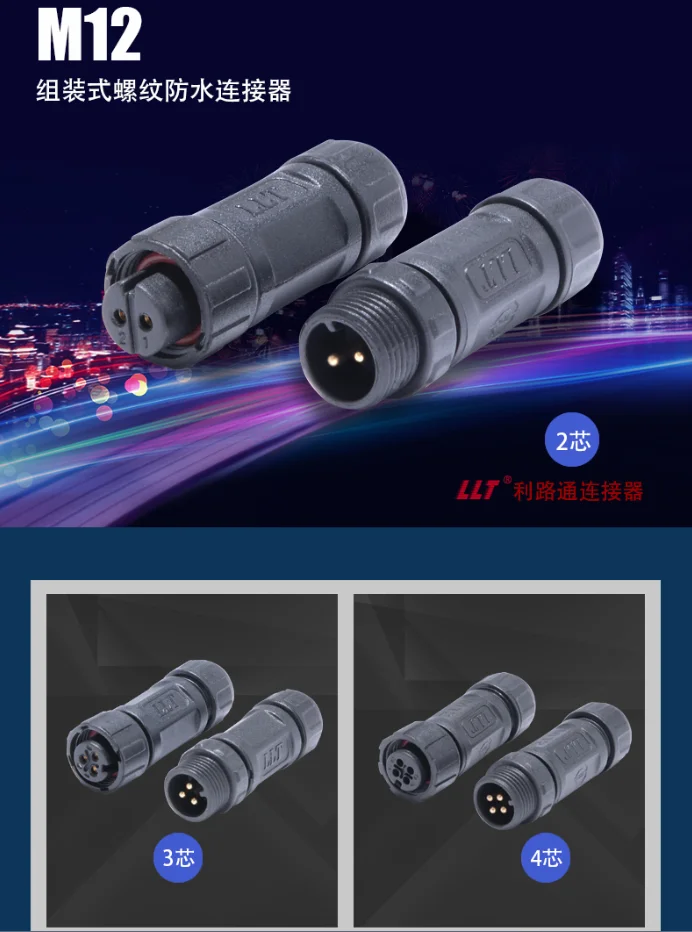

M12 IP67 IP68 Soldering 2 3 4 PIN Male

Female Docking RGB Waterproof LED Strip

Connector

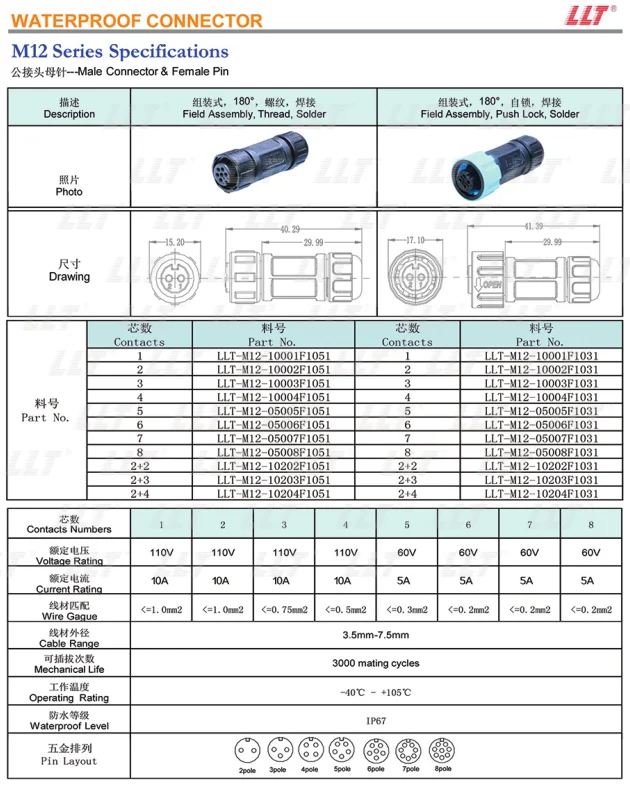

Specification:

1	Model No.	LLT-M12 2 pin connector waterproof
2	Material	Connector Body	Nylon(PA66)+GF UL94V-0 1/16''
3		Contact	Brass with Gold Plated
4		Sealing	Silica Gel
5	Property	Current Rating	10AMP
6		Voltage Rating	110V
7		Contact Resistance	<10mΩ
8		Insulation Resistance	1000MΩ at DC 500V
9		Breakdown Voltage	1.5KV/1minute
10		Temperature Rating	-45°C~+105°C
11		Durability(Plug/Unplug)	3000 times
12		Waterproof Rating	IP67 IP68 waterproof
13		Cable Max. Diameter	6.1mm(<=1.0MM2)
14		Pins Range	2, 3, 4, 5, 6, 7, 8 pin
15	Certificate	CCC; CE; RoHS;SAA

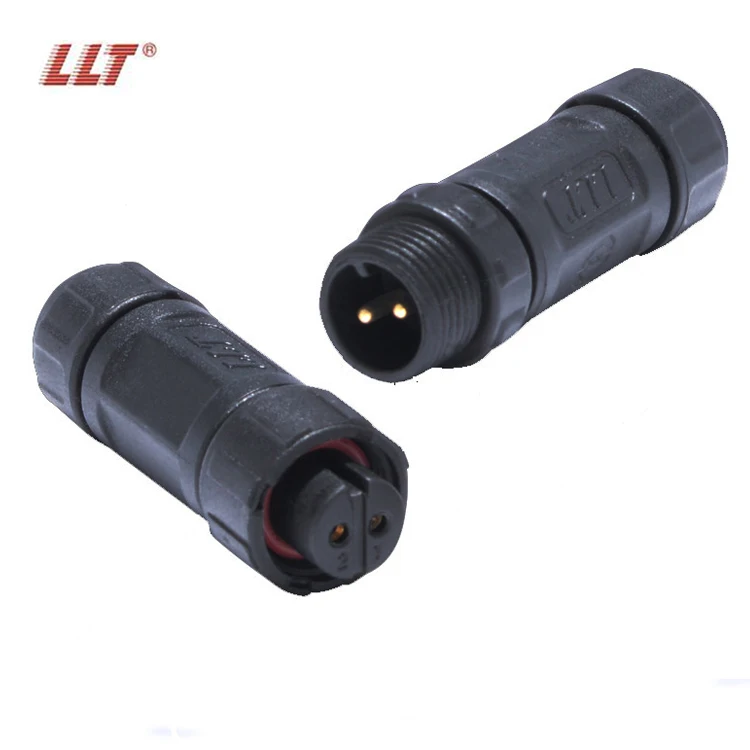

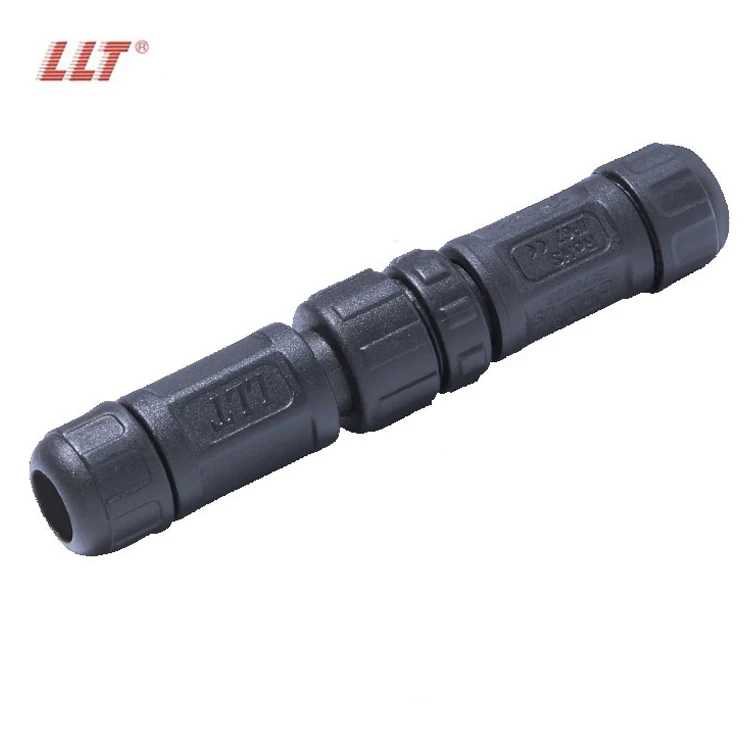

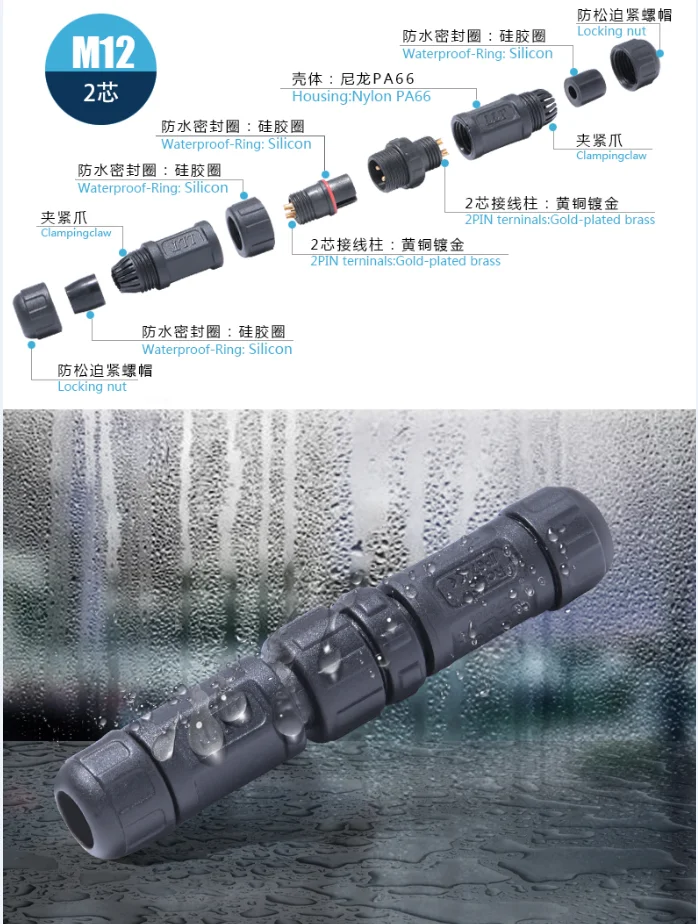

L[QI30L(`($8KHC(6)GM(EV.png A`5OMFDD}TB9`GC[P7`ROL.png -2 .jpg -3 .jpg

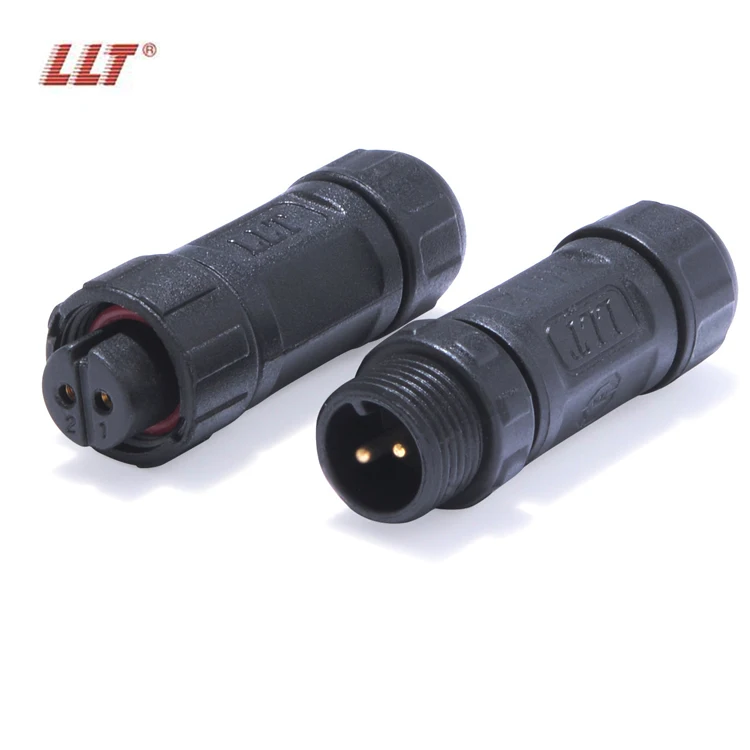

-1 .jpg

Products Advantage

.jpg certificate 1.jpg

Application

These products are widely used for outdoor lighting

Application

Company introduction

With stable,reliable quality and excellent service,We got good recognition and Comment from a lot of customers at home and abroad.

Through more than 20 years of unremitting efforts, LLT has a proven history of providing customer-driven, avant-garde, qualified safety products.

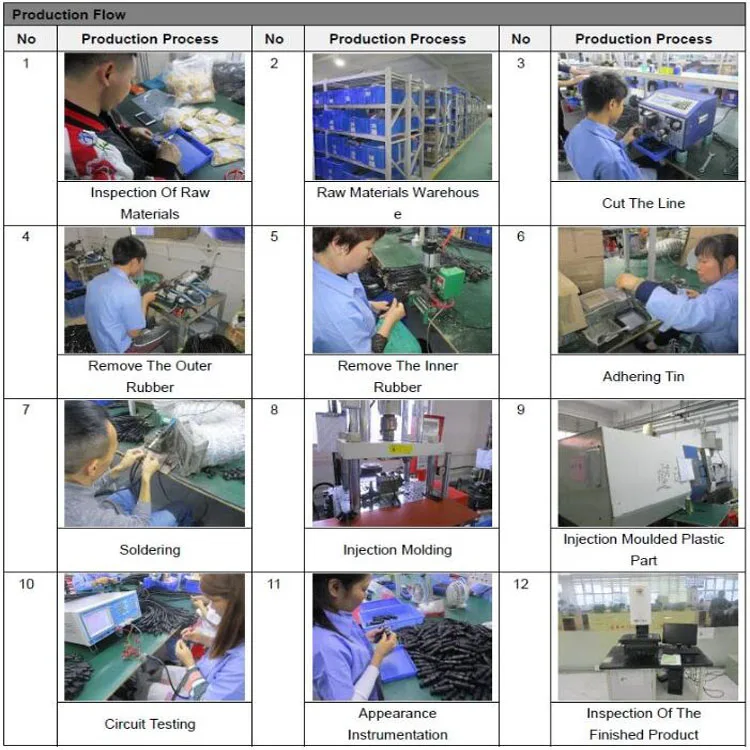

production flow .jpg

Packaging & Shipping

Packing :1.plastic bag 2.Carton 3. As customer requirement.
Shipping :all shipment term is available,Competitive express freight such as DHL/FedEx/UPS with door to door service, by air and by sea.

It is up to you!

FAQ

Q:Why choose us?

A:1.100% home made,competitive price and fast delivery.

2.strict quality control.Certified by ISO9001:2000/CCC/TUV/CE/PSE/CQC/ROHS/UL/SAA.

Q:How long is your delivery time?

A:Sample is 1-3 days;Mass products is 5-7 days.

Q:Do you provide samples?is it free or extra?

A:Yes,we could offer the sample for free of charge but do not pay the cost of freight.

Q:What is your terms of payment?

A:We accept Multiple payment methods such us T/T in advance,Western Union,Ali-trade assurance.

Q:Is it OK to print my Logo on the product?

A:Yes,we support OEM/ODM service.

Please contact me for other customers' feedback about our products and free sample!

Any need,please contact me for more detail!

website:http://www.lltelec.com/

Certificates

- CCC CQC2017010203019612
- CE POCE17120102JCS
- TUV 64100140229106
- UL E481414

Price

Price US$ 2 / Piece

Packaging & Shipping

- Packingplastic bag and carton
- Delivery Lead Time3-7days for 20pcs,15-20days for mass production
- Minimum Order 10 Piece
- Supply Ability60000set/day
- Total quantity in Stock1 - 10
- Delivery PortShenzhen
- HS Code85444221
- Shipping Career

Product Image

M12 IP67 IP68 Soldering 2 3 4 PIN Male Female Docking RGB Waterproof LED Strip Connector

Company Profile

About Llt Technology Industry Co., Limited

Membership Free member
Registration Date2021.12.18
Country/RegionChina
CityShenzhen
Contact Hannah He(Ms.)

LLT TECHNOLOGY INDUSTRY Co., Ltd ----based in ShenZhen which is a global large-scale production enterprise, specializing in the production of high tech precision outdoor waterproof connector,aviation plug,wire and cable.
With stable,reliable quality and excellent service,We got good recognition and Comment from a lot of customers at home and abroad.

Through more than 20 years of unremitting efforts, LLT has a proven history of providing customer-driven, avant-garde, qualified safety products.

Buying Categories

- Connectors & Terminals >> Electrical Equipment & Supplies

Selling Categories

- Electrical Equipment & Supplies >> Connectors & Terminals

Keywords

waterproof connector

Registration Date	2021/12/18(Year/Month/Date)
Buyer / Seller in EC21	Seller
Business Type	Manufacturer
Year established	1998
Employees total	501 - 1000
Annual revenue	More than 100,000,000

Contact Information Order Credit Report

Company	Llt Technology Industry Co., Limited
Address	No.1-38, Jiahu Road, Pinghu, Longgang District, Shenzhen city, Guangdong Province, ChinaShenzhenGuangdong518111China
Phone	86 - 134 - 81349062
Homepage	http://www.lltelec.com/
Contact	Hannah He
