ONE TOUCH INCLINOMETER CASING
Model : GV-2404-TCH
One-touch inclinometer casings are supplied with a male and a female couplings attached to both ends of the casing at the factory.
One touch inclinometer casing is used for eliminating rivet work that firmly connects the casing and the coupling in the field, silicone sealing to prevent grout into joint seam, and additional vinyl taping for protection of silicon sealing, The one touch assembling process can significantly reduce greatly simple installation process, saving time and labor.
One touch connection part was made of fresh ABS resin using precision injection plastic molding and the built in couplings were made of ABS adhesive optimized at factory high level quality control.

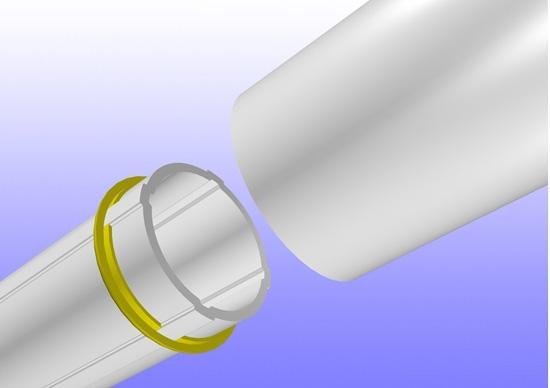

O-rings are attached on the male coupling to prevent penetration of grout or foreign fluids.
Around the male coupling, a certain length of protrusions are shaped, and when the female and male couplings are fastened, they have a strong resistance against the separation force due to its own weight and have an average holding capacity of 85kgf or more.

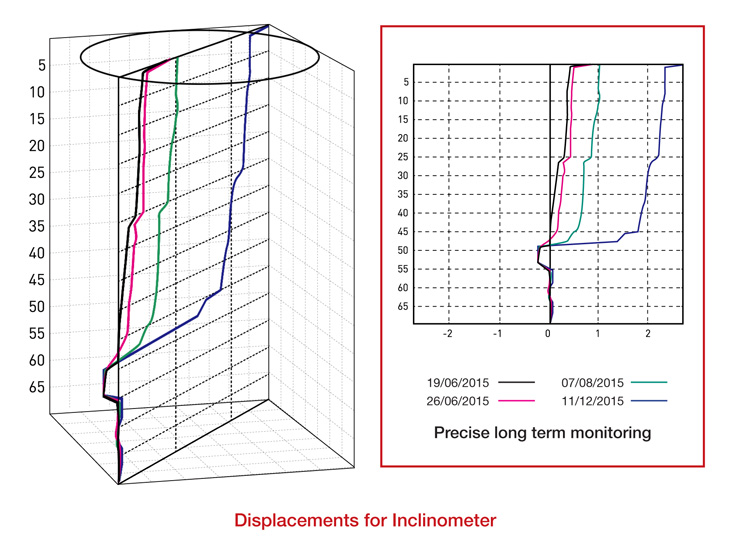

Application
- Monitoring lateral ground movement in land slide areas
- Measuring stability during site excavation
- Deflection of retaining walls and piles under heavy loads
- Measuring subsoil movement in reclamation and subsoil improvement sites
Features
- World best design patent pending
- Simplify installation tasks

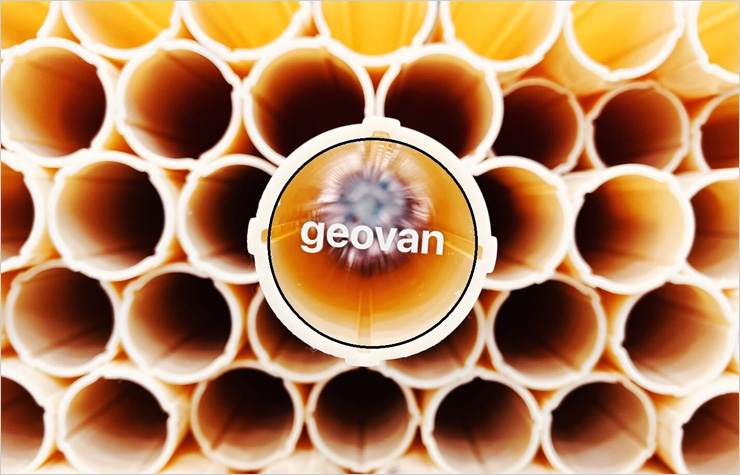

- Self alignment key way and grout tight O-Ring sealed coupling
- High precision injection mold way to guide grooves
- Low spiral less than 0.3 deg per 3 metre
Specification
Description |
One touch inclinometer casing |
Material |
ABS |
Groove Spiral |
<0.3 deg per 3 metre |
Collapse Rating |
1960kPa |
Bending Rating |
3.07kN |
Maximum Temperature |
80 |
Tensile strength after joint coupling |
85kgf |
Length |
3 metre |
Outer Diameter of coupling |
75mm |
Inner diameter of casing groove |
62mm |
Weight |
2.75kgs |
