Product Attributes

- Model Number GV_3axis anvib
- Place of Origin Korea
- Supply Type In-Stock Items
- Condition New
- Related Keywords ble inclinometer

Description by Manufacturer

BLE INCLINOMETER

Model : GV_3axis anvib


Precise tilt monitoring	Wire range measurement	Smart structure health control

Application

Structural Health Monitoring
Rail track heave / settlement monitoring
Tunnel wall deformation monitoring
Steep slope safety monitoring
Positioning and Levelling

Specification

Range +/-90deg Triaxial Inclinometer ( X / Y / Z )
Resolution 0.0001deg (0.001745mm/m)
Power 3Vdc per 300days @ 60S
Self signal transmission, default 60seconds
Android OS Reading, Store memory and Send data to FTP
Weight 120grams
Recommended operating temperature range -10℃ ~ +60℃
Wireless distance from open space 30M
Bluetooth 5.0 Class 2

Physical Dimension

Device configuration

Inclinometer sensing assembly 1EA
BLE antenna asssembly 1EA
AA1.5Vdc 2EA Battery holder 1EA
Plastic Enclosure 1EA

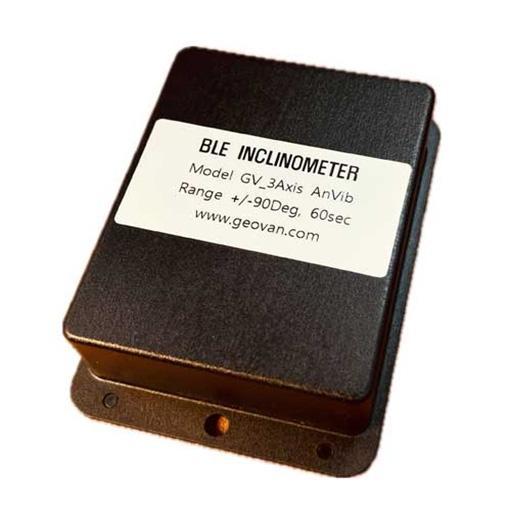

Product Image
