Product Attributes

- Model Number GV-2403
- Place of Origin Korea
- Supply Type In-Stock Items
- Condition New
- Related Keywords crack meter

Description by Manufacturer

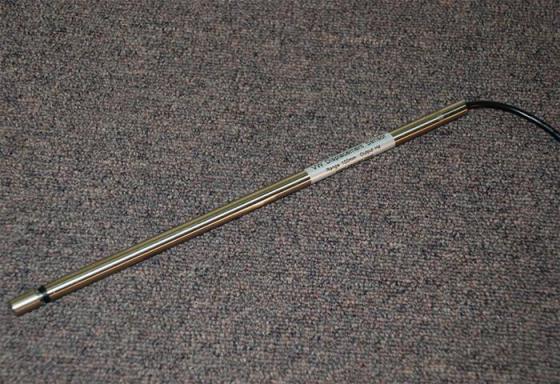

VW Crackmeter

Model : GV-2403

The VW gauge operates on the principle that a tensioned wire, when plucked, vibrates at its resonant frequency. The square of this frequency is proportional to the strain in the wire. Around the wire is a magnetic coil which when pulsed by a vibrating wire readout or VW data logger interface plucks the wire and measures the resultant resonant frequency.

A change in distance between the anchors caused by the crack opening or closing causes the inner free-sliding rod to move within the outer body which changes the tension on the spring and the vibrating wire thus altering the resonant frequency of the wire.

Features

Displacement monitoring
Use for Rod Extensometer
Robust design & Simple structure
Stainless steel Housing
High accuracy & resolution
Long term stability
Stable Vibrating Wire signal

Specification

Items	GV-2403
Range	50mm, 100mm, 150mm, 200mm
Rated Output	Hz² x10^-3 digit
Non-Linearity	Less than 0.1% Rated Output
Working Temperature	-20°C ~ 80°C
Outer Diameter	19mm
Overall Length	Approx 300mm
