Product Attributes

- Model Number VW_SMART MODULE
- Place of Origin Korea
- Supply Type In-Stock Items
- Condition New
- Related Keywords vibrating wire monitoring

Description by Manufacturer

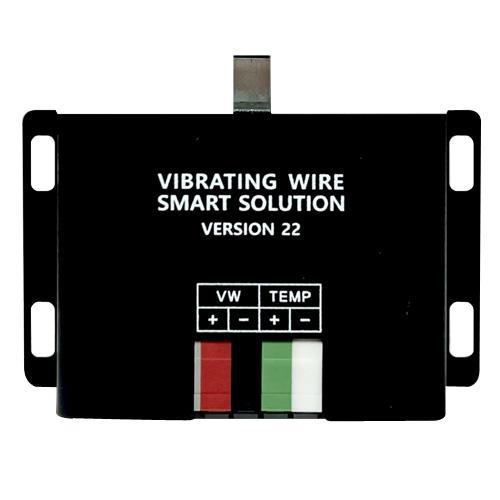

VIBRATING WIRE SMART SOLUTION

Model : VW_SMART MODULE

It is vibrating wire reading module to connect Android smartphone or tablet PC. Vibrating Wire Data in my hand and any Desk PC right away. Design with intuitive menu, Just start monitoring. Powered by Internal smartphone battery. Simple Menu, Manual Reading or Automatic Reading Selection. Draw real time data graph on the phone. Data collected during automatic reading is auto polling sent by e-mail periodically. Various communication supports WIFI, LTE, 5G regardless of wireless connectivity license. Call internal recorded VW data if WIFI, 5G, LTE are no service area. Light weight 100 grams, small size 81 x 53 x 16mm USB C (installation wing hole frame excluded) Select suitable sweep Hz range with specific factor from A/B/C/D/E/F mode Sweep range 450 to 6,000Hz

CLICK THE MENU YOU WISH TYPE OF MONITORING

MODE OF VIBRATING WIRE

Display Mode	Item	Calculation	Units	Frequency Sweep(Hz)
A	All	Period	μ seconds	450-6000
B	Load cell, TPC, Piezometer	F² x 10^-3	Digits	1200-3500
C	Arc weldable strain Gauge	F² x 10^-3 x 4.062	μStrain(ε)	450-1000
D	Embedment strain Gauge	F² x 10^-3 x 3.304	μStrain(ε)	450-1000
E	Spot weldable strain Gauge	F² x 10^-3 x 0.39102	μStrain(ε)	1000-3500
Temp.	NTC 3kΩ at 25°C	Table Sheet	Thermistor

COLLECT DATA

Record data and display real time graph, Transmit data to your email address. It does not need specified Server or FTP. You can review data in your smartphone memory folder.

CONTINUOUS MONITORING

Continuous monitoring is possible if Electrical power is supplied at all times. Power supply and data collection are performed simultaneously through the USB C type OTG splitter.
Precautions, the device battery heat radiation, Google security controls, etc may affect the systems for long term use.

Product Image
