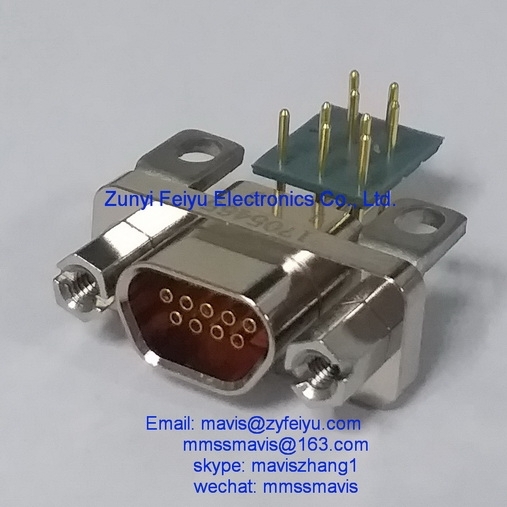

J30J series product feature
- meet the performance requirements of MIL-DTL-83513
- corresponding to American MDM & M series products, etc
- multiple optional No. of contact: 9, 15, 21, 25, 31, 37, 51, 66, 69, 74, 100, 144
- micro twist pin contact system
- contact spacing: 0.05'' / 1.27mm
- high contact density
- sectional area of wire core: 0.035mm2 ~ 0.2mm2, recommended to select 0.1mm2 ~ 0.15mm2
- product performance comply with GJB2446 ( equivalent to MIL-C-83513)
- executive enterprise tandard: Q/FY QJ0001-2010 « J30J series miniature rectangular electrical connector detailed norm »
Main tech performance
| Environmental temperature |
-550C ~ + 1250C |
Contact resistance |
≤ 10mΩ |
| Relative humidity |
+400C up to 95% |
Insulation resistance |
≥ 5000MΩ |
| Vibration |
10 ~ 2000Hz 196m/s2 |
Dielectric withstanding voltage |
800V |
| Impact |
735m/s2 |
Durability |
500 cycles |
| Total acceleration RMS |
23.1G |
Instant break time |
≤1 µ s |
| Current rating |
3A |
|
|
Our Advantage
FEIYU Qualified supplier of key member institutions of China’s Top Ten Military Industry Groups
FEIYU 9 years’ experience professional manufacturer of mil spec connector and cable assembly
FEIYU passed certification of National High and New Tech Enterprise issued by government
FEIYU was granted Intellectual property pilot unit by government
FEIYU has qualification of Innovative Enterprise granted by government
FEIYU has National three-level confidentiality qualification
FEIYU has Weapons and equipment research and production license issued by National Defense industry Science and Technology Bureau
FEIYU has Equipment Contractor Qualification authorized by Equipment development department of Central Military Commission
Quality standard: ISO 9001 & GJB 9001 C military quality system certification
Lifelong responsibility for product quality
Competitive price: being as manufacturer (factory), we make R&D, produce and sell by ourselves, eliminated intermediate links
If you don't know how to choose relative products, contact us and tell us about your requirements, we can offer help and recommend the best solutions
Besides our regular models, customized products are also welcome
