Mining Machine Mineral Ore Washing Spiral Classifier

Add to Basket Share to :

Price

US$ 5000

Min Order Quantity1 / set
Supply Ability1000 sets per minth
Portxiamen
Delivery Lead Time 15 days

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Jiangxi Hengcheng Mining Equipment Co., Ltd.
Membership Free member
Registration Date2012.10.19
Country/RegionChina
CityGanzhou
Contact Jarl Wen(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Jarl Wen

Jiangxi Hengcheng Mining Equipment Co., Ltd.

* Buying Product

Category : Mining Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name hengcheng
- Model Number FG/FC
- Place of Origin China
- aftersales service machine use time
- Usage ore mineral separation
- application alluvial / rock ore
- quality warranty 1 year
- overseas service available
- Related Keywords spiral classifier

Description by Manufacturer

Mining Machine Mineral Ore Washing Spiral Classifier
Machine description:

Spiral Classifier mainly include four types. They are high weir type single spiral classifier, high weir type double spiral classifier, immersed type single spiral classifier and immerse type double spiral classifier.

A spiral classifier is composed of a transmission device, spirals, tank, elevator mechanism, a bottom support (bearing bush) and a discharging valve.

Technical Data

Model	Spiral Diameter	Length of pool	Rotation Speed (r/min)	Power(kw)		Dimensions (mm)			Weight (T)
				Drive	Lift	L	W	H
FG-3	300	3000	12-30	1.1	--	3850	490	1140	0.7
FG-5	500	4500	8-12.5	1.1	--	5430	680	1480	1.6
FG-7	750	5500	6-10	3	--	6270	980	1820	2.7
FG-10	1000	6500	5-8	5.5	--	7590	1240	2380	4
FC-10		8400		7.5		9600	1240	2680	6
FG-12	1200	6500	4-6	7.5	2.2	8180	1570	3110	8.5
FC-12		8400		7.5	2.2	10370	1540	3920	11
2FG-12		6500		15	4.4	8230	2790	3110	15.8
2FC-12		8400		15	4.4	10370	2790	3920	17.6
FG-15	1500	8300	4-6	7.5	2.2	10410	1880	4080	12.5
FC-15		10500		7.5	2.2	12670	1820	4890	16.8
2FG-15		8300		15	4.4	10410	3390	4080	22.1
2FC-15		10500		15	4.4	12670	3370	4890	30.7

Company information:
Jiangxi Hengcheng Mining Equipment Co.,Ltd is a leading mining service company specialized in designing, manufacturing, installing and debugging of mining equipment as well as providing flow sheet design and course training of beneficiation, now our factory is a leading manufacturer and supplier of gravity mining equipment in China.Meanwhile, we adhere to international market exploration, according to the foreigners demand and the superior products, continuously to expand the international markets.

Our company goal is to provide customers with onepackage service in the field of mining, including mineral analysis, mineral processing test, engineering design, equipment production, equipment installation, equipment maintenance and technical training etc.

For more details,please kindly visit our website: http://www.oreshaker.net or
http://www.hengchengmachinery.en.alibaba.com

Price

Price Condition FOB
Price USD 5000 / set

Packaging & Shipping

- Packingcontainer loading
- Package Weight 0.7 ( Metric Tons )
- Delivery Lead Time 15 days
- Minimum Order1
- Supply Ability1000 sets per minth
- Delivery Portxiamen

Product Image

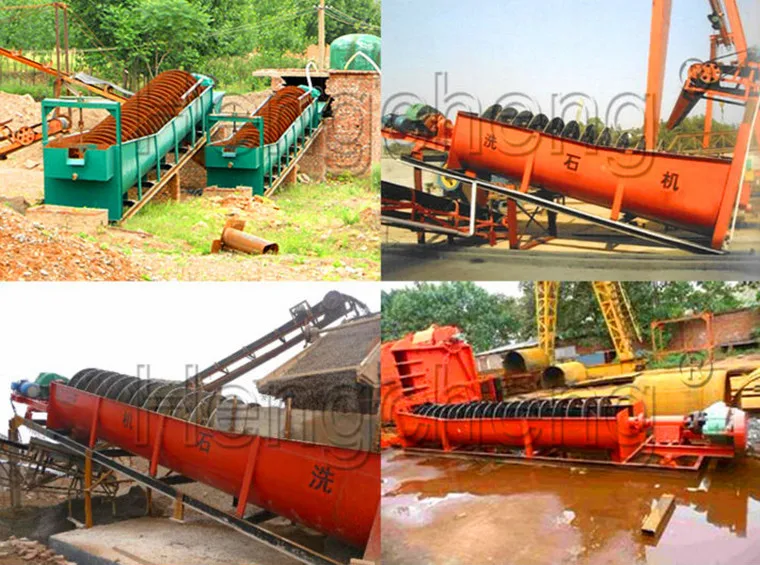

Mining Machine Mineral Ore Washing Spiral Classifier
