Online Ph Sensor Orp Sensor Digital Ph Probe with RS485 for Water Treatment Phd/ORPD-6000

Add to Basket Share to :

Price

US$ 850

Min Order Quantity2 Piece
Payment Terms 1
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Hunan ChiMay Technology Co., Ltd.
Membership Free member
Registration Date2022.03.17
Country/RegionChina
CityYueyang
Contact Yann(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Ph Sensor, Orp Probe, PH meter, ORP meter, water treatment

Description by Manufacturer

pHD/ORPD-6000 is not a traditional pH sensor, but a pHD/ORPD data acquisition terminal, which directly uses RS485 physical port to transmit data without distortion to industrial computer, PLC, touch screen and other platforms, compatible with the Internet+ and Networking with the application of traditional technology. And once wiring is used permanently.

Supporting applications

² Directly used as the data acquisition terminal of the industrial field DCS and PLC system;

² Directly Access to cloud communication and big data platform through DTU of GPRS system;

² Directly use the WiFi module as a nearby wireless data collection terminal;

² The remote wireless collection terminal can be achieved through the ZigBee/Lora module;

² Optical remote data collection can be realized through optical transceiver and far infrared terminal;

² Support traditional 4-20mA industrial system (cable end RS485/4-20mA) module conversion;

² It is equipped with RS485/WiFi/USB multiple tool converters to realize APP calibration, address and baud rate search and configuration of the collection terminal;

² With the aid of the calibration PC/APP device (pHC/ORPC-6110), it can realize batch calibration in the laboratory, and replace the new humanized maintenance mode without difference on site;

² No special low-noise cable is needed for free extension in the middle, and the maximum direct distance is close to one kilometer without affecting the use.

Main technical indicators

Product model	pHD/ORPD-6XXX series
Product name	pHD/ORPD data acquisition terminal
Measure item	pH	ORP	Enclosed temperature
Measure range	2.00~12.00	(-1999~1999)mV	(0~50)℃
Resolution	0.01	1mV	0.1℃
Accuracy	±0.1	±5mV	±0.5℃
Working environment	Temperature:(-20~60)℃; Humidity:≤90%RH(Non-condensing)
Withstand stress	0.4MPa
Cable length	Standard at 10m, Can support up to 200m (by appointment)
Protocol	RS485 communication (standard Modbus-RTU protocol)
Power supply	DC (9~28)V
Whole machine consumption	1.2W
Weight	0.6kg
Main material	ABS
Dimensions	φ45mm*220mm
Pipeline installation	NPT 3/4” chemical front end
Environmental protection bracket	Thread:NPT3/4

pH sensor install

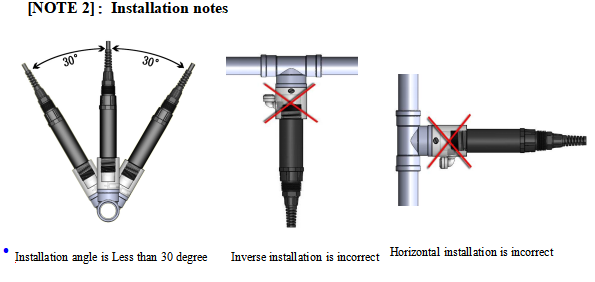

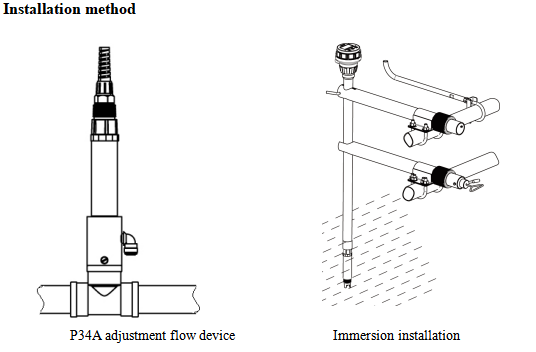

[Note 1]: Regarding installation method

A. Regular questions:

1. User should cut off the flow before replacing sensor.

2. Fast flow and air bulbs will cause instable measurement.

3. Higher pipeline pressure will damage the sensor

4. There will be big error when testing pure water or ultra pure water.

5. The sensor will fail very soon if for testing pure water.

6. Conductivity will rise if electrode electrolyte diffuses in water through liquid junction.

7. Negative pressure will damage the sensor.

8. Water particles and fibrous material will damage the sensor.

B. Measurement equipment

1. The patent product(patent No:CN200820077131.X)P34,installed between pipeline and sensor.

2. The sensor can be replaced without cutting off water flow.

3. The reading will be accurate and stable when testing pure water. The working life is longer.

4. There is no electrode electrolyte diffuses in water

Packaging & Shipping

Standard packaging for international logistics transportation

Price

Price US$ 850 / Piece

Product Image

Online Ph Sensor Orp Sensor Digital Ph Probe with RS485 for Water Treatment Phd/ORPD-6000

Product Video

Online Ph Sensor Orp Sensor Digital Ph Probe with RS485 for ...

Ph Sensor Related Products

Main Export Markets

- Hunan ChiMay Technology Co., Ltd. is mainly exporting to Asia, Europe, North America, South America, Australia, Africa

Download Product Brochure

ChiMay Fitting Catalog WO link.pdf (4.62 Mb) ChiMay Controller Catalog 2020.pdf (4.92 Mb)

Company Profile

About Hunan ChiMay Technology Co., Ltd.

Membership Free member
Registration Date2022.03.17
Country/RegionChina
CityYueyang
Contact Yann(Mr.)

ChiMay is a professional provider for water control valves, water quality analysis instrument, sensors and water purifier quick connector, registered in Hunan province, has an office in Shanghai. We provide one stop shop solution for water related components and sensors.
Water Quality Analyzer plants provides kinds of online water quality instrument, like conductivity, total solid solubility (TDS), resistivity, pH, redox potential, dissolved oxygen, temperature, residual chlorine, and reverse osmosis program controller etc.
Control valve including different sizes of water filter valve and water softener valve.
Sensor contains all kinds of water quality analysis sensors, also has pressure sensor, lever sensor and smart electronic switch.
Quick connetor plant is specialized in producing POM quick connectors, PE pipelines, ball valves, filter elements and filter bottle etc.
