Product Attributes

- Model Number Y310
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords OTR tester, Oxygen Permeability Test

Description by Manufacturer

Y310 Oxygen Permeability Testing Insrtument

Standards:

ASTM D3985, ASTM F2622, ASTM F 1927, ASTM F 1307, ISO 15105-2, DIN 53380-3, JIS K-7126-B

Function:

To test the oxygen transmission rate (OTR) of packaging materials, such as plastic film, composite film, coextrusion film, aluminum-plated film, aluminum foil, infusion bag, sheets, paper, paper board, solar battery panel, cellophane, ceramics and porcelain, and various containers such as bag, pouch, bottle, can, bowl, box, widely used in the industries of food, pharmaceuticals, personal care, household, electronics and so on.

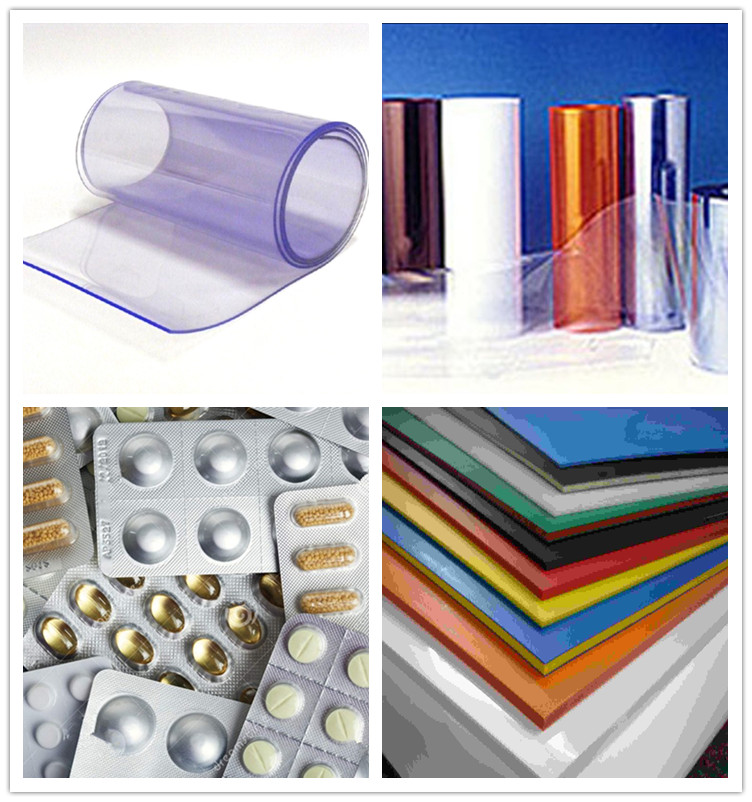

Application :

* Films
rigid films, shrik films, stretch films, plastic films, plastic composite films, paper-plastic composite films,aluminized films, aluminum foil, aluminum composite films, high barrier films and many others. Eg. PET, OPP, CPP, LDPE, BOPP

* Sheet
engineering plastics, rubber, waterproof building materials, and thermal insulation materials, e.g. PP, PVC, PVDC, and nylon

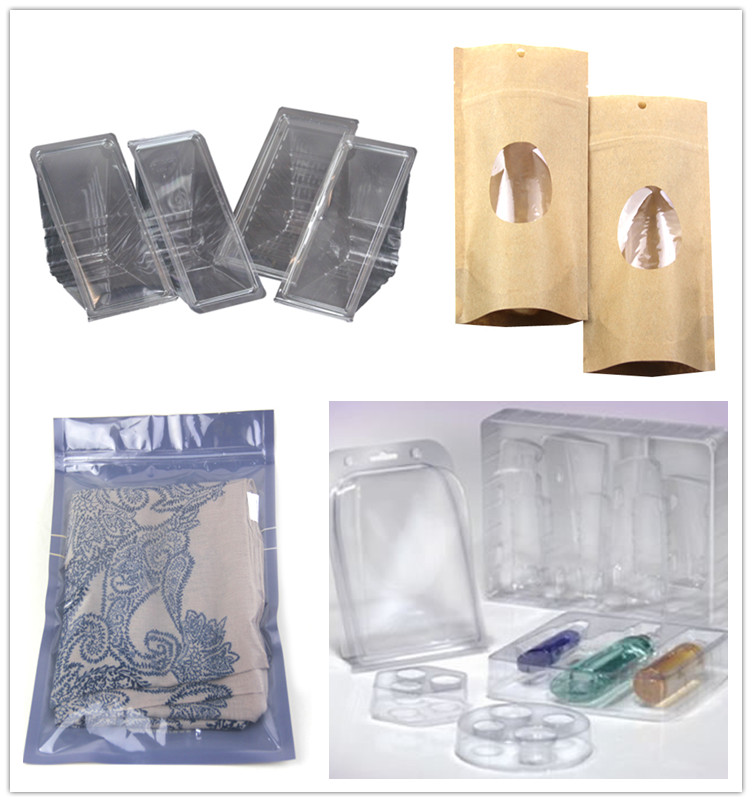

*Packages
paper, plastics, rubber,paper-plastic composite, glass, and metal packages, eg: bottles, containers

Working principle

Gravimetric method. Fix the test sample in the middle of test chamber to separate the chamber into upper room and lower room; humid gas flows in upper room, and place desiccant device in lower room; as in lower room it remains dry (0-8%RH) by desiccant, water molecules penetrate through the sample from upper room into lower room, absorbed by desiccant; then the cup weight will increase; system weigh the increasing cup weight so as to calculate the water vapor transmission rate.

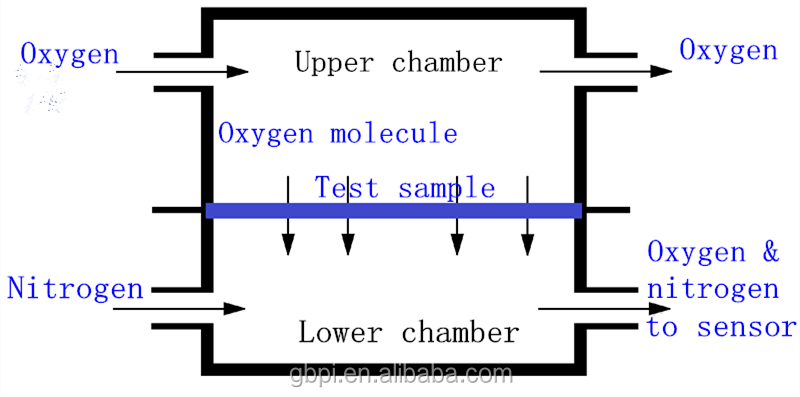

Working principle diagram:

Techinical parameter:

Test range	0.02 ~ 16500 cm3/m²24h (transmission max: 260000 cm³/m²24h)
Test accuracy	0.001 cm³/m²*24h
Temperature range	15℃~45℃ (5℃~50℃ optional)
Temperature accuracy	±0.1℃
Humidity range	0%RH, 30~90%RH, 100%RH
Humidity accuracy	±2%RH
Gas supply pressure	0.1~0.2MPa
Environment temperature	23℃
Sample size	Φ100mm
Test area	50.24cm²
Sample thickness	≤ 2mm
Number of samples	3 pieces
Carrier gas port	1/8 inch
Instrument size	600x460x360mm
Power supply	AC 220V 50Hz

Features:

1, Automatic test, use friendly,

2, High-precision sensors with over-range protection, continuous data collection, accurate and reliable data;

3, Two calibration methods of standard gas calibration and standard film calibration,

4, Versatile functions such as the auto leakage protection function, automatically judges and stops;

5. Double chamber pressure control and pressure automatic balance.

6. Superior components ,multi-level security protection design;.

7. Versatile operation language support .

After sale Service:

l 2 years coverage

l Speedy reply, 12hrs response to customer questions

l Software free update

l Minor maintenance ---parts ship within 24 hrs

l Major maintenance---Technical will be sent within 15 days

l Free inhouse training for customer operator

Certificates:

Our customer:

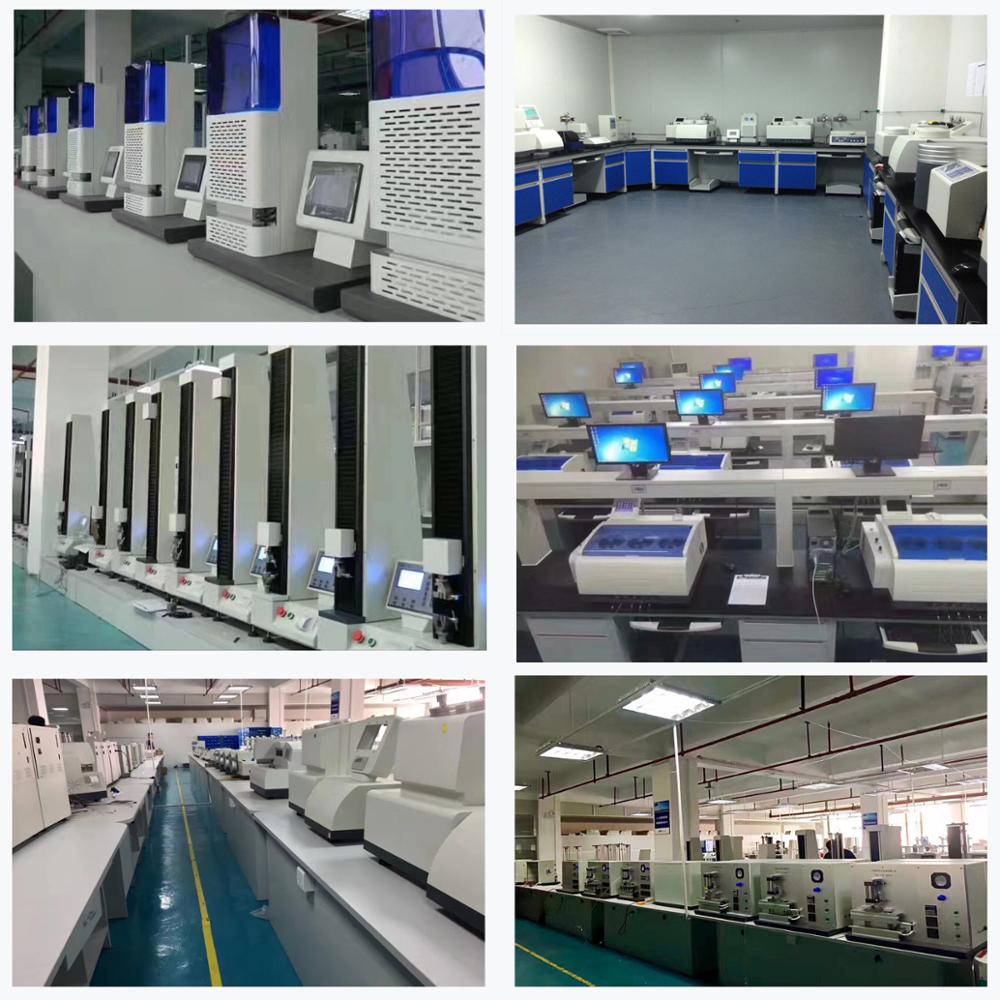

Our Laboratory:

Our team:

Product Image

Oxygen Permeability Testing Instrument (OTR Tester)

OTR Tester Related Products

Company Profile

About Guangzhou Biaoji Packaging Equipment Co., Ltd.

Membership Free member
Registration Date2022.08.29
Country/RegionChina
CityGuangzhou
Contact Candy Huang(Ms.)

GBPI is an ISO9001 and CNAS certified company specialized in testing instruments for packaging,printing,pharmaceutical industry. Our R&D team can meet your special request with customized equipment. We enjoy good reputation in Chinese market, and are well known for quality and service support. We are growing our international customer base and making significant progress in the industry. We will be continuously growing and ready to serve your needs.All our Instruments confirm compliance with ISO9001, CE, ASTM, FCC, GB, DIN and JIS standards and ensures optimum accuracy in the result.
