Mini 0.5~1200MHz Analog Wideband Transceiver Module

product description:
The Mini analog wideband transceiver module is a low-cost, high-performance analog wideband transceiver with a very wide dynamic range, designed specifically for optical fiber RF applications. A pair of transceivers will create two-way RF to optical and optical to RF conversion and transmission links that can provide high spurious free dynamic range (SFDR), operating at frequencies from 0.5MHz to 1200MHz. The standard optical connector is FC/APC for low back reflection applications, and the RF interface is via a 50 ohm SMA connector. The receiver uses high performance InGaAs photodiode, the transmitter uses linear optical isolation FP/DFB laser, and the optical fiber uses 9/125 μm single-mode fiber with working wavelength of 1.3 or 1.5μm.

Product feature:
Bandwidth response 0.5MHz to 1200MHz
Tight cast metal case
High SFDR
flat frequency response
1.3 and/or 1.5μm with isolated FP/DFB

Application:
WiMAX / 4G LTE
5G communication
Shipborne radio frequency distribution
satellite earth station

Please Contact us for an accurate quote.
performance parameters:

parameter	symbol	Minimum value	Typical value	Maximum value	unit
Supply voltage	VCC	9	12	15	Volts
Supply current (total current received and received)	ICC		100		mA
Laser output power			2	4	mW
Transmitter operating wavelength			1310/1550		nm
Receiver operating wavelength			1310/1550		nm
High frequency cut-off	HFC		0.5		MHz
Low frequency cutoff	LFC		1200		MHz
Frequency response(0.5- 1200 MHz)			± 1.5	± 2	dB
Input RF power			-5		dBm
input/Output impedance	Z		50		Ohms
Voltage Standing Wave Ratio VSWR			1.5		dB
Rf link gain		-5	0		dB
Rf connector		SMA
Optical fiber connector		Single-mode fiber 900um Protective casing FC/APC

Limit parameters :

parameter	symbol	Minimum value	Maximum value	unit
Storage temperature	TS	-40	+85	ºC
Operating temperature	TO	‐25	+65	ºC
DC Supply voltage	VDP	+9	+15	V
Maximum RF input(Tx)			+10	dBm
Maximum optical input (Rx)			4	mW

order information:
*please contact our seller if you have special requirements

Price

Price US$ 999 / Chain

Product Image

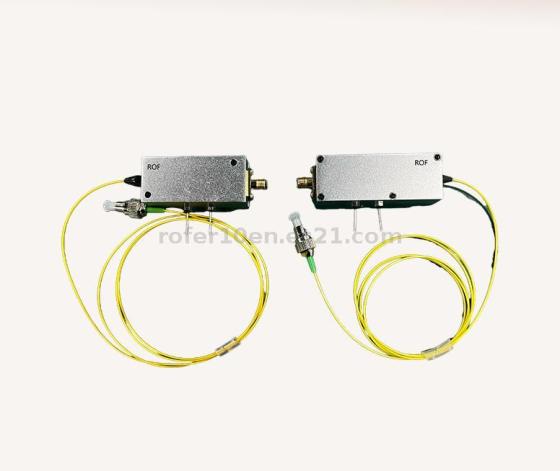

Rof Optoelectronics Mini 0.5~1200MHz Analog Wideband Transceiver Module Optical Transmission
