Description by Manufacturer

Product Description

Small Reduction Stepper Motor - 5VDC 32-Step 1/16 Gearing

Application:

Refrigeration Industry

Air Conditioner, Fan

Monitoring Industry(CCTV)

Camera

Sanitary Ware

Automatic Toilet Bowl

Electric Generator

Valve Control

Other Industries & Applications

Robotics

General Specification:

Item	Specification
Step Angle Accuracy	±8%(full step, no load)
Resistance Tolerance	±10%
Inductance Tolerance	±20%
Temperature Rise	80.C Max.(rated current,2 phase on)
Ambient Temperature	-20.C~+50.C
Insulation Resistance	100MΩMin. ,500VDC
Dielectric Strength	600VAC , 1s , 3mA

Specification:

Model No.	Step Angle (Deg.)	No. of Phase	Rated Voltage (VDC)	Current/Phase (A)	Resistance /Phase(Ω)	Max Starting Frequency (pps)	Detent Torque (gf.cm)	Pull-in Torque (gf.cm)	Wire Diagram
28BYJ48-01	5.625/64	4	5	0.08	60	500	350	350(at 100pps)	B
28BYJ48-16	5.625/16	2	12	0.15	80	500	350	450(at 100pps)	A
28BYJ48-17	5.625/16	4	5	0.20	25	800	350	450(at 100pps)	B
28BYJ48-03	5.625/64	4	12	0.06	200	600	350	350(at 100pps)	B
28BYJ48-04	5.625/64	4	12	0.04	300	600	350	350(at 100pps)	B

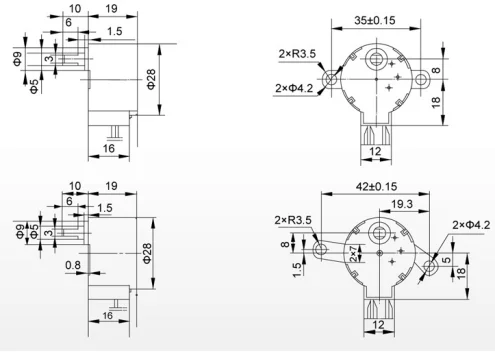

Dimension:

Wire diagram:

Customization On Call:

Coil Modifications - Resistance and Inductance.

Magnets - to yield higher linear force or reduced detent levels.

Higher Strength Plastics for higher impact forces.

Reduced or increased Detent Force to suit the application.

Screw - metric or imperial tips, length.

Special Flanges, Connectors.

Wire Harness - connectors, pins, lead length, shrink tubing.

photobank

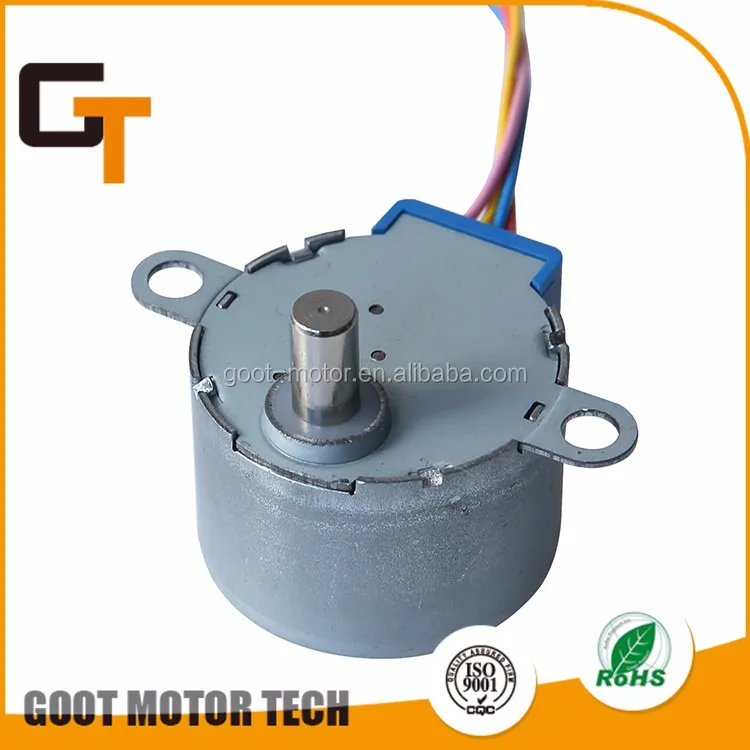

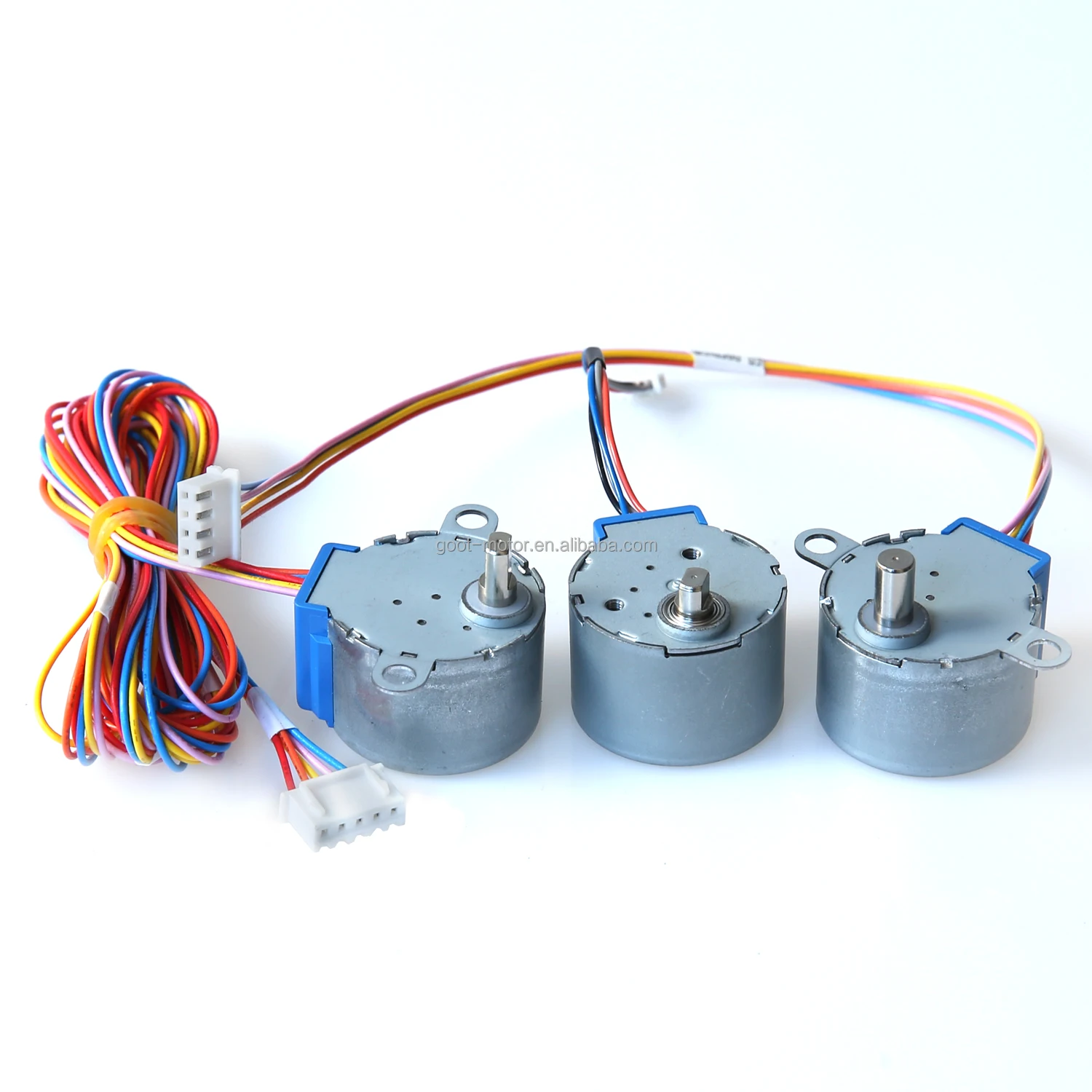

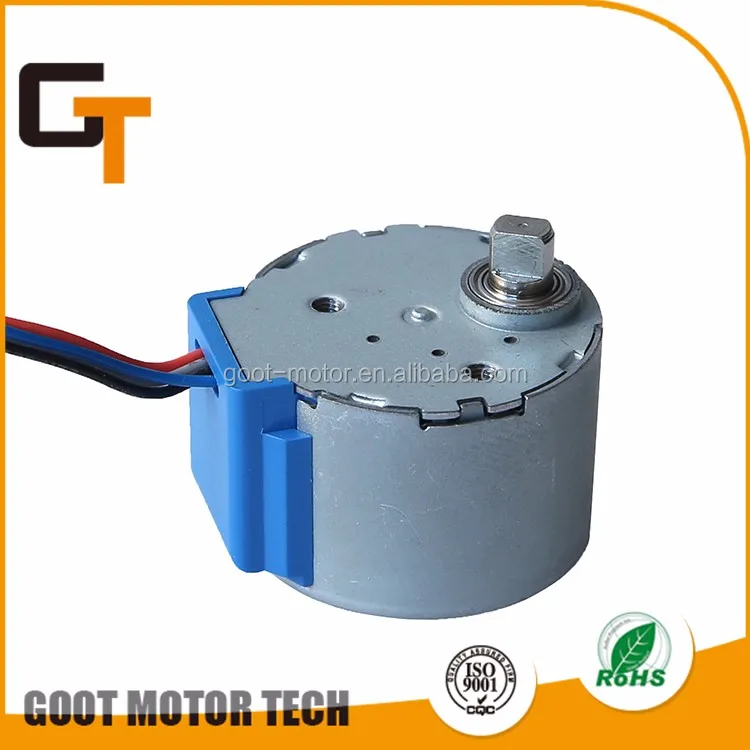

Picture of gear reducer stepper motor group:

Hot selling gear reducer stepper motor group with low price

Packaging & Shipping

- Delivery Lead Time15-25days
- Supply Ability400000pcs per month
- Shipping Career

Product Image

Small Reduction Stepper Motor - 5VDC 32-Step 1/16 Gearing
