Support MPEG-2/4 Encoder , 4 in 1 Super Encoder with IP COL5141BP

Add to Basket Share to :

Price

US$ 950

Supply Ability10000pcs per month
Portchengdu
Delivery Lead Time2-5 days after payment confirmmed

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Colable Electronics.,Ltd
Membership Free member
Registration Date2015.06.01
Country/RegionChina
CityChengdu
Contact Dana Zhang(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Dana Zhang

Colable Electronics.,Ltd

* Buying Product

Category : Radio & TV Broadcasting Equipment

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name COLABLE
- Model Number COL5141BP
- Place of Origin China
- input 4cvbs,1ASI,4 stereo audio
- video encoding mpeg-2/mpeg-4
- audio encoding MPEG-1 audio x-layer2
- Related Keywords MPEG-2/MPEG Encoder, Encoder with IP, tv encoder, digital tv encoder

Description by Manufacturer

COL5141BP MPEG-2 Super Encode with IP(4 in 1)

Outline

The COL5141BP MPEG2 Encoder with IP (4 in 1) is a professional audio &video encoding and

multiplexer device. This device has four CVBS input interfaces and four pairs of unbalanced

analogue stereo audio input interfaces, and two ASI output interfaces which can output the

multiplexing and condensed data. Moreover, this device can simultaneously encode four channel

audio& video signal and can multiplexer one ASI input stream to MPTS. Besides, it supports the

criterion MPEG-2 encoding format, and the audio encoding formats include the MPEG1-LAYER 2,AAC,AC3 and so on. In conclusion, its high compatibility and integrate design make this device

widely used in a variety of digital TV broadcasting systems.

Features

ü Supports MPEG-2 MP@ML(4:2:0) video encoding, and advanced video pre-treatment

ü The audio formats are MPEG-1 Audio Layer2,AAC,AC3( optional)

ü Four CVBS video input

ü Four pairs of unbalance stereo audio input

ü Multiplexes one ASI input

ü Supports PAL,NTSC SD signal

ü Supports D1,HD1,2/3D1,3/4D1 resolution

ü Supports MPTS output

ü Keyboard and LCD operation

ü Support NMS operation

Specifications

Input	4 CVBS inputs , BNC interface
	4 pairs unbalanced stereo audio input, BNC interface
	1 ASI stream input, BNC interface
Video	Resolution	720×480_60i, 544×480_60i,352×480_60i *320240_60i ,176240_60i, 176120_60i**
	Resolution	*720×576_50i ,704576_50i,640576_50i,* *320288_50i, 176288_50i, ,176144_50i**
	Encoding	MPEG-2 MP@ML
	Chroma Format	4:2:0
	Bit-rate	0.8Mbps~20Mbps each channel
	Rate Control	CBR/VBR
	GOP Structure	IBBP
	Advanced Pretreatment	De-interlacing, noise reduction, sharpening
Video	Encoding	MPEG-1 Audio Layer 2,AAC,AC3
	Sampling rate	48KHz,44.1KHz,32KHz
	Resolution	24-bit
	Bit-rate	32Kb/s—384Kb/s each channel
Multiplexing		1 ASI input multiplexed with local 4 channels TS
Stream output		2-way ASI output, BNC interface, ip output
System function		LCD/keyboard, network management, Chinese and English language
System function		Ethernet software upgrade
Miscellaneous	Dimension (W× L× H)	483mm×410mm×45mm
	Approx weight	3kg
	Environment	0~45℃(work);-20~80℃(Store)
	Power	AC 100~240V±10%,50/60Hz

Price

Price Condition FOB

Packaging & Shipping

- Packingcarton
- Delivery Lead Time2-5 days after payment confirmmed
- Minimum Order1 piece
- Supply Ability10000pcs per month
- Delivery Portchengdu

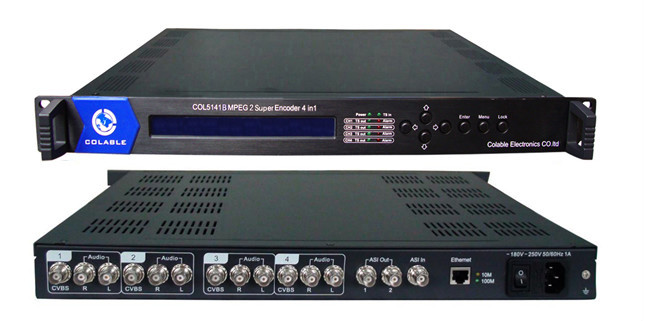

Product Image

Support MPEG-2/4 Encoder , 4 in 1 Super Encoder with IP COL5141BP
