THV Calibration Bench for Calibration and Certification of Gauging Equipment of Small Dimension

Add to Basket Share to :

Price

US$ 9500 ~ 16000

Min Order Quantity1 Piece
Payment Terms 7
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Trimos SA
Membership Free member
Registration Date2022.11.07
Country/RegionSwitzerland
CityRenens
Contact Katalin Bede(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name Trimos
- Model Number THV
- Place of Origin Switzerland
- Supply Type In-Stock Items
- Condition New
- Color White
- Related Keywords calibration bench, swiss made, precision, horizontal measuring, calibration

Description by Manufacturer

The Trimos horizontal THV has been designed for calibration and certification of gauging equipment of small dimension. It allows easy and precise checking of plug gauges, ring gauges, thread plug gauges, test and dial indicators as well as measuring of high precision production parts. Due to its small size, The THV can be moved easily. It is therefore often used as mobile calibration station.

Ideal for use in a clean room and in the workshop area

The instrument meets the requirements of all ISO 9000

Very simple manipulation

Large range of accessories

Checking of external and internal dimensions

According to the application, can be sed in horizontal or inclined up to 90°

Technical specifications

TVH
Absolute measuring range	mm (in)	50 (2)
Application range (external measurements)	mm (in)	100 (4)
Application range (internal measurements)	mm (in)	100 (4)
Max. permissible errors	µm	0.2 + L(mm)/250
Repeatability (2s)	µm	0.1
Resolutions (depending on display unit)	mm (in)	0.1 ÷ 0.00001 (.0001 ÷ .0000001)
Measuring force (adjustable)	N	0 ÷ 4
Operational temperature	°C	+10 ÷ +40
Temperature of storage	°C	-10 ÷ +40
weight	kg	22

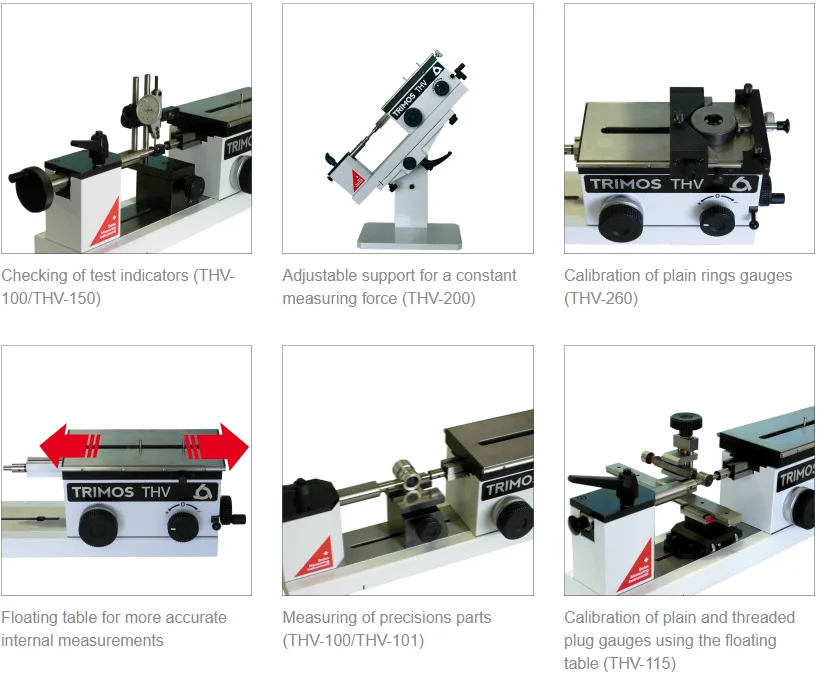

Example of applications:

Price

Price US$ \ 9500 ~ 16000 / Piece

Product Image

THV Calibration Bench for Calibration and Certification of Gauging Equipment of Small Dimension
