Trimos Labconcept Nano CH Horizontal Measuring Instrument

Add to Basket Share to :

Price

US$ 100000 ~ 170000

Min Order Quantity1 Unit
Payment Terms 7
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Trimos SA
Membership Free member
Registration Date2022.11.07
Country/RegionSwitzerland
CityRenens
Contact Katalin Bede(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name trimos
- Model Number labconcept nano
- Place of Origin Switzerland
- Supply Type In-Stock Items
- Condition New
- Color White
- Related Keywords laboratory bench, calibration bench, high precision, calibration system, swiss made

Description by Manufacturer

The Labconcept Nano is a new reference in the field of dimensional metrology. It integrates 40 years of knowledge and continuous improvement. It is a remarkable instrument for all measuring tasks that require extremely high accuracy.

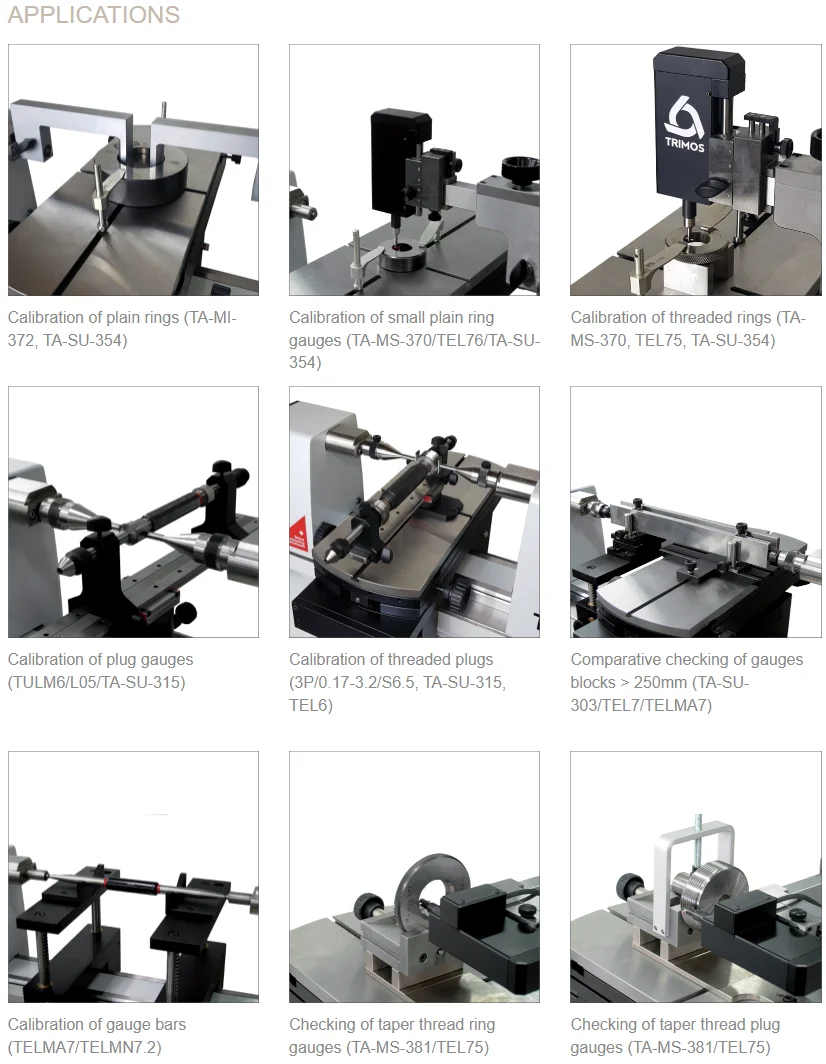

The uncompromising design of the Labconcept Nano offers an ideal and performing platform for checking and calibration of all kinds of gauges and measuring instruments. Checking of internal and external dimensions will be done as a fully automatic procedure by the three motorized axes XYZ and the legendary simplicity of use of Trimos WinDHI software.

The Labconcept Nano is completely designed and manufactured in Switzerland according to the highest quality standards. Robustness, reliability and longevity are our traditional values.

The Labconcept Nano combines tradition, experience and a strong technological lead. It integrates the latest measuring and motorisation technologies and can be considered as the first “full digital” calibration instrument. A regular PC controls all electronic components. This low-power solution avoids heating and keeps the energy, maintenance and repair costs at a reasonable level. The linear bearings used in all guideways have proven their superiority over all other technologies in terms of precision, wear, rigidity, temperature stability, reliability, dust protection and maintenance. They ensure exceptional repeatability and precision through time.

Unequalled level of accuracy
Exceptional repeatability
Motorized CNC axes X, Y and Z
Selection of displacement speed by software
Absolute measuring on all models: 350 mmApplication ranges: 350, 600 and 1100 mm
Measuring parts up to 60 kg
2 screens in standard package
CNC controlled measurement even on diameters and threads

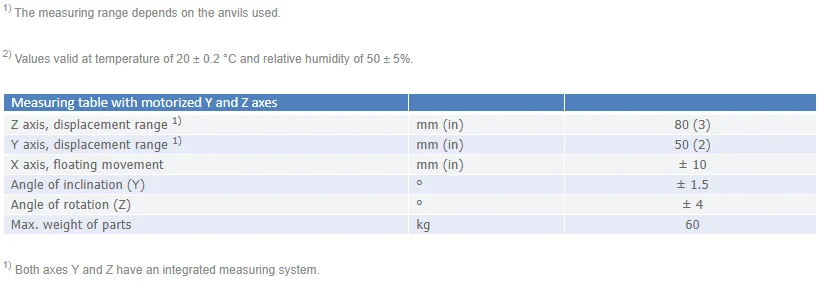

TECHNICAL SPECIFICATIONS

Labconcept Nano		350	600	1100
Application range ¹⁾	mm (in)	350 (13.2)	600 (23.6)	1100 (43.3)
Absolute measuring range	mm (in)	350 (13.2)
Max. permissible errors ²⁾	µm	0.07 + L(mm)/2000
Repeatability (2s) ²⁾	µm	0.03
Max. resolution	mm (in)	0.000001 (0.0000001)
Measuring force (adjustable by software)	N	0 ÷ 12
Operational temperature	°C	+15 ÷ +35
Temperature of storage	°C	-10 ÷ +40
Relative humidity	%	20 ÷ 80
Weight	kg	350	420	500

Price

Price US$ \ 100000 ~ 170000 / Unit

Product Image

Trimos Labconcept Nano CH Horizontal Measuring Instrument

Laboratory Bench Related Products

Related Products from premium suppliers on EC21

- Trimos SA is mainly exporting to China (Mainland), Asia, Europe, North America, South America, Australia, Africa

Download Product Brochure

gauges (1).pdf (7.63 Mb) Catralog_Calibration_benches.pdf (0.86 Mb) Catalog_Measuring_Benches.pdf (1.13 Mb) Brochure_C_Line.pdf (1.94 Mb) Line.pdf (2.84 Mb)
